Appliance Panel - Dishwasher Inset Design Applications

Door and Drawer Examples - Undercounter

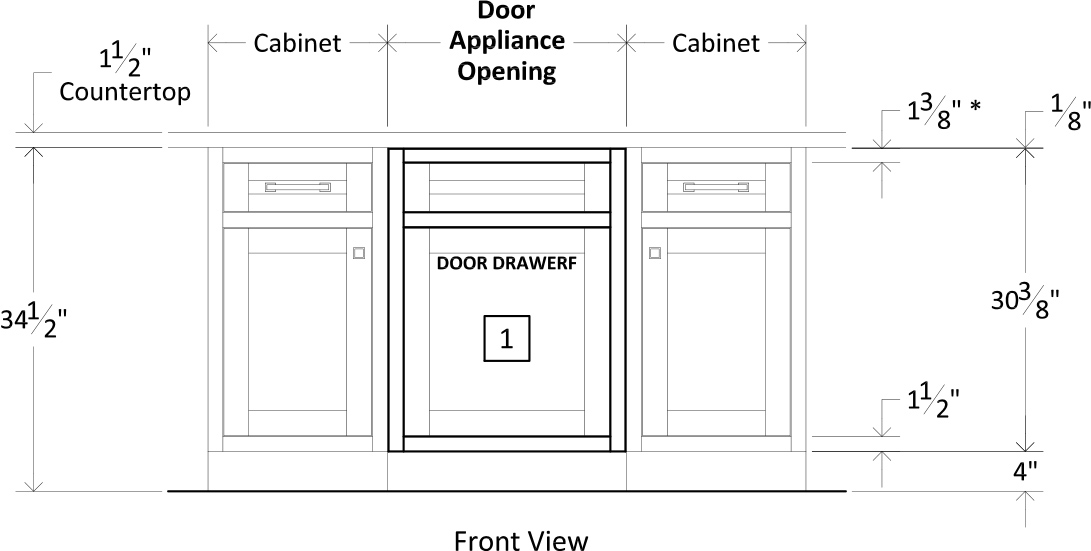

Specsheet App Panel Dish Da 1

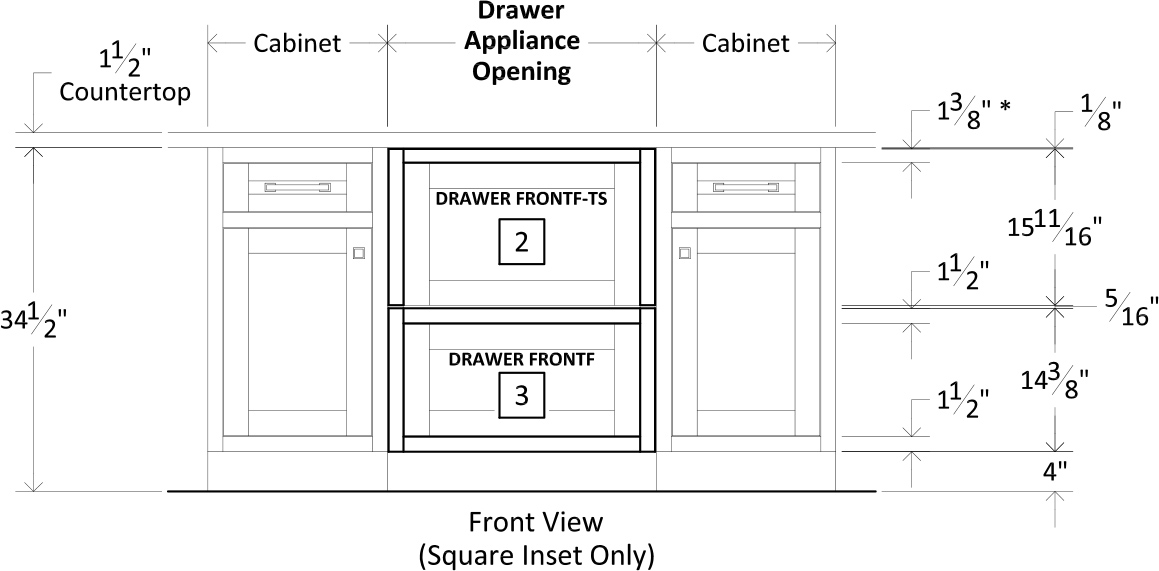

Specsheet App Panel Dish Da 2

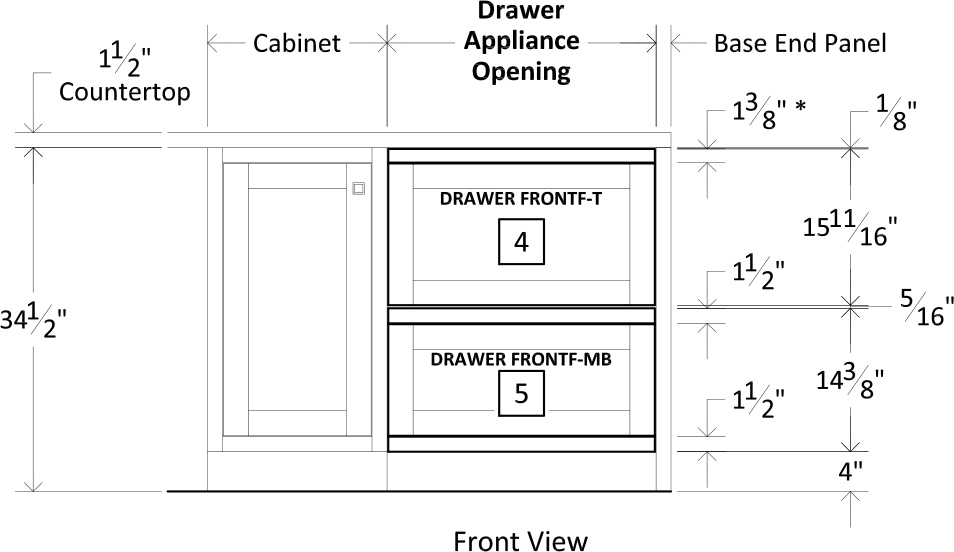

Specsheet App Panel Dish Da 3
No. Item Code Construction Overlay
1 DOOR DRAWERF Framed Inset
2 DRAWER FRONTF-TS Framed Inset
3 DRAWER FRONTF Framed Inset
4 DRAWER FRONTF-T Framed Inset
5 DRAWER FRONTF-MB Framed Inset

Design Notes

  • Finished Two Sides and All Edges
  • Order Spacer (SPACER) and Backer (PUV1/4) Panels Separately if Required

Design Tip

  • * Top Face Frame Rail can be Reduced with Wide Rail Top Modification (WRT) to Maintain Drawer Front Alignment with Adjacent Cabinet(s)
  • Left and Right Face Frame Stiles can be Reduced with Wide Stile Left Modification (WSL) and Wide Stile Right Modification (WSR) to Maintain Door/Drawer Front Alignment with Adjacent Cabinet(s)
