Appliance Panel - Dishwasher Spec

Door Application Examples - Undercounter

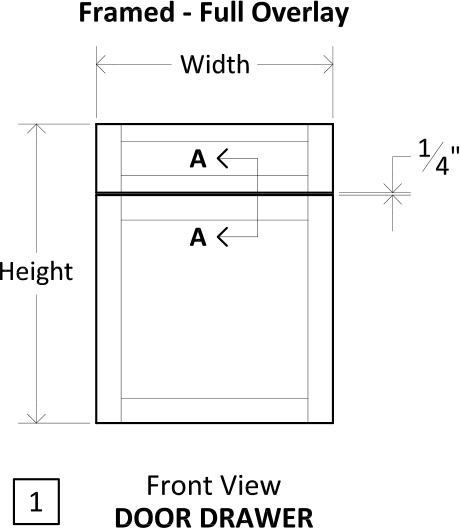

Specsheet App Panel Dish Door 1

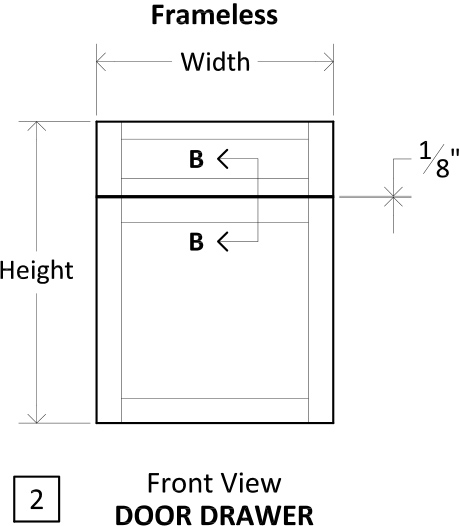

Specsheet App Panel Dish Door 2

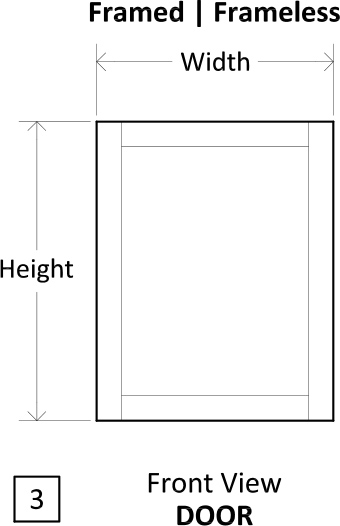

Specsheet App Panel Dish Door 3

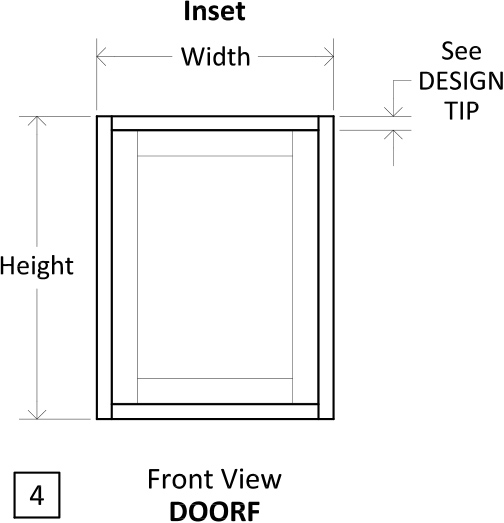

Specsheet App Panel Dish Door 4

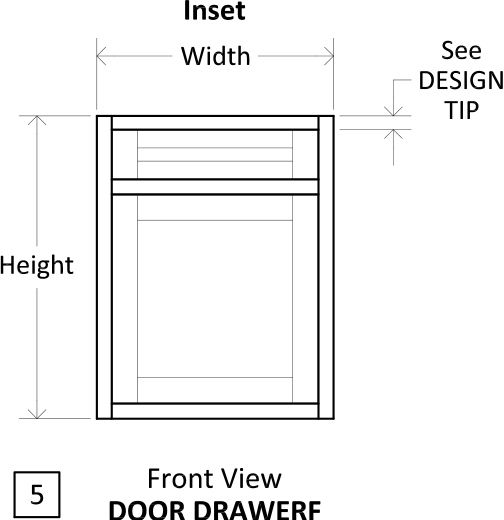

Specsheet App Panel Dish Door 5

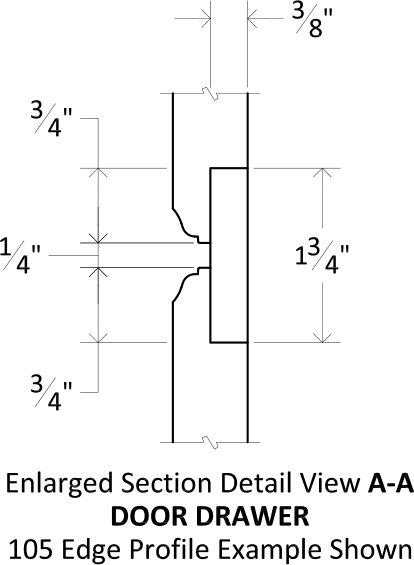

Specsheet App Panel Dish Door 6

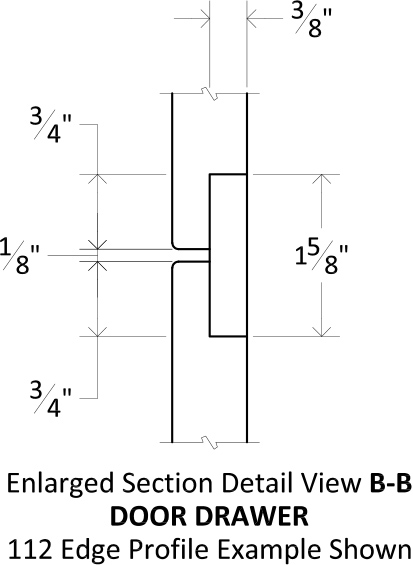

Specsheet App Panel Dish Door 7

No.	Item Code	Construction	Overlay
1	DOOR DRAWER	Framed	Full
2	DOOR DRAWER	Frameless	Full
3	DOOR	Framed \| Frameless	Full
4	DOORF	Framed	Inset
5	DOOR DRAWERF	Framed	Inset

Design Notes

Finished Two Sides and All Edges
Order Spacer (SPACER) and Backer (PUV1/4) Panels Separately if Required

Design Tip

Top Face Frame Rail can be Reduced with Wide Rail Top Modification (WRT) to Maintain Door/Drawer Front Alignment with Adjacent Cabinet(s)

Drawer Application Examples - Undercounter

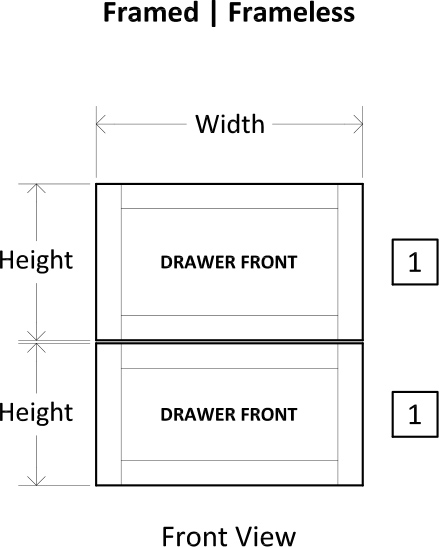

Specsheet App Panel Dish Drawer 1

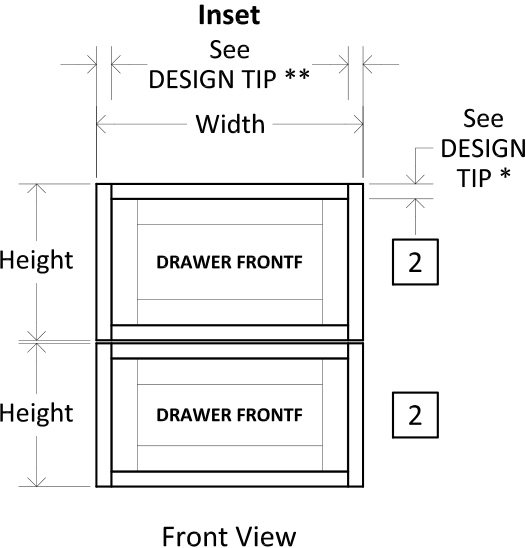

Specsheet App Panel Dish Drawer 2

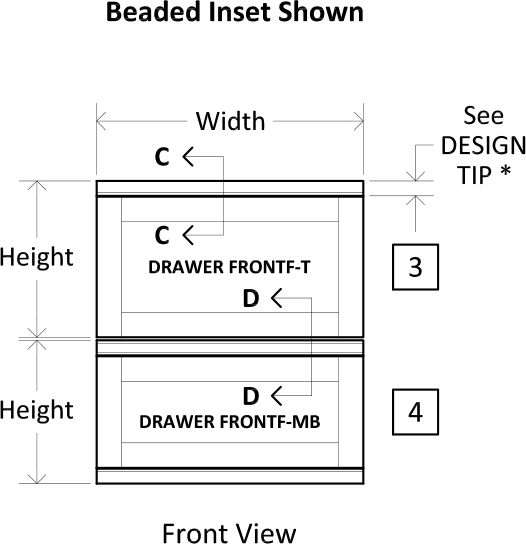

Specsheet App Panel Dish Drawer 3

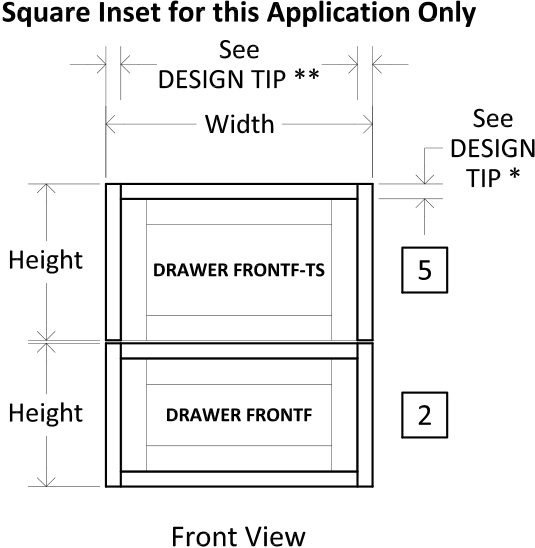

Specsheet App Panel Dish Drawer 4

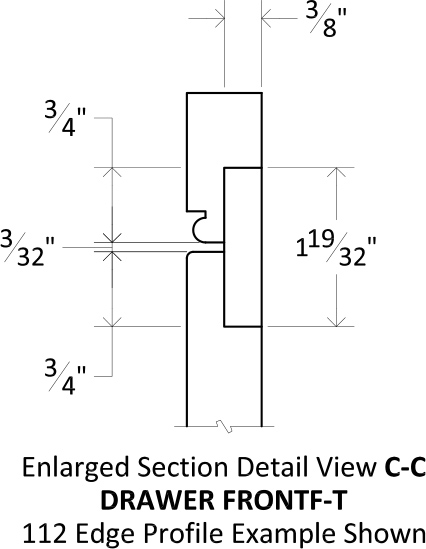

Specsheet App Panel Dish Drawer 5

Specsheet App Panel Dish Drawer 6

No.	Item Code	Construction	Overlay
1	DRAWER FRONT	Framed \| Frameless	Full
2	DRAWER FRONTF	Framed	Inset
3	DRAWER FRONTF-T	Framed	Inset
4	DRAWER FRONTF-MB	Framed	Inset
5	DRAWER FRONTF-TS	Framed	Inset

Design Notes

Finished Two Sides and All Edges
Order Spacer (SPACER) and Backer (PUV1/4) Panels Separately if Required

Design Tip

* Top Face Frame Rail can be Reduced with Wide Rail Top Modification (WRT) to Maintain Drawer Front Alignment with Adjacent Cabinet(s)
** Left and Right Face Frame Stiles can be Reduced with Wide Stile Left Modification (WSL) and Wide Stile Right Modification (WSR) to Maintain Drawer Front Alignment with Adjacent Cabinet(s)
