Appliance Panel - Wine Storage Spec

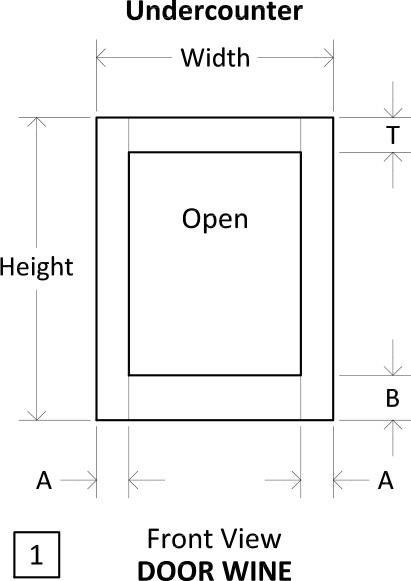

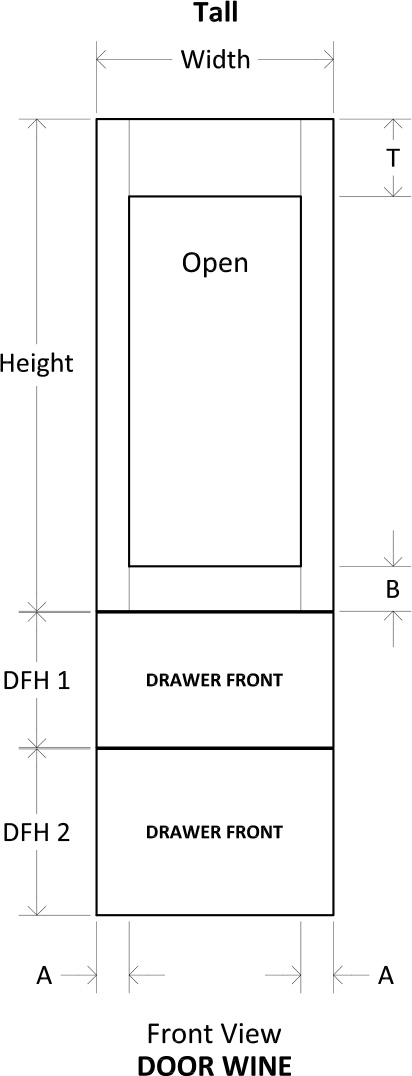

Door Application Examples - Frame Only - Undercounter | Tall | Column
| No. |
Item Code |
Stile Width (A) |
Top Rail Width (T) |
Bottom Rail Width (B) |
| 1 |
DOOR WINE |
Specify |
Specify |
Specify |
Design Notes
- Includes Inside Door Frame Profile and Outside Edge Profile Specified on Order
- Finished Two Sides and All Edges

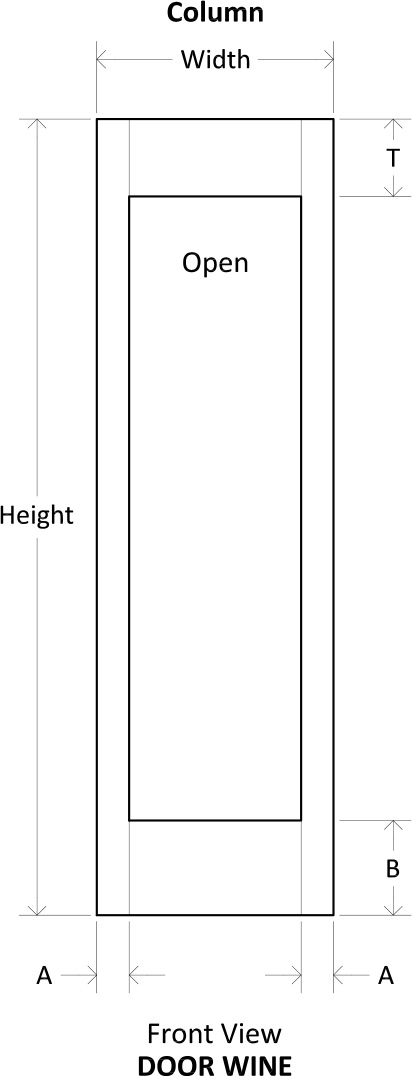

- Center of Door is Open for View to Glass Door on Wine Storage Appliance
- Specify Stile Width, Top Rail Width and Bottom Rail Width
- Drawer Fronts Shown for Reference Only

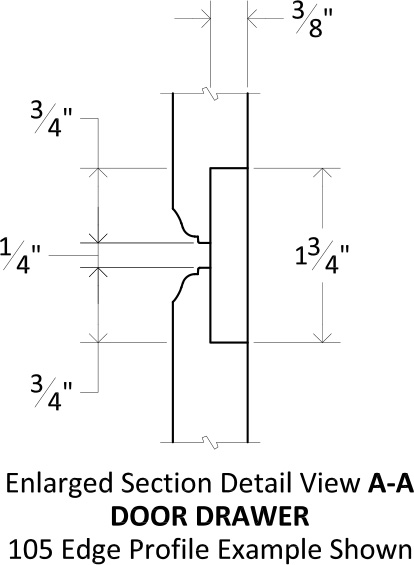

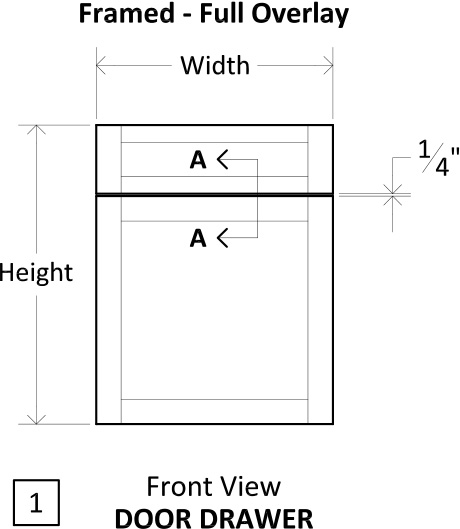

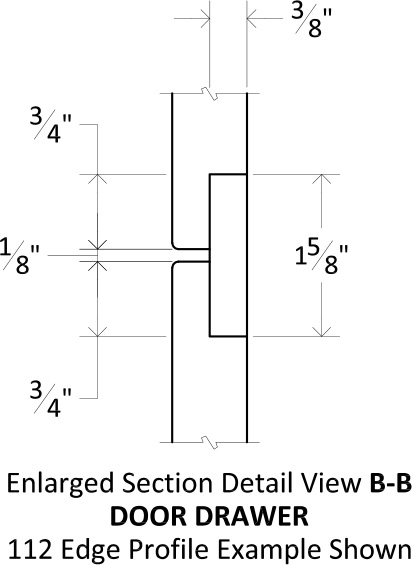

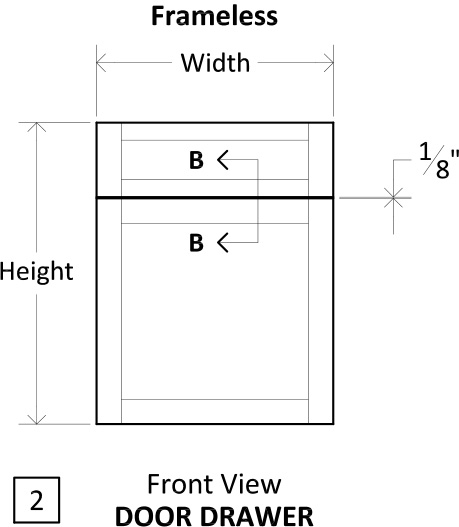

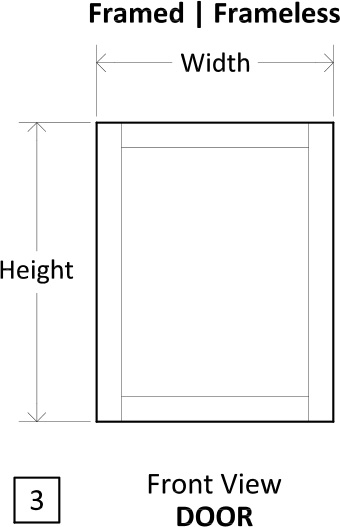

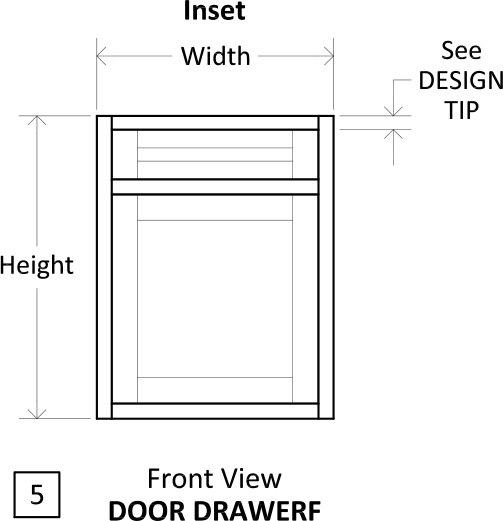

Door Application Examples - Frame and Panel - Undercounter
| No. |
Item Code |
Construction |
Overlay |
| 1 |
DOOR DRAWER |
Framed |
Full |
| 2 |
DOOR DRAWER |
Frameless |
Full |
| 3 |
DOOR |
Framed | Frameless |
Full |
| 4 |
DOORF |
Framed |

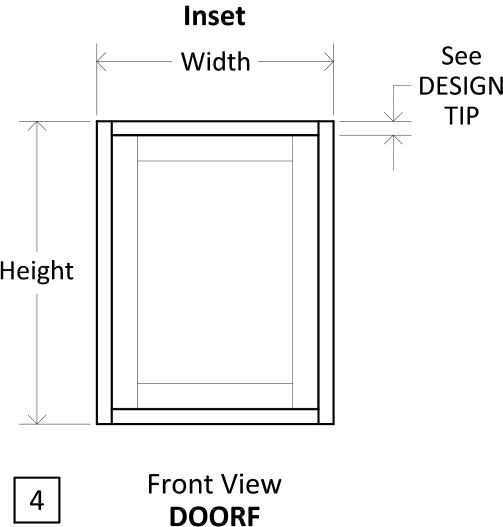

Inset |
| 5 |
DOOR DRAWERF |
Framed |
Inset |
Design Notes
- Finished Two Sides and All Edges
- Order Spacer (SPACER) and Backer (PUV1/4) Panels Separately if Required
Design Tip
- Top Face Frame Rail can be Reduced with Wide Rail Top Modification (WRT) to Maintain Door/Drawer Front Alignment with Adjacent Cabinet(s)
