Cabinet Pullout and Storage Components - Base Spec

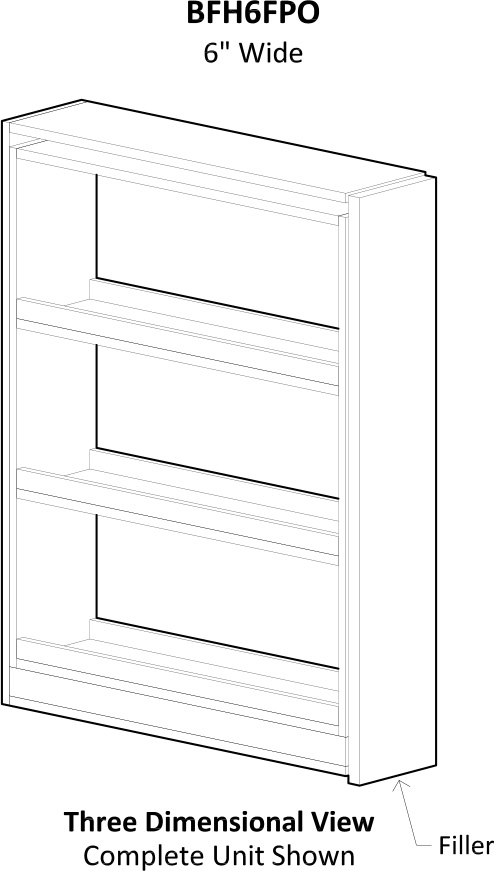

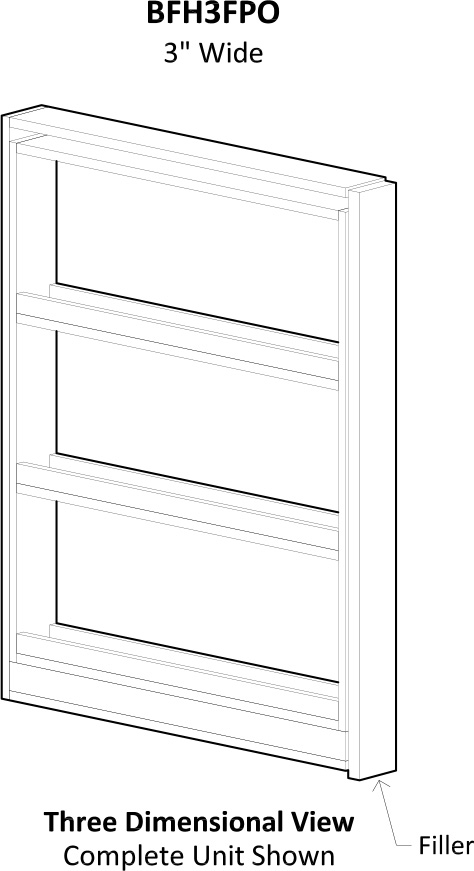

Full Height - Filler Pullout Organizer - No Cabinet - Framed | Frameless
Design Notes
- Pullout Front is a Solid Wood Filler
- Pullout Features: Natural Maple or Birch, Adjustable Shelves, Full Extension Slides
- Pullout Height: 30"
- Pullout Depth: 23"

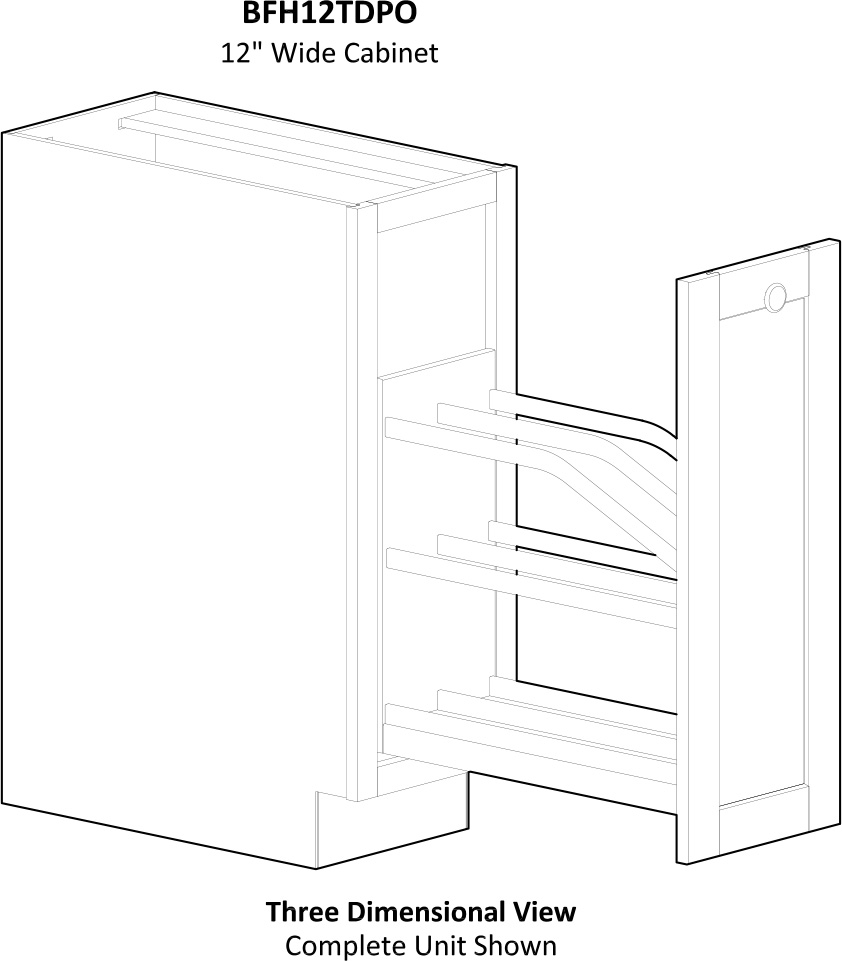

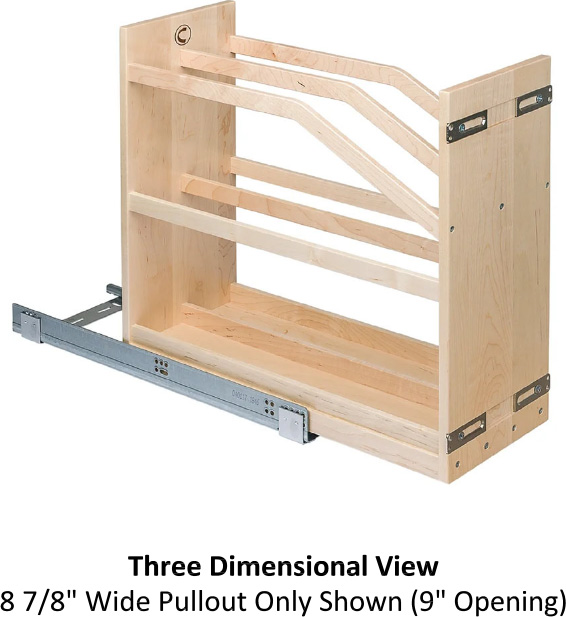

Full Height Door - Tray Divider Pullout - Framed
Design Notes
- Pullout Features: Natural Maple or Birch, Soft-Close 100 lb Rated Slides with Floor Mount Brackets
- Pullout Tray Slot Quantity: 2 in 9" and 12" Wide Cabinets, 3 in 15" Wide Cabinets
- Pullout Height: 20"
- Pullout Depth: 21 1/2"

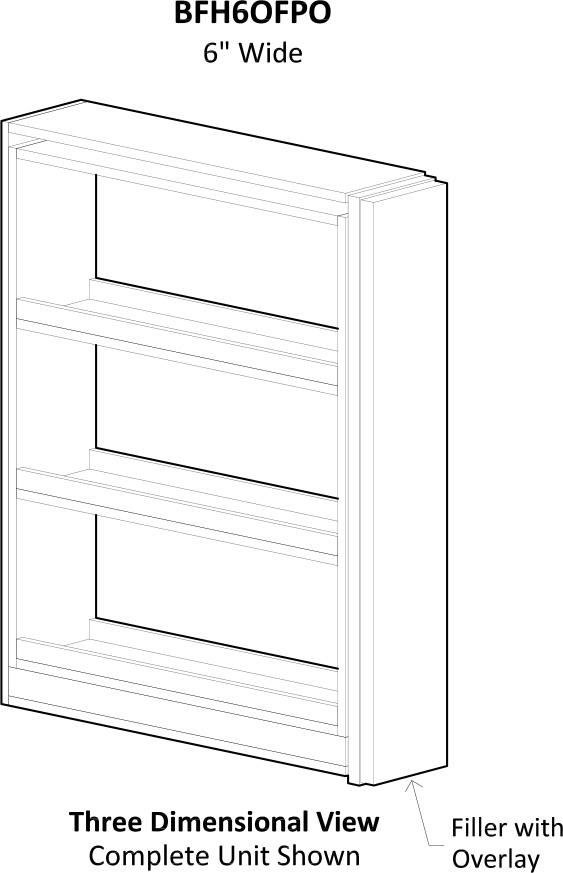

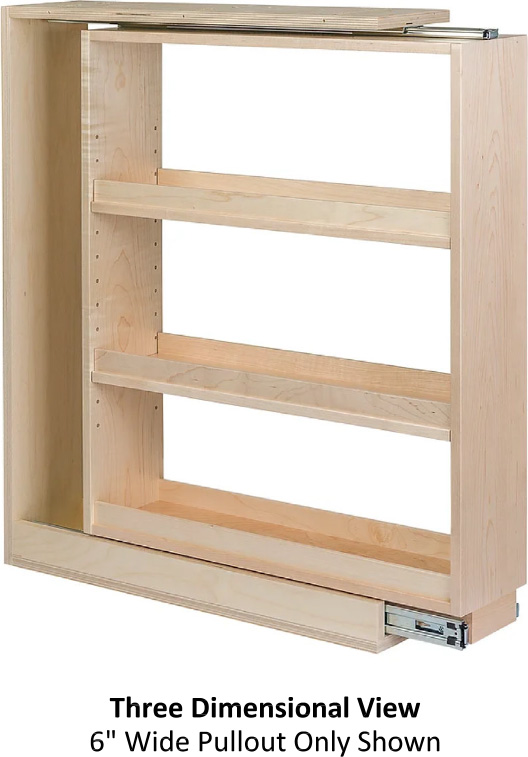

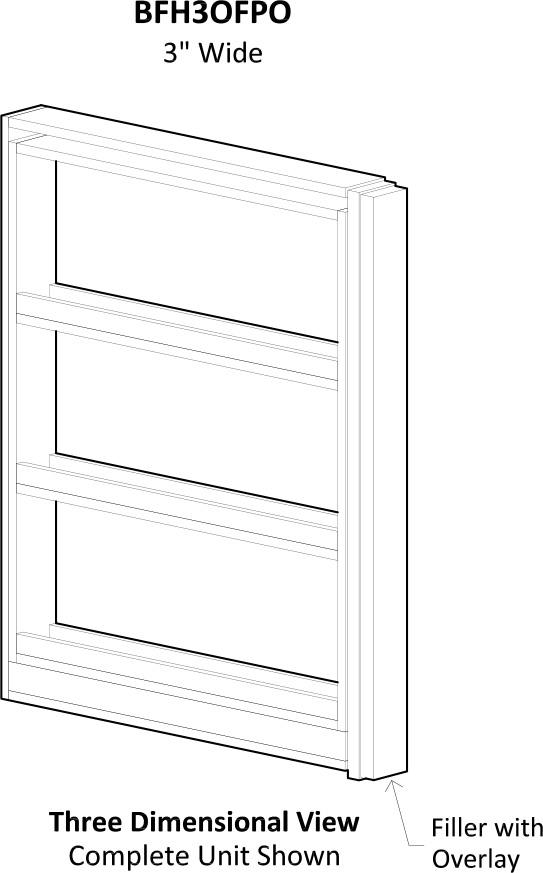

Full Height - Overlay Filler Pullout Organizer - No Cabinet - Framed | Frameless
Design Notes
- Pullout Front is a Solid Wood Filler with Overlay Attached
- Pullout Features: Natural Maple or Birch, Adjustable Shelves, Full Extension Slides
- Pullout Height: 30"
- Pullout Depth: 23"

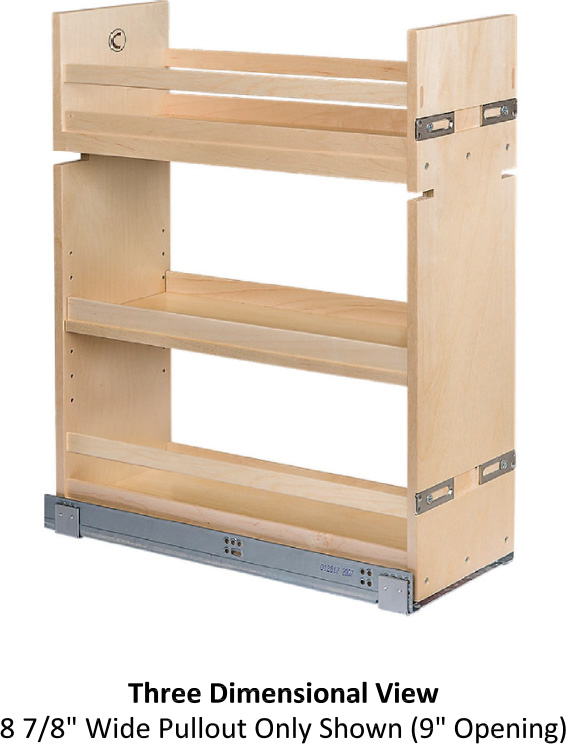

Full Height Door - Spice Rack Pullout - Framed
Design Notes
- Pullout Features: Natural Maple or Birch, Soft-Close 100 lb Rated Slides with Floor Mount Brackets
- Cabinet Widths Available: 7" | 8" | 9" | 12" | 15"
- Pullout Height: 26 3/4"
- Pullout Depth: 21 1/2"

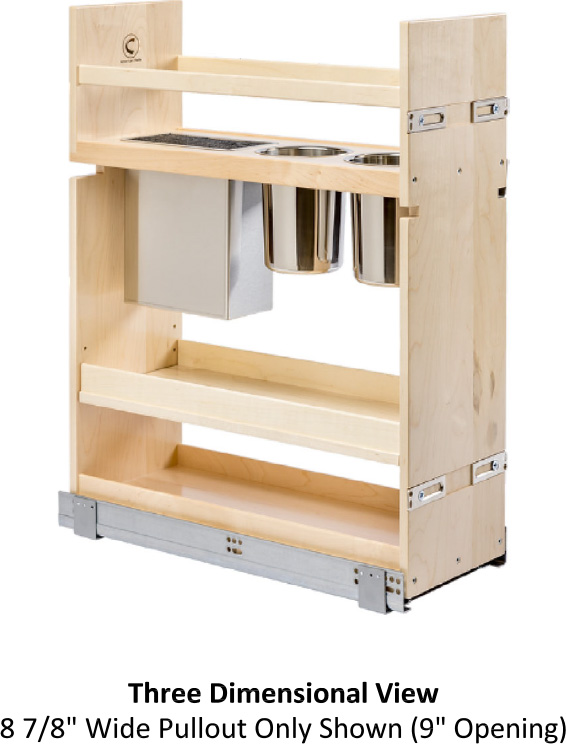

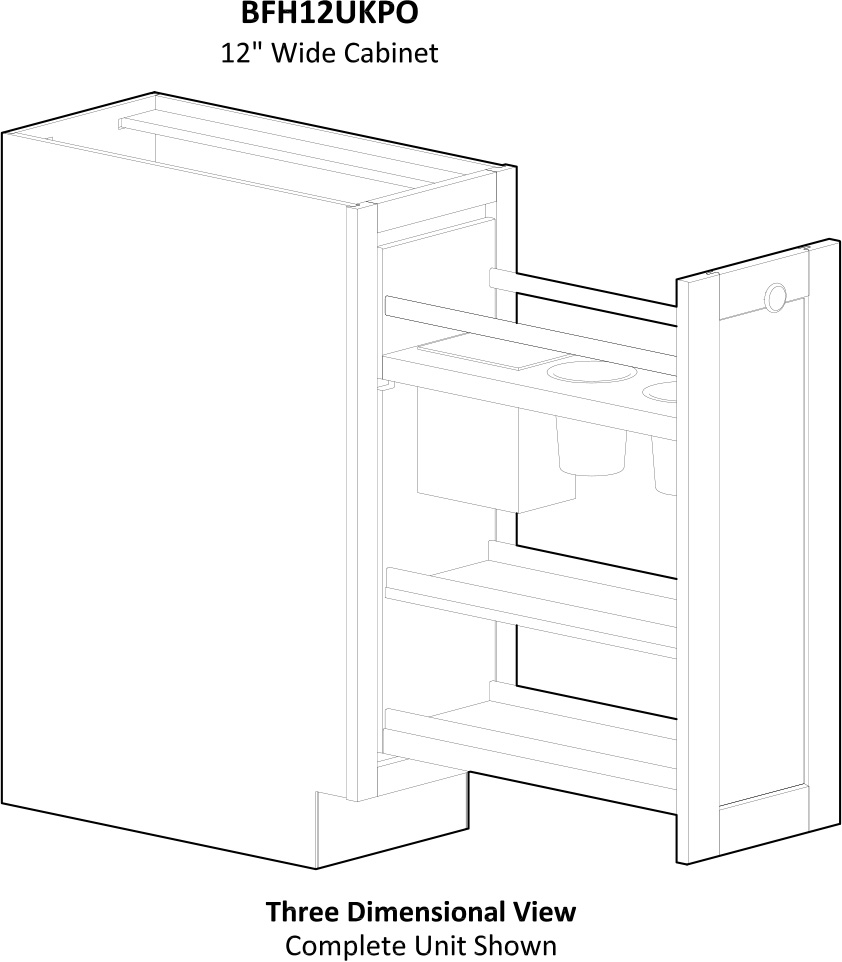

Full Height Door - Utensil Bins and Knife Block Pullout - Framed
Design Notes
- Pullout Features: Natural Maple or Birch, Adjustable Middle Shelf, Soft-Close 100 lb Rated Slides with Floor Mount Brackets
- Pullout Utensil Bin Quantity: 2 in 9" and 12" Wide Cabinets, 3 in 15" Wide Cabinets
- Pullout Height: 26 3/4"
- Pullout Depth: 21 1/2"

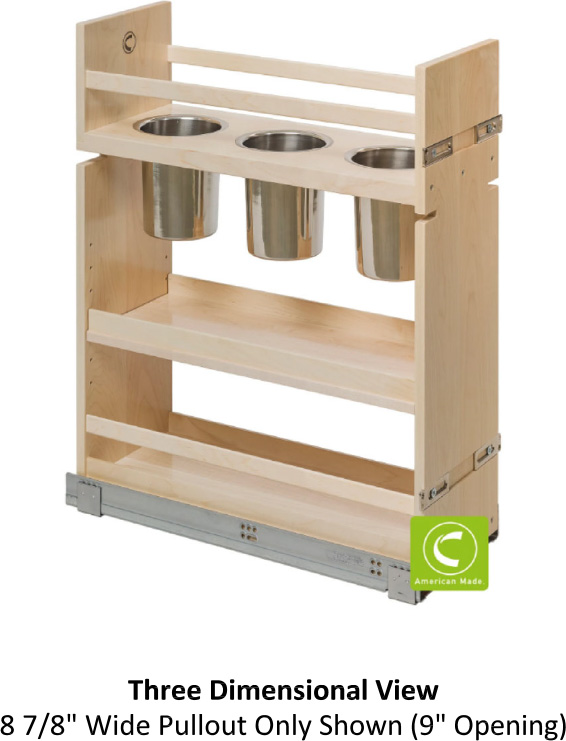

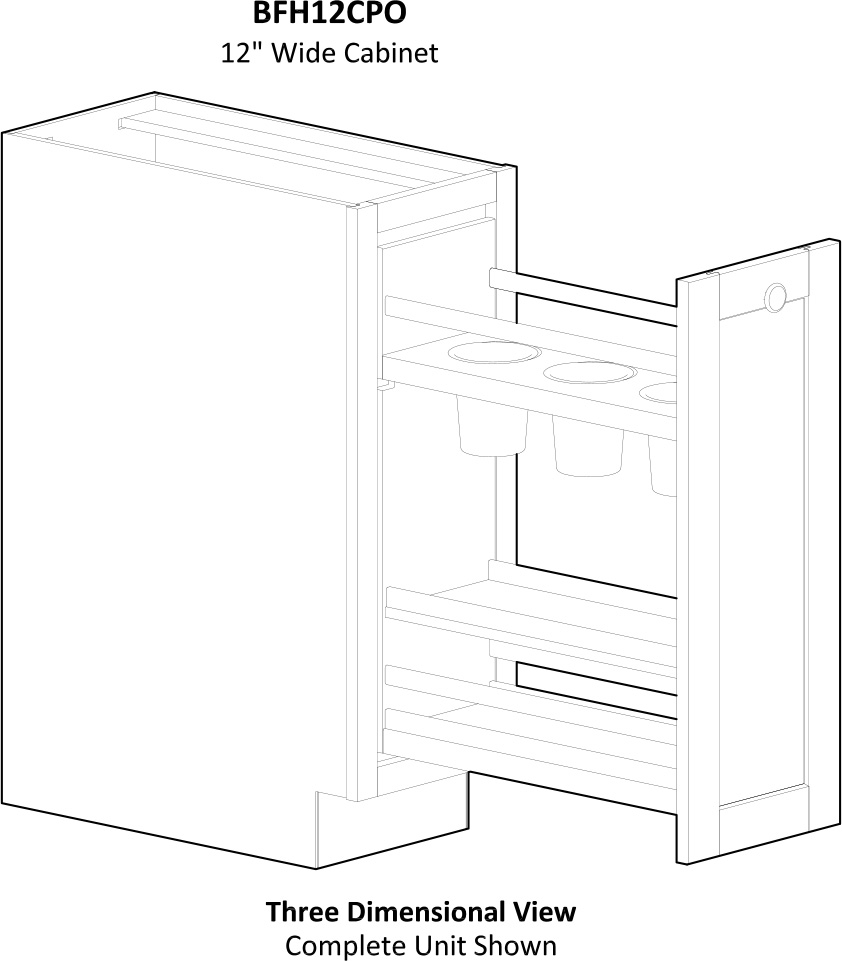

Full Height Door - Canister Organizer Pullout - Framed
Design Notes
- Pullout Features: Natural Maple or Birch, Adjustable Middle Shelf, Soft-Close 100 lb Rated Slides with Floor Mount Brackets
- Pullout Utensil Bin Quantity: 3 in 9" and 12" Wide Cabinets, 5 in 15" Wide Cabinets
- Pullout Height: 26 3/4"
- Pullout Depth: 21 1/2"

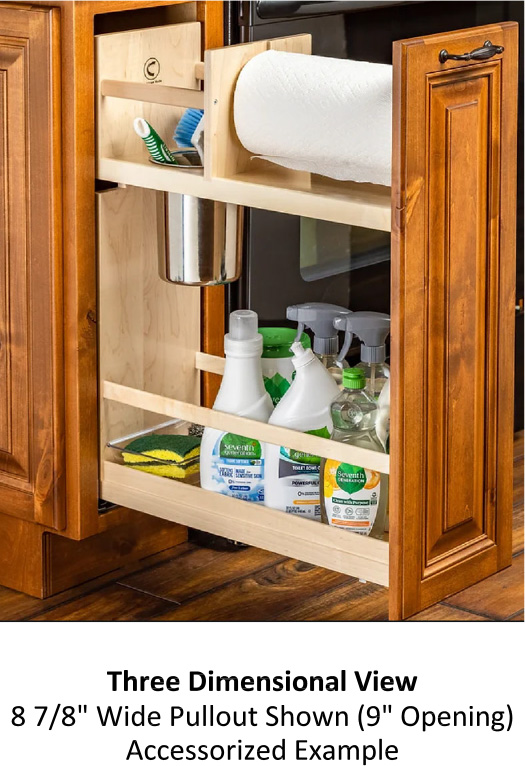

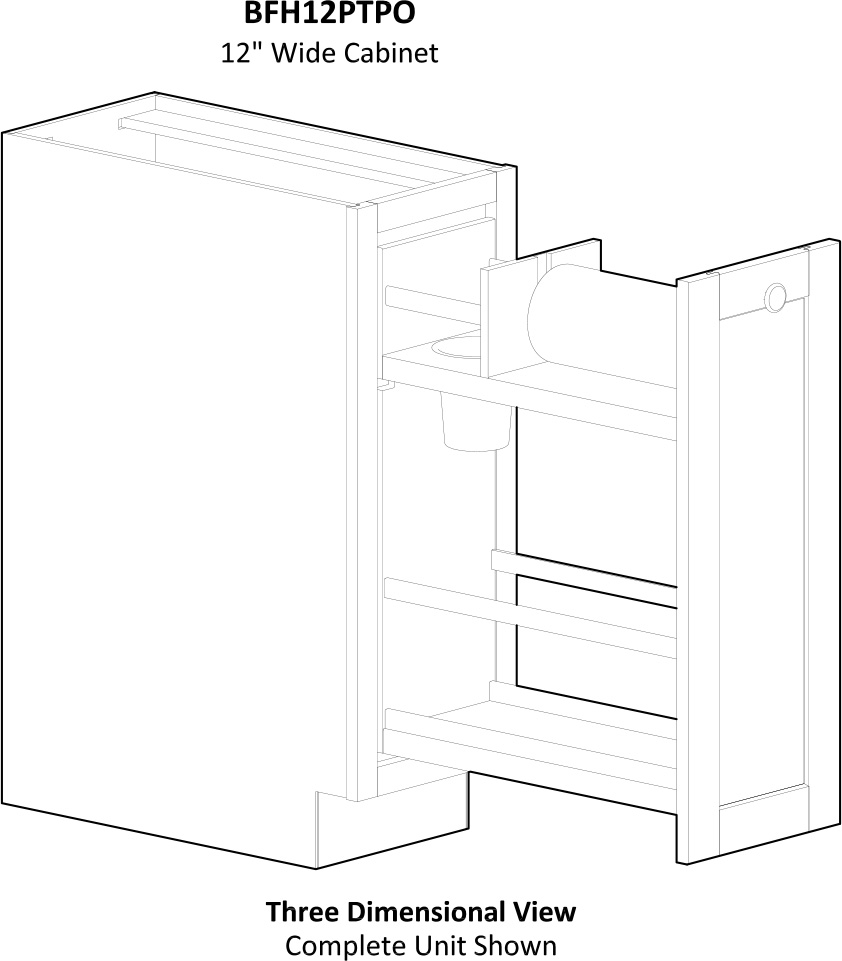

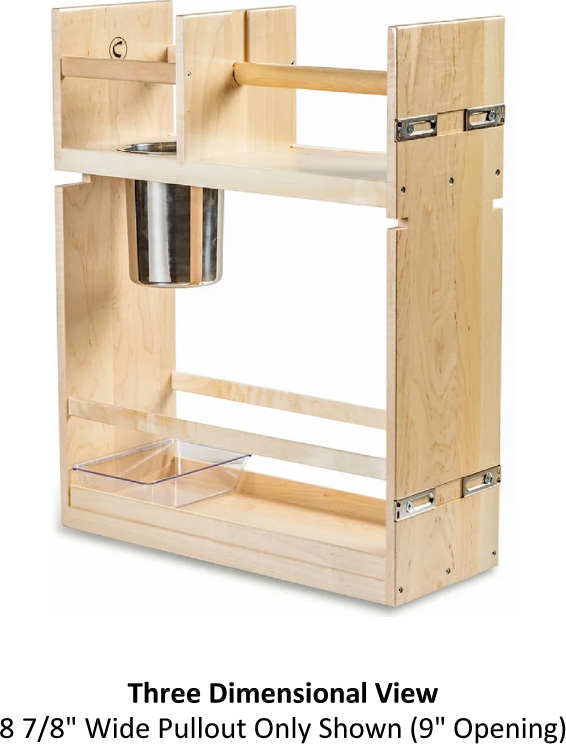

Full Height Door - Paper Towel Organizer Pullout - Framed
Design Notes
- Pullout Features: Natural Maple or Birch, Stainless Steel Brush Tub and Plastic Tray, Soft-Close 100 lb Rated Slides with Floor Mount Brackets
- Pullout Height: 26 3/4"
- Pullout Depth: 21 1/2"

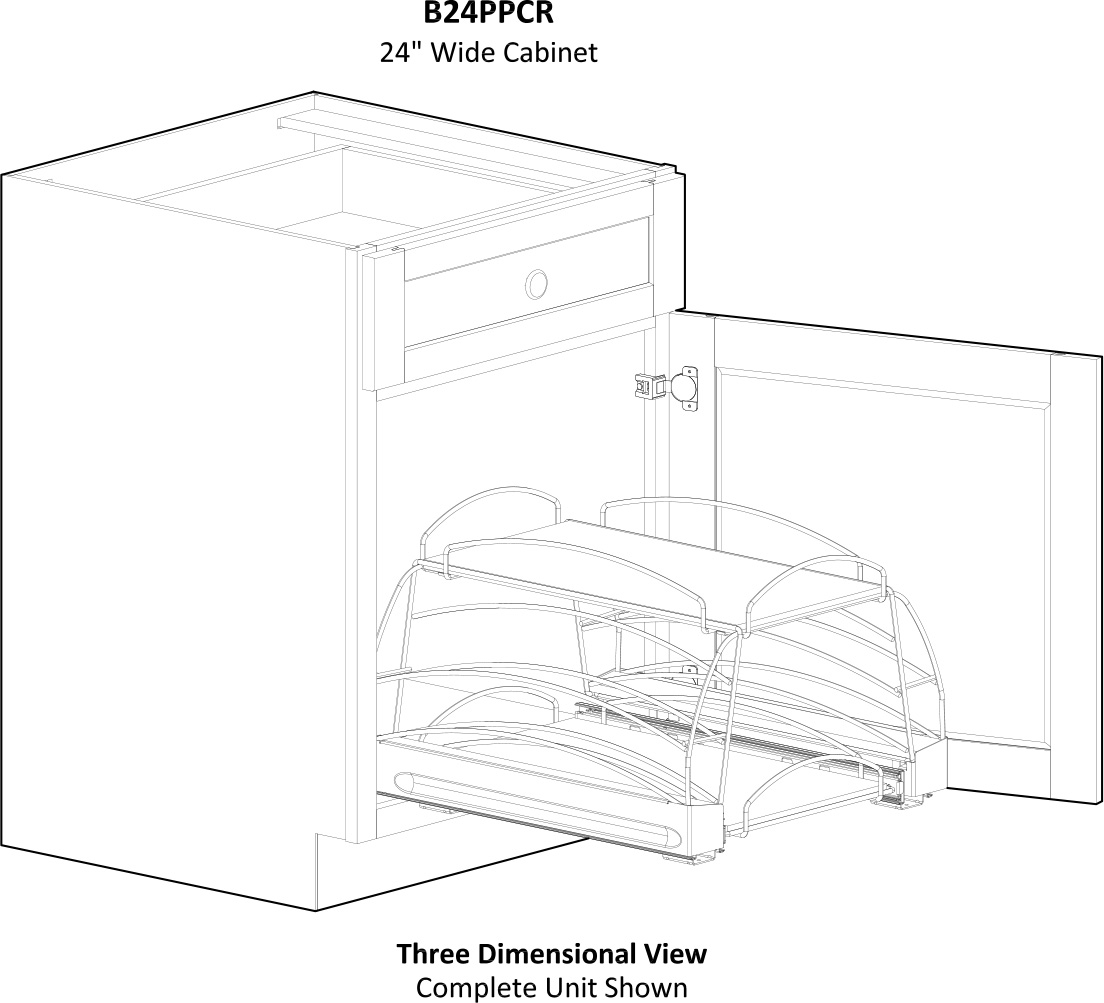

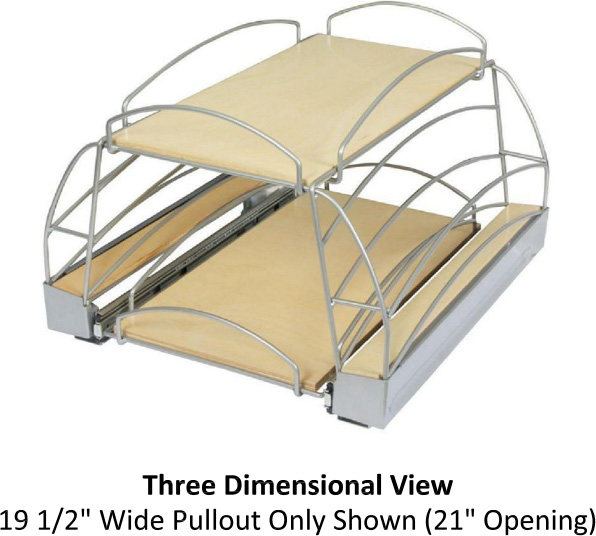

One Door - One Drawer - Pot and Pan Caddy - Framed
Design Notes
- Pullout Features: Natural Birch Veneer Platforms, Contoured Skirting and Frosted Nickel Wire Fencing, Two Separate Pullout Sections, Full Extension 100 lb Rated Slides, Unit is Floor Mounted with Only 4 Screws
- Pullout Height: 14 1/4"
- Pullout Depth: 22 1/4"

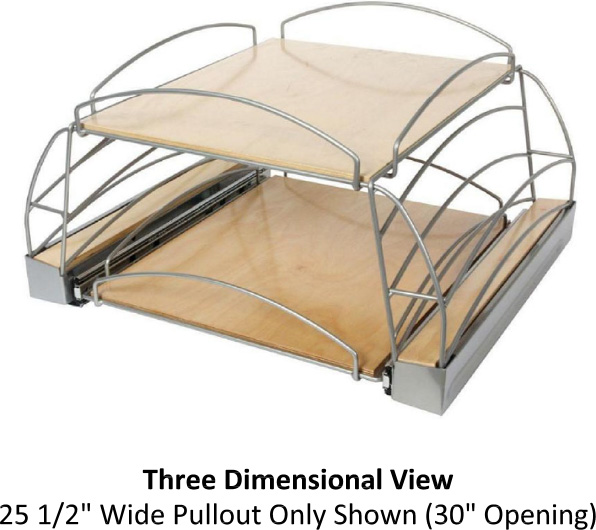

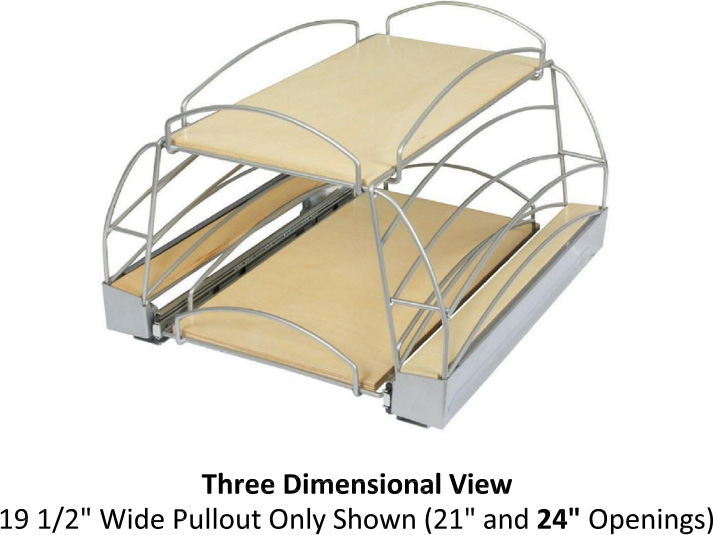

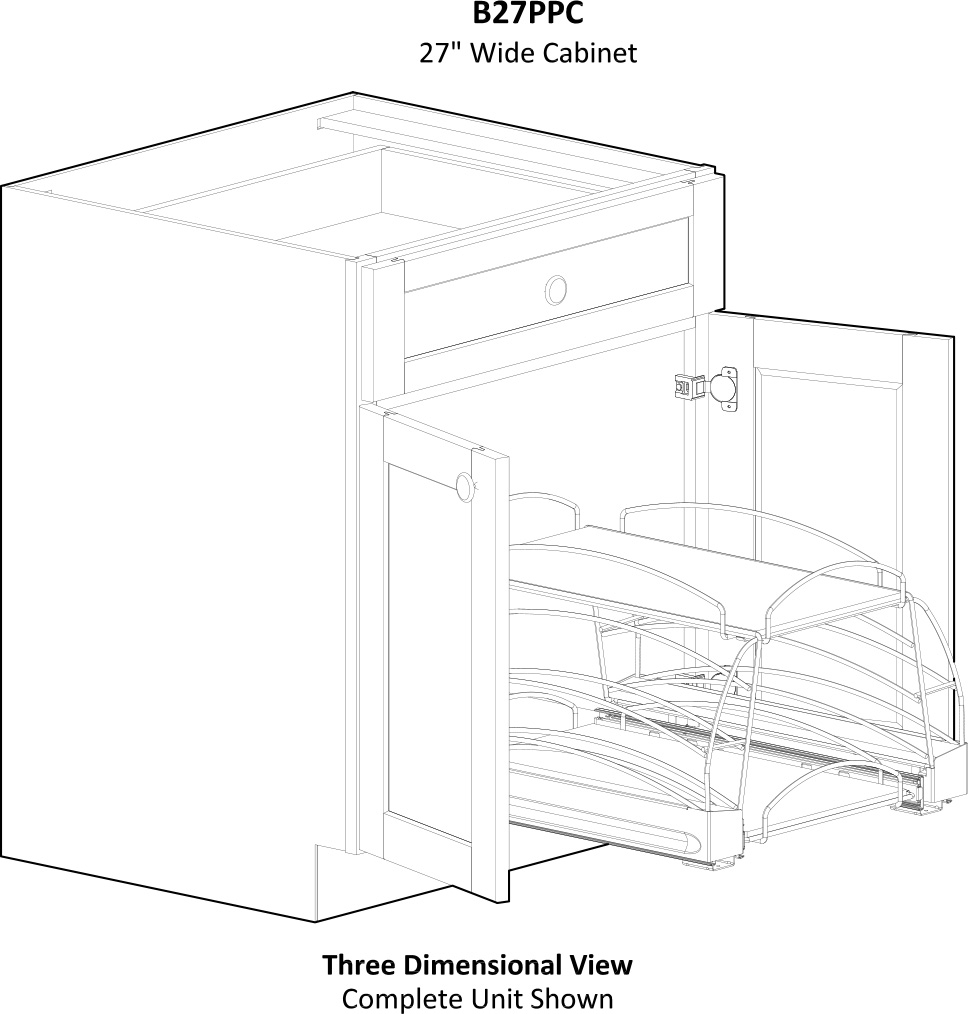

Two Door - One Drawer - Pot and Pan Caddy - Framed
Design Notes
- Pullout Features: Natural Birch Veneer Platforms, Contoured Skirting and Frosted Nickel Wire Fencing, Two Separate Pullout Sections, Full Extension 100 lb Rated Slides, Unit is Floor Mounted with Only 4 Screws
- Pullout Tray Width: 19 1/2" in 24" and 27" Wide Cabinets, 25 1/2" in 33" Wide Cabinets
- Pullout Height: 14 1/4"
- Pullout Depth: 22 1/4"
