Corner Blind Wall Cabinet Design Applications
One Door - Top View

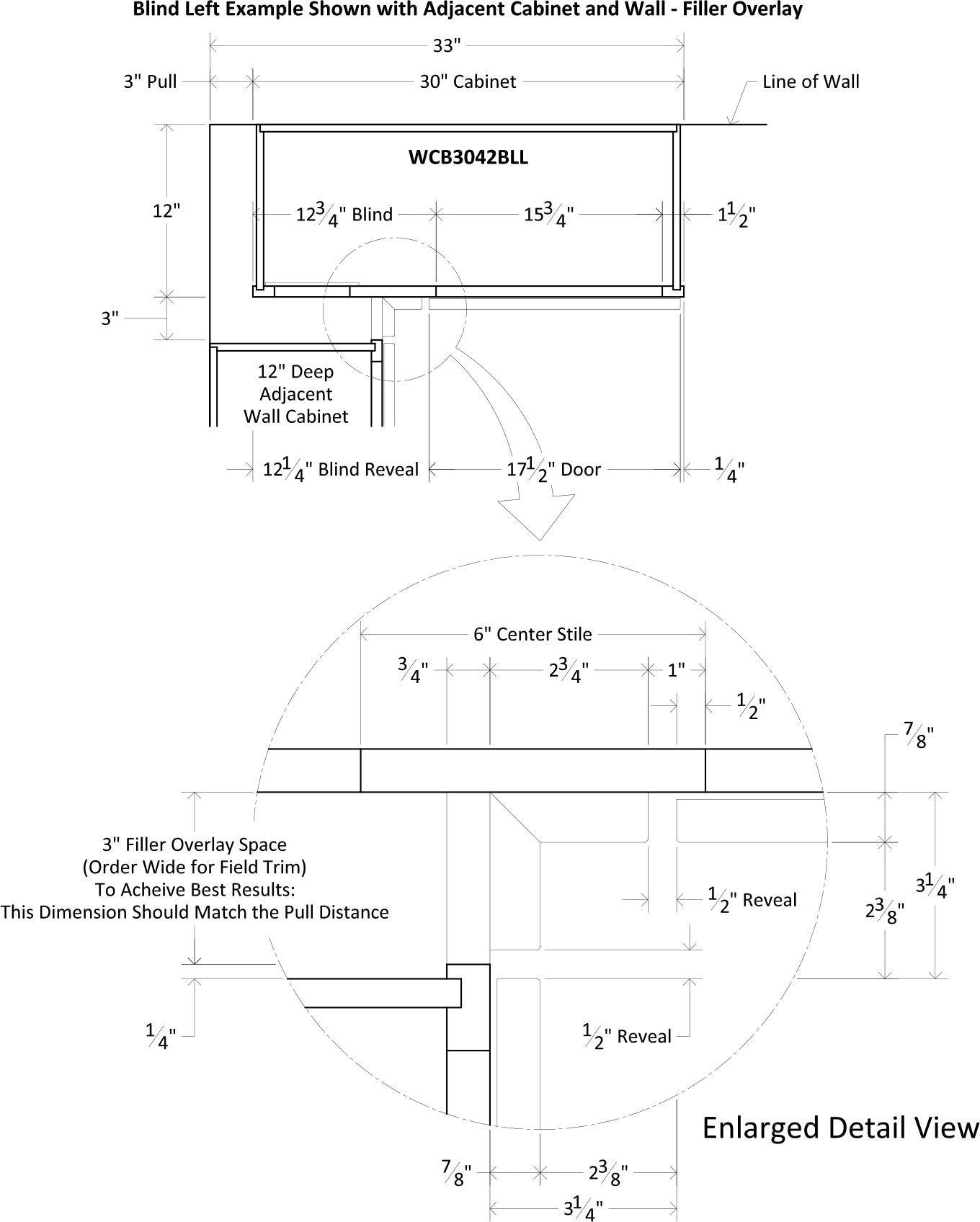

Framed - Full Overlay
Design Notes
- 3" Pull Recommended (2" Minimum, 4" Maximum)
- 3" Pull and 3" Filler Overlay Space Recommended (Order Filler Overlay Wide for Field Trim)
- 4" Wide Overlay Shipped with Cabinet

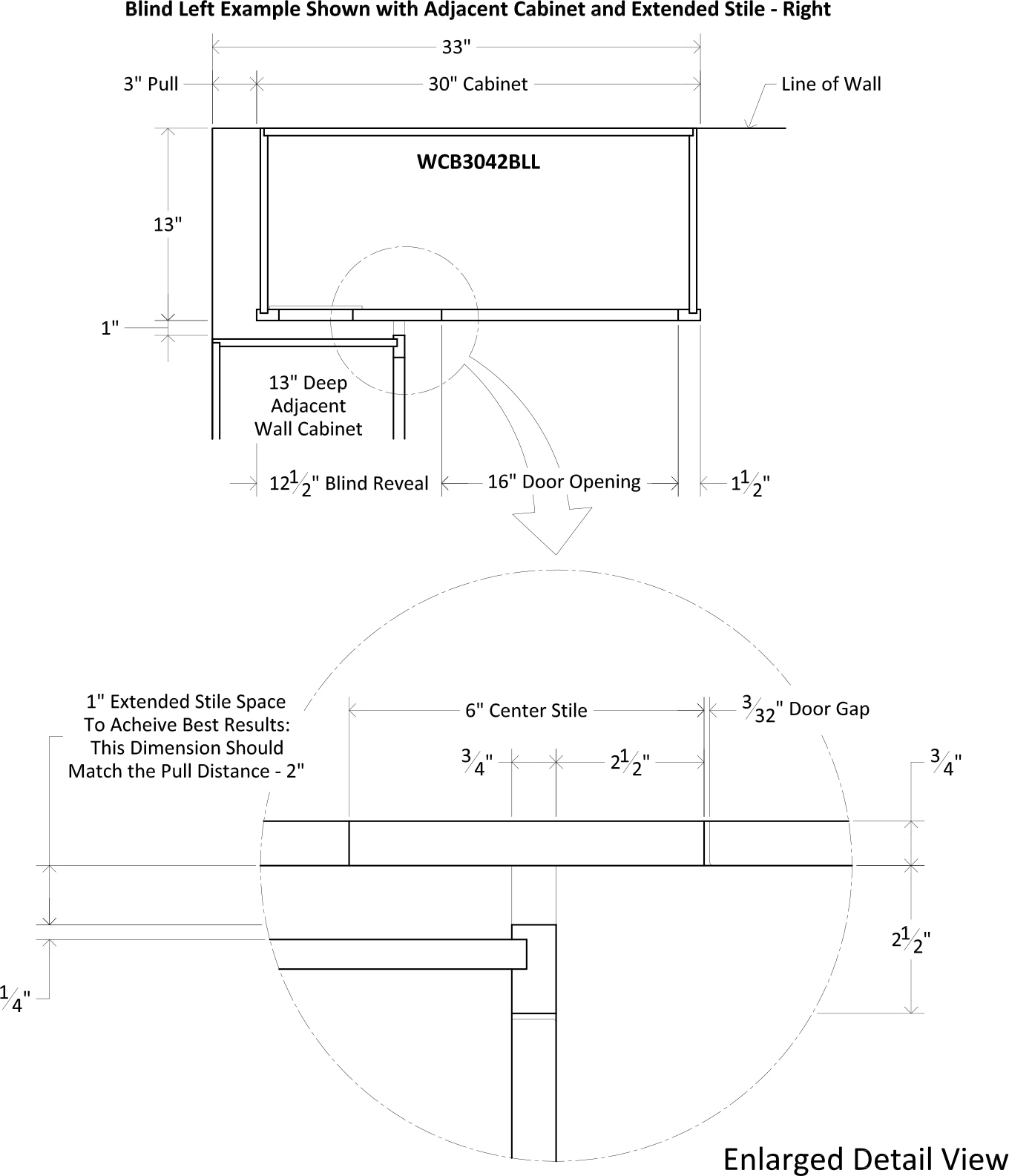

Framed - Inset
Design Notes
- 3" Pull Recommended (2" Minimum, 4" Maximum)
- 3" Pull and 1" Extended Stile Space Recommended (Extended Stile = Pull Distance - 2")
- Framed - Inset Wall Cabinets are 13" Deep

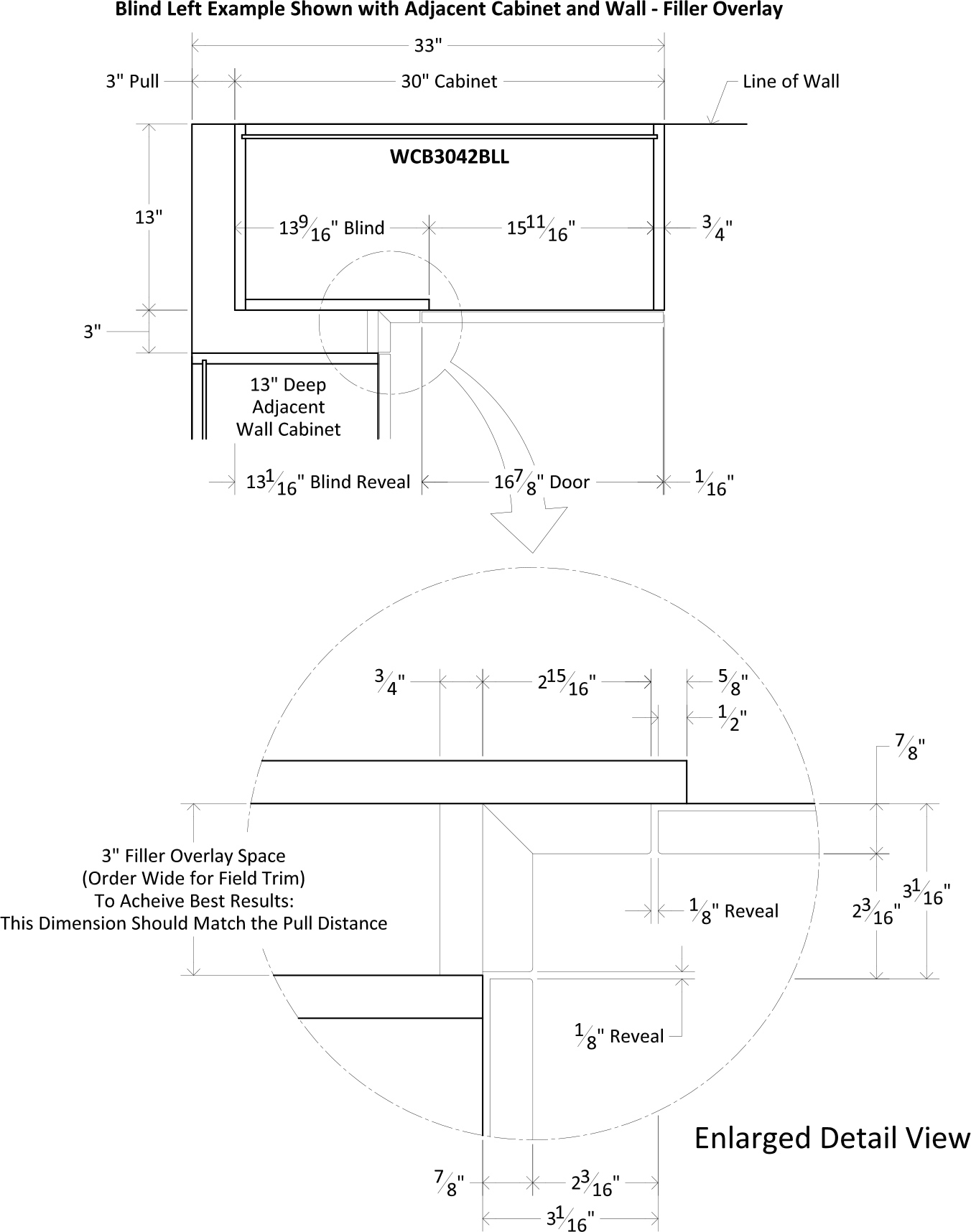

Frameless
Design Notes
- 3" Pull Recommended (2" Minimum, 4" Maximum)
- 3" Pull and 3" Filler Overlay Space Recommended (Order Filler Overlay Wide for Field Trim)
- 4" Wide Overlay Shipped with Cabinet
