Dimensional Tolerances Spec

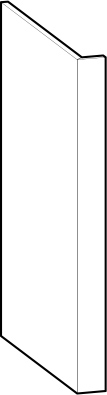

Specsheet Dimensional Machined — Machined Assemblies
+/- 1/32"

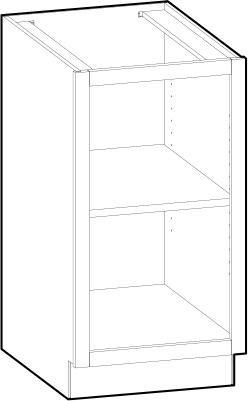

Specsheet Dimensional Cabinets — Cabinets
+/- 1/16"

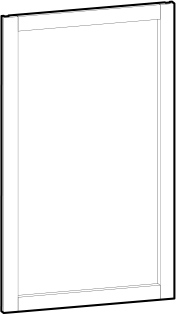

Specsheet Dimensional Face Frames — Face Frames
+/- 1/32"

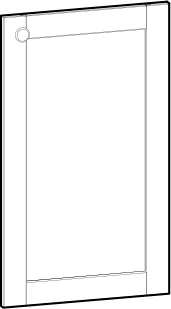

Specsheet Dimensional Doors — Doors and Drawer Fronts
+/- 1/32"

Specsheet Dimensional Drawers — Drawers Boxes and Rollouts
+/- 1/32"

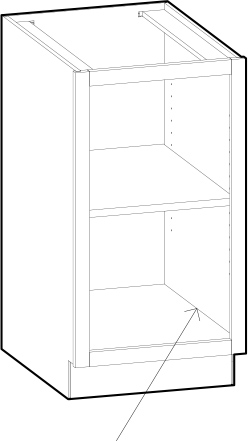

Specsheet Dimensional Gap — Interior Material Gap
+/- .040" or 1.0 mm

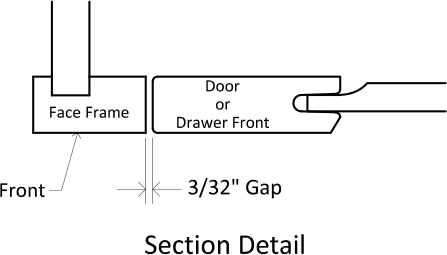

Specsheet Dimensional Section Detail — Inset Door and Drawer Front Gaps
+/- 1/32"

Design Notes

Cabinets in a Run May Have a Tolerance Accumulation that is up to +/- 1/16" Per Cabinet - Plan Accordingly by Incorporating Extended Stiles, Fillers, Panels, or Other Trimmable Elements into the Design
Inset Doors and Drawer Fronts may be Adjusted up to 1/32" to Optimize the Consistency of the Gap Between the Doors and Drawer Fronts and Face Frames
