Filler Spec

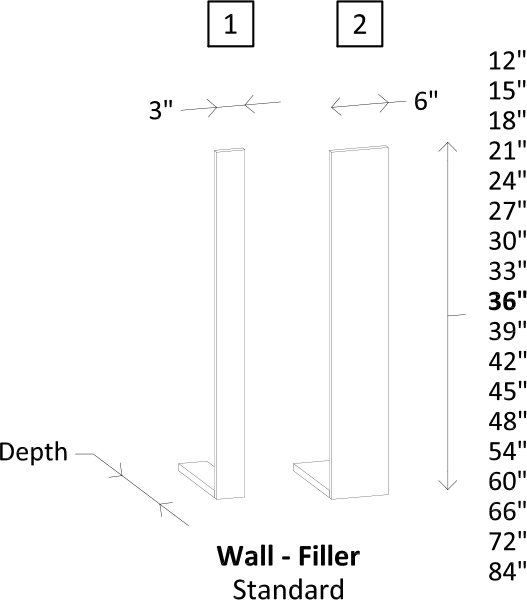

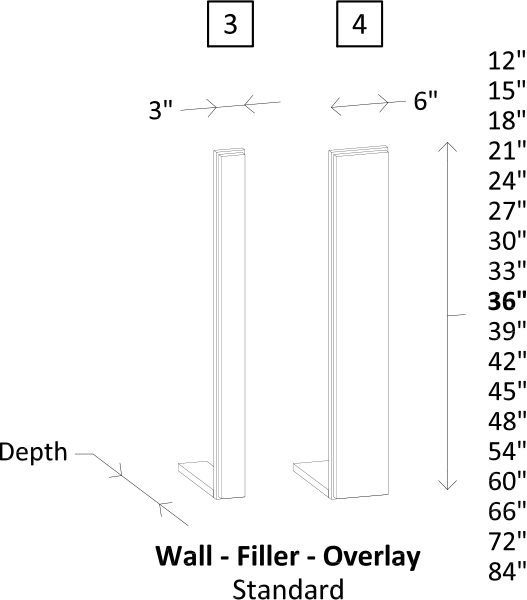

Wall - Standard Configurations
| No. |
Item Codes |
Depth - Framed Full Overlay |
Depth - Framed Inset & Frameless |
| 1 |
WF3-36 |
12" |
13" |
| 2 |
WF6-36 |
12" |
13" |
| 3 |
WFO3-36 |
12" |
13" |
| 4 |
WFO6-36 |
12" |
13" |
Design Notes
- Wall Filler Bottom Returns are Finished to Match the Bottom of Wall Cabinets
- Overlay Reveals Match Cabinet Door and Drawer Front Reveals
Base - Standard Configurations
| No. |
Item Codes |
Height |

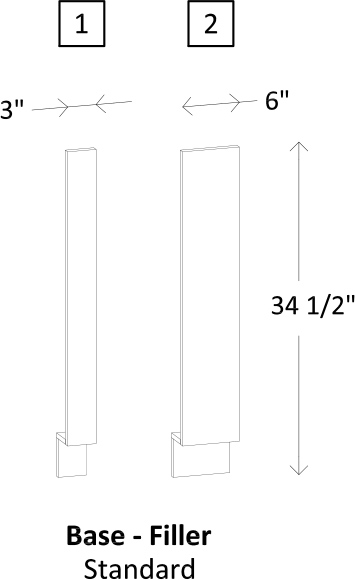

| 1 |
BF3 |
34 1/2" |
| 2 |
BF6 |
34 1/2" |

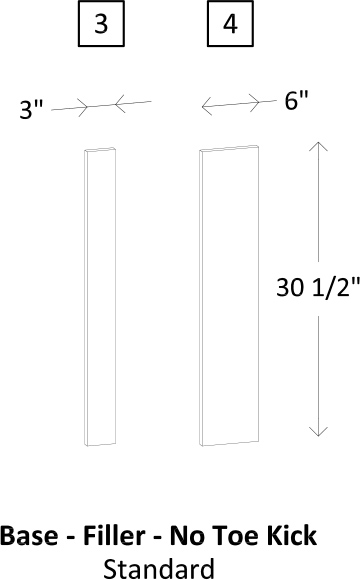

| 3 |
BFNT3 |
30 1/2" |
| 4 |
BFNT6 |
30 1/2" |

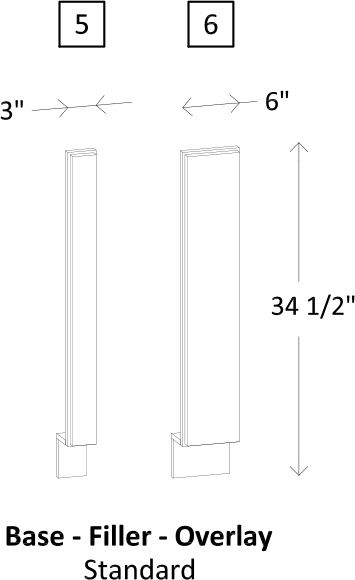

| 5 |
BFO3 |
34 1/2" |
| 6 |
BFO6 |
34 1/2" |

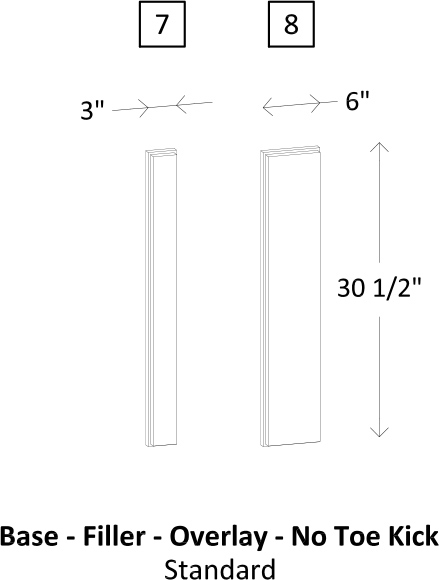

| 7 |
BFONT3 |
30 1/2" |
| 8 |
BFONT6 |
30 1/2" |
Design Notes
- Height of Fillers with NT (No Toe Kick) in the Item Code do not Include the Standard 4" High Toe Kick
- Base Filler Toe Kicks are Not Finished
- Overlay Reveals Match Cabinet Door and Drawer Front Reveals
Utility - Standard Configurations
| No. |
Item Codes |
Height |

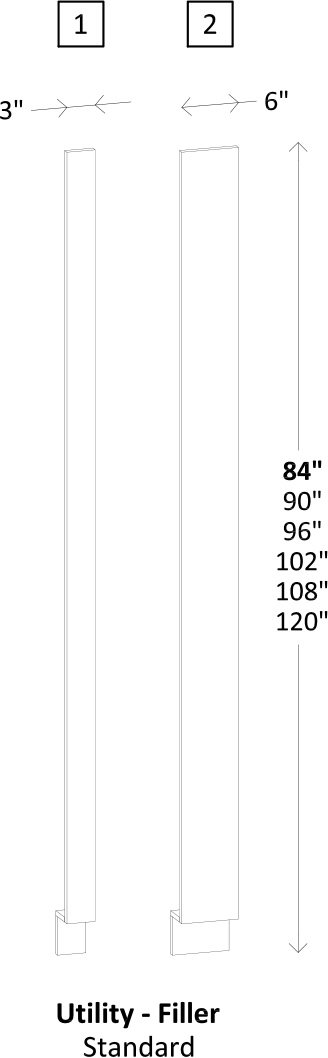

| 1 |
UF3-84 |
84" |
| 2 |
UF6-84 |
84" |

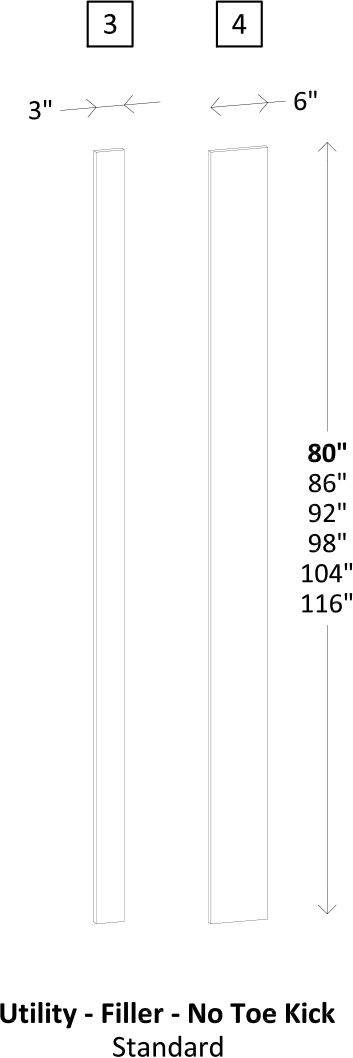

| 3 |
UFNT3-84 |
80" |
| 4 |
UFNT6-84 |
80" |

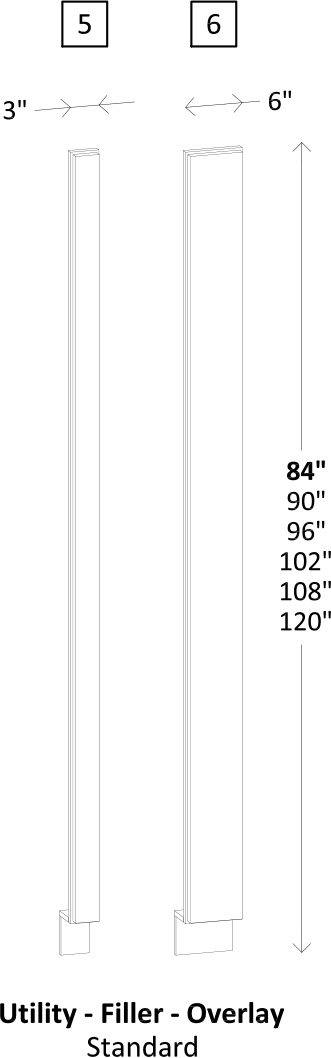

| 5 |
UFO3-84 |
84" |
| 6 |
UFO6-84 |
84" |

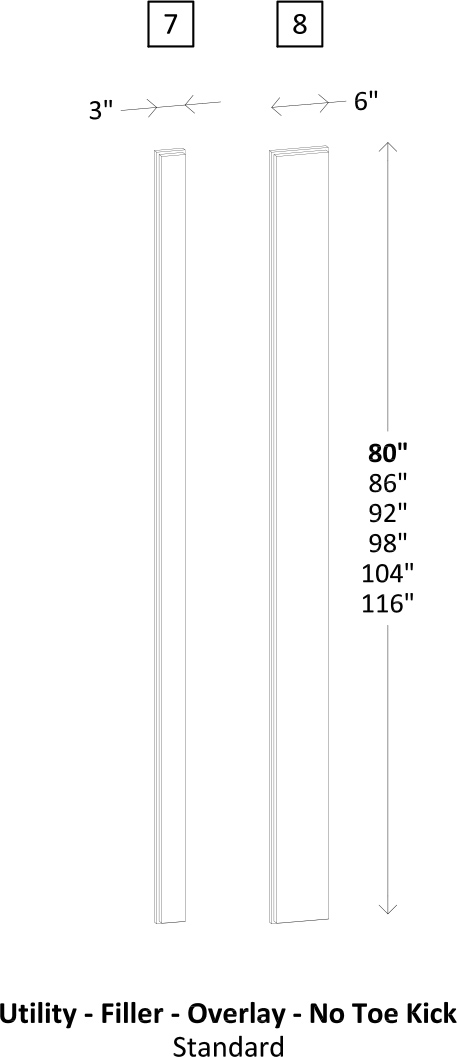

| 7 |
UFONT3-84 |
80" |
| 8 |
UFONT6-84 |
80" |
Design Notes
- Height of Fillers with NT (No Toe Kick) in the Item Code do not Include the Standard 4" High Toe Kick
- Utility Filler Toe Kicks are Not Finished
- Overlay Reveals Match Cabinet Door and Drawer Front Reveals
