Island End Cap Design Applications

Panel | Box - Plan View 50 1/4" Deep

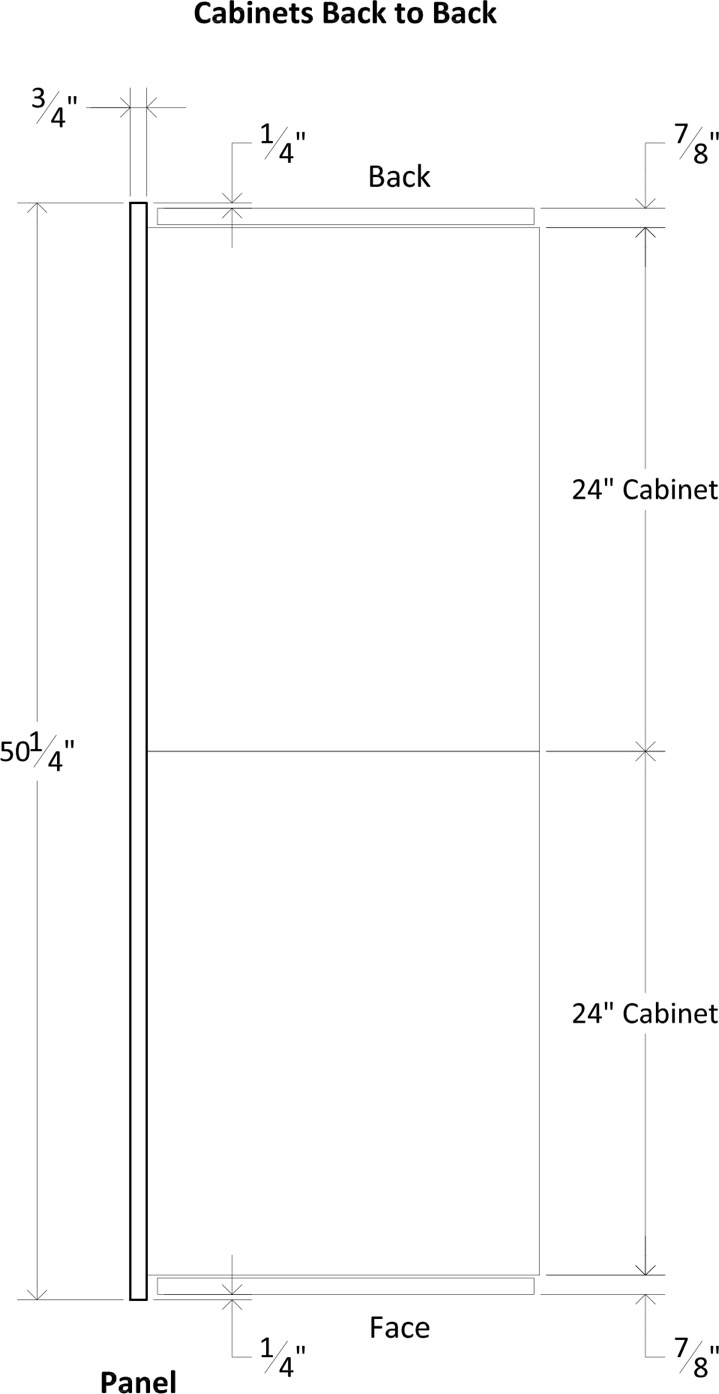

Specsheet Island End Cap App Panel Box 50 1

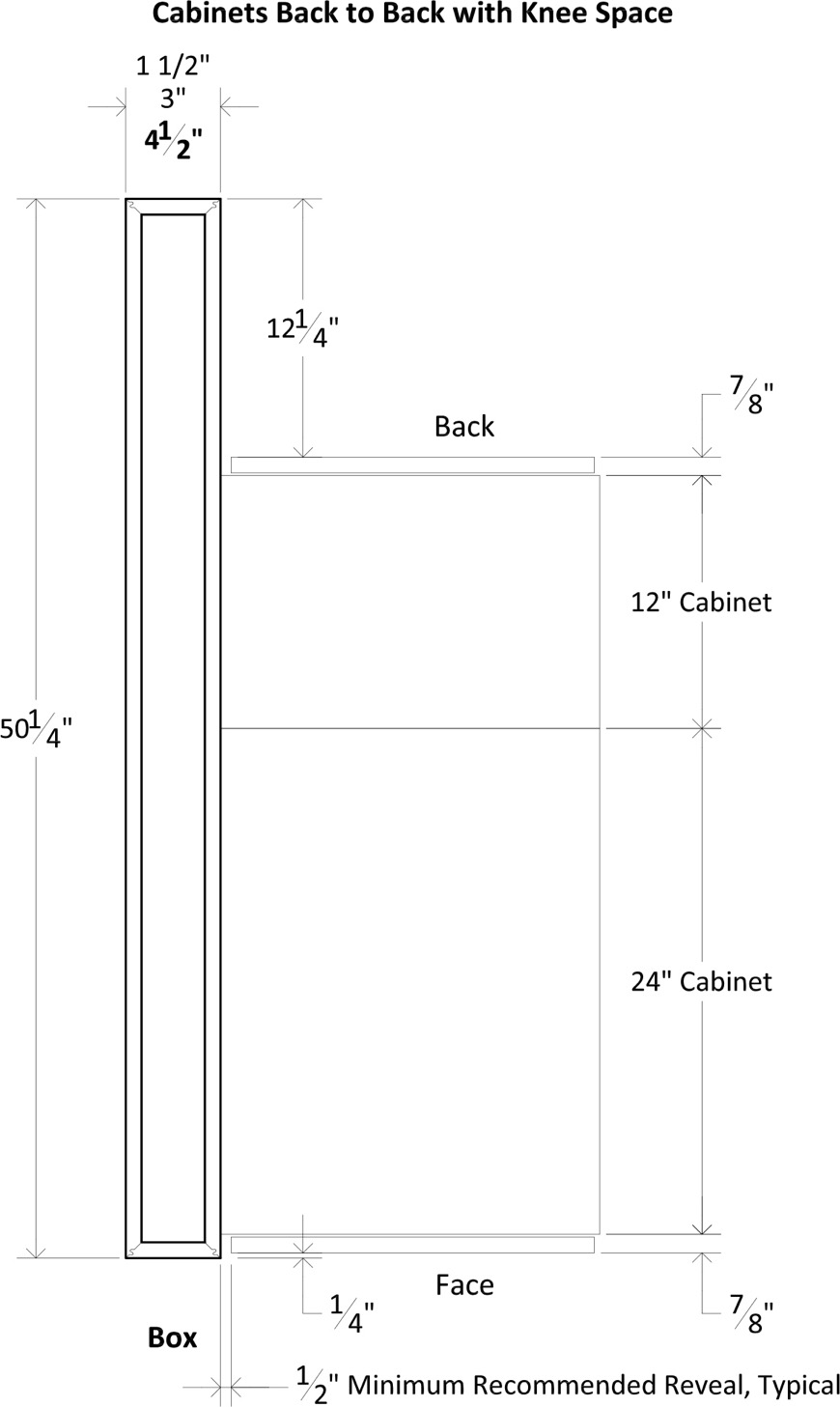

Specsheet Island End Cap App Panel Box 50 2

Panel | Box - Plan View 38 1/4" Deep

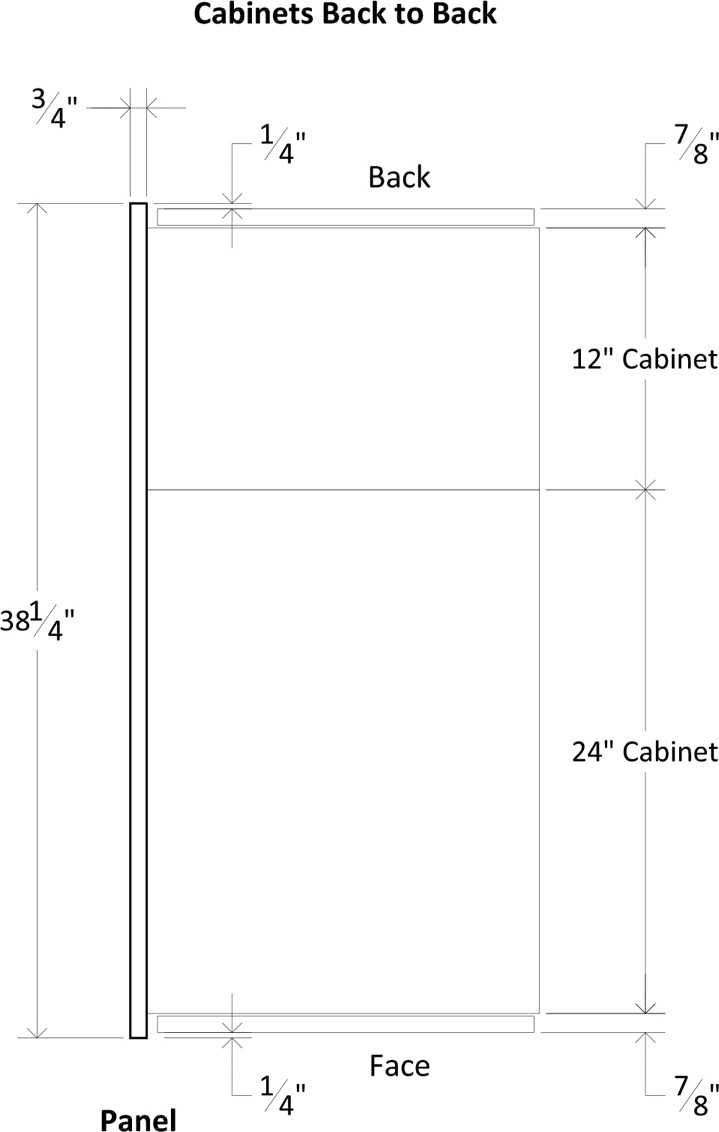

Specsheet Island End Cap App Panel Box 38 1

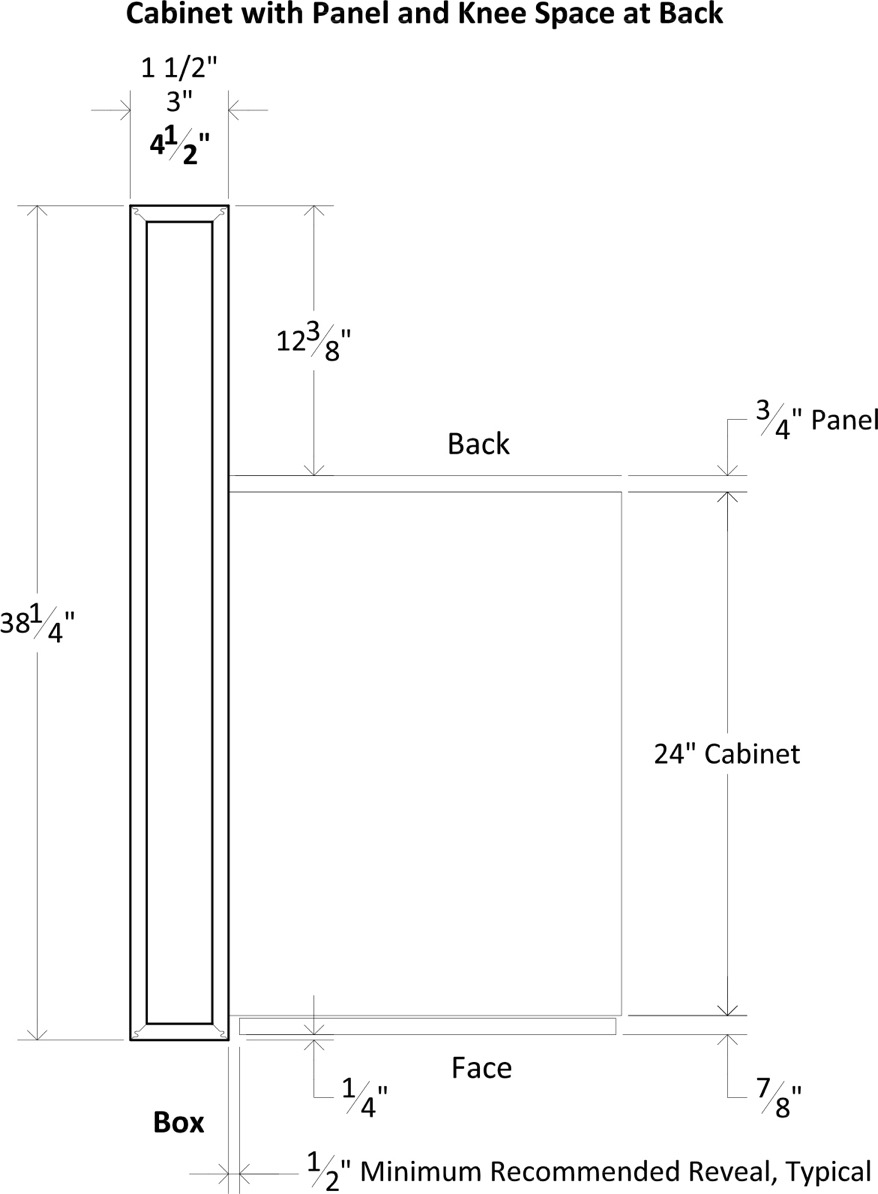

Specsheet Island End Cap App Panel Box 38 2

Panel | Box - Plan View 26 1/4" Deep

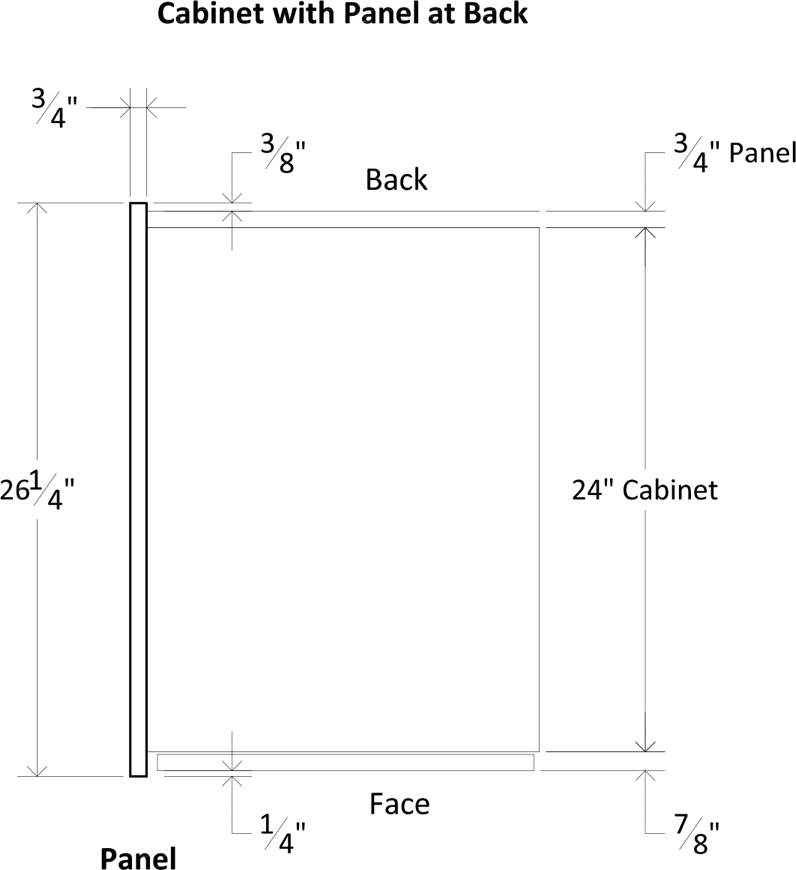

Specsheet Island End Cap App Panel Box 26 1

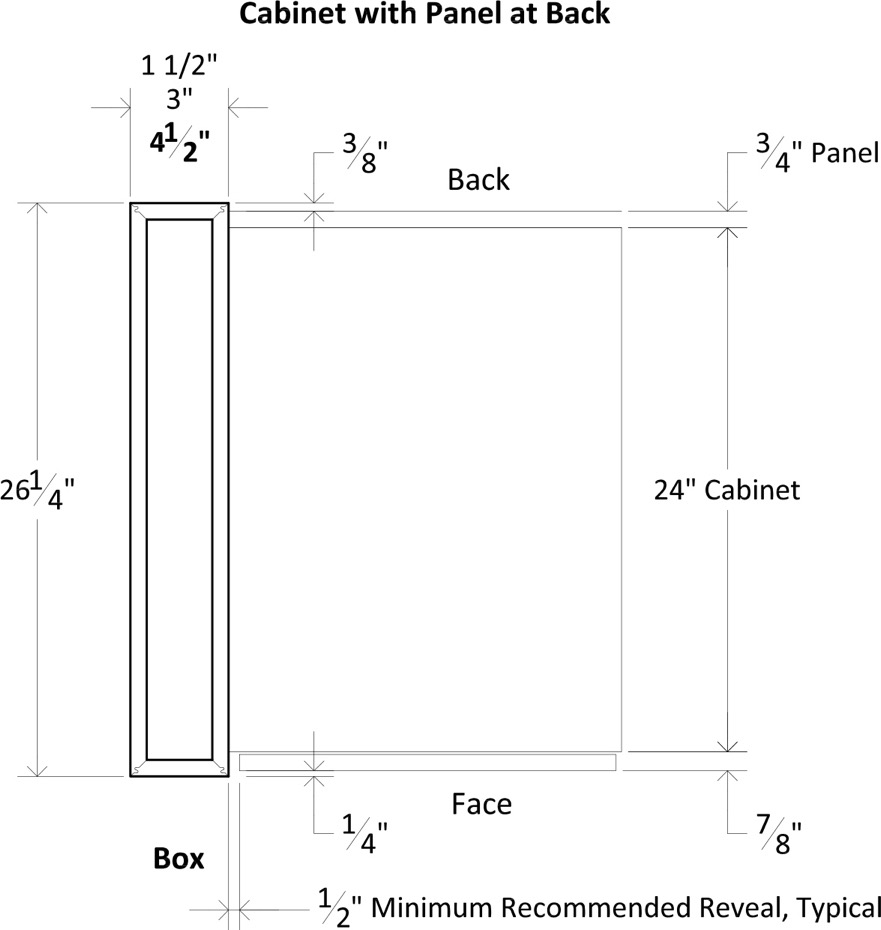

Specsheet Island End Cap App Panel Box 26 2

Box and Post - Plan View 50 1/4" Deep

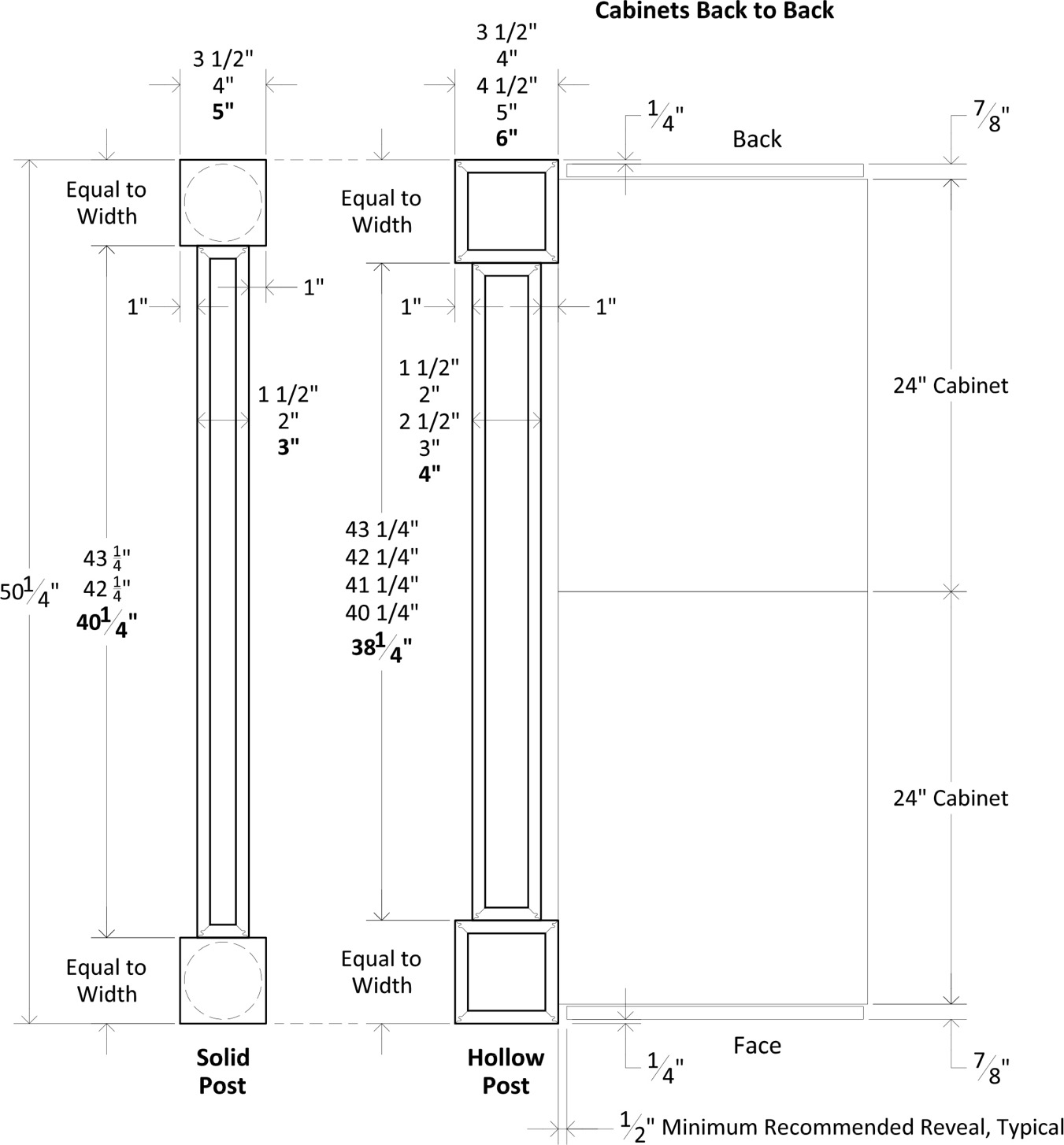

Specsheet Island End Cap App Box Post 50 1

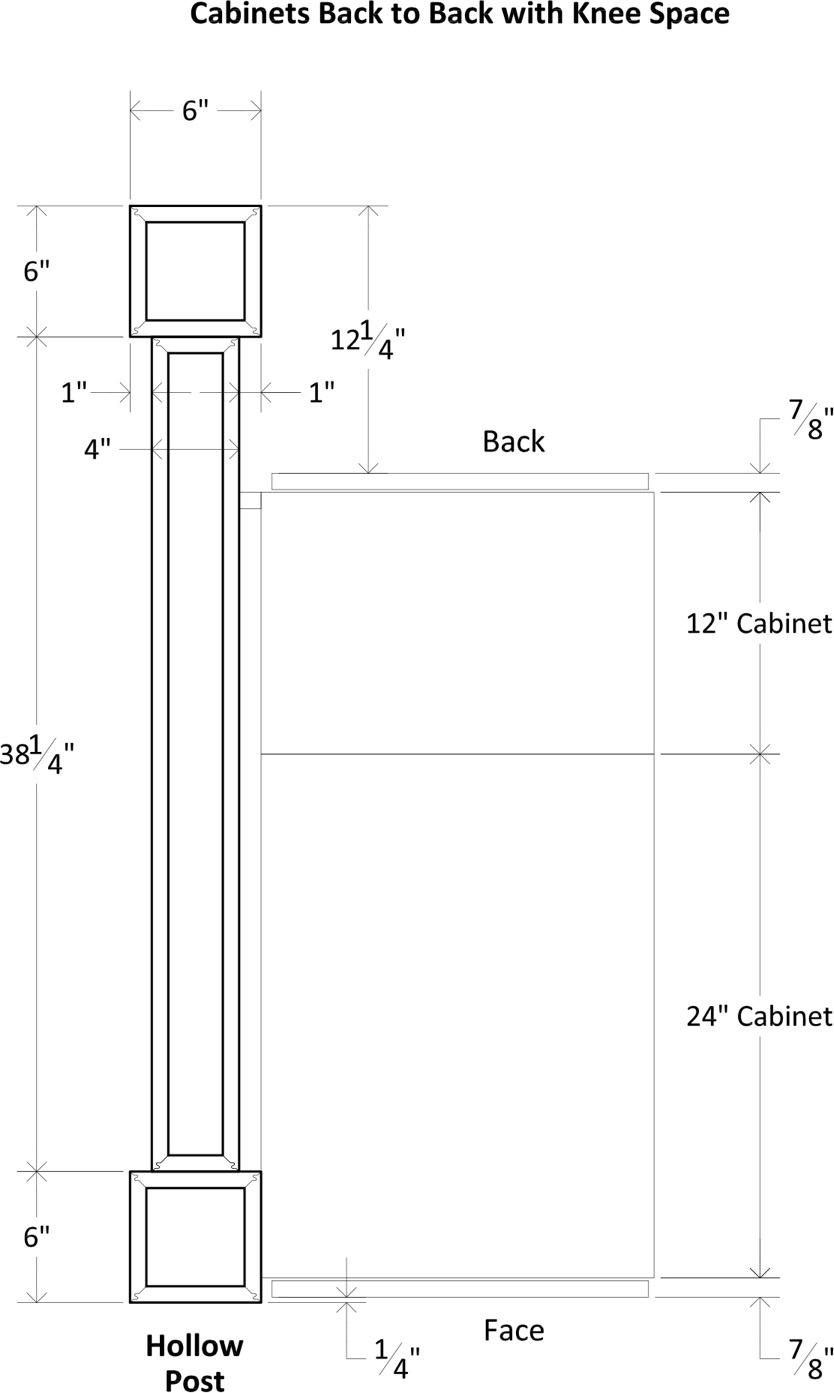

Specsheet Island End Cap App Box Post 50 2

Design Notes

Cabinets Located Next to a Solid Post Require a Finished End Panel as the End of the Cabinet Will be Visible Through the Post Profile

Box and Post - Plan View 38 1/4" Deep

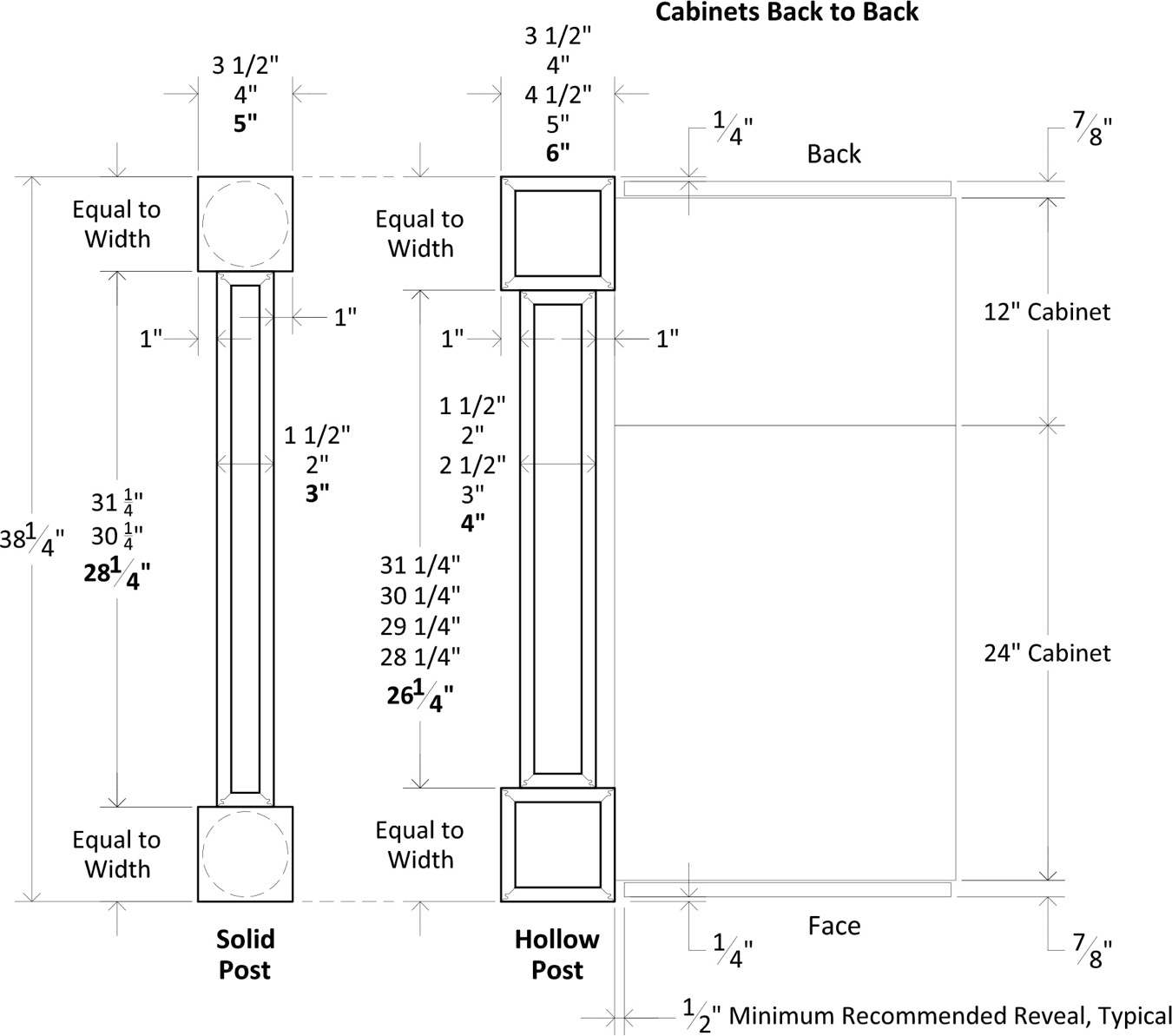

Specsheet Island End Cap App Box Post 38 1

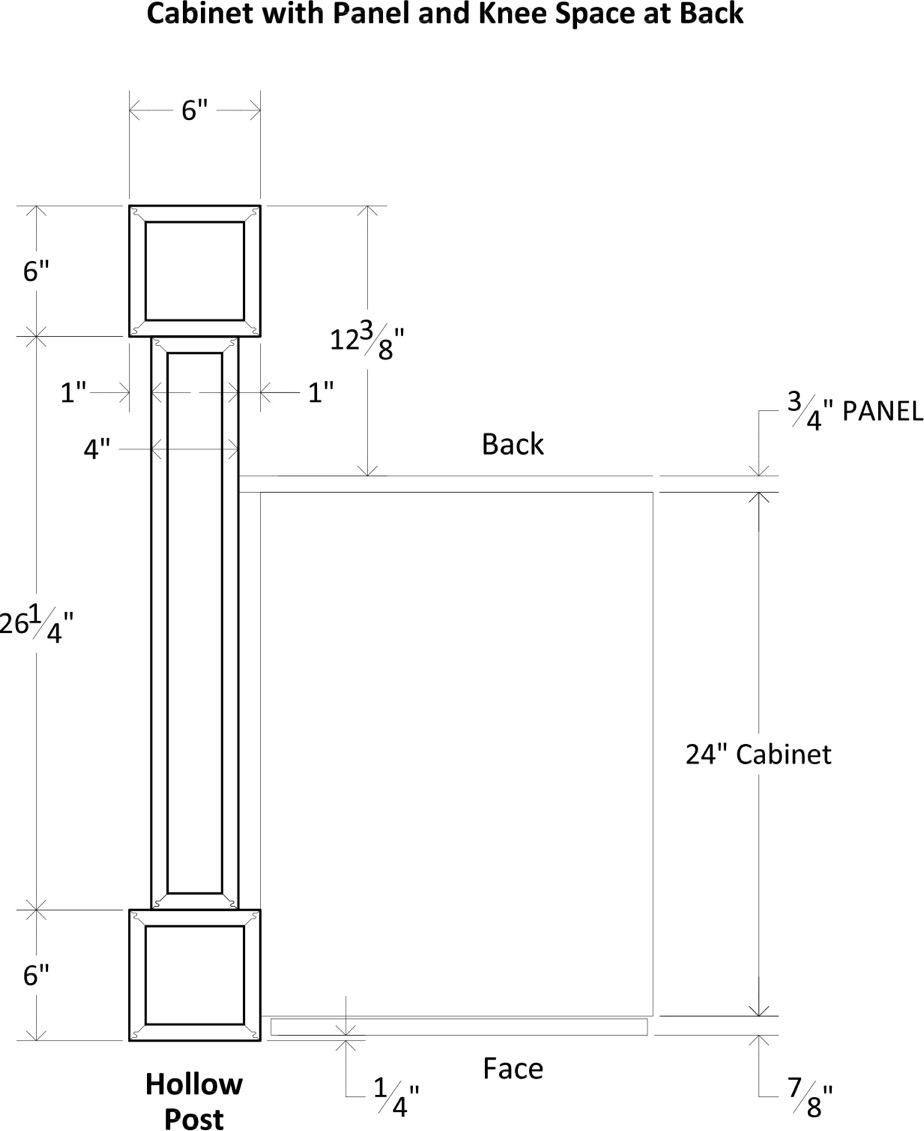

Specsheet Island End Cap App Box Post 38 2

Design Notes

Cabinets Located Next to a Solid Post Require a Finished End Panel as the End of the Cabinet Will be Visible Through the Post Profile

Box and Wainscot Post - Plan View 50 1/4" and 38 1/4" Deep

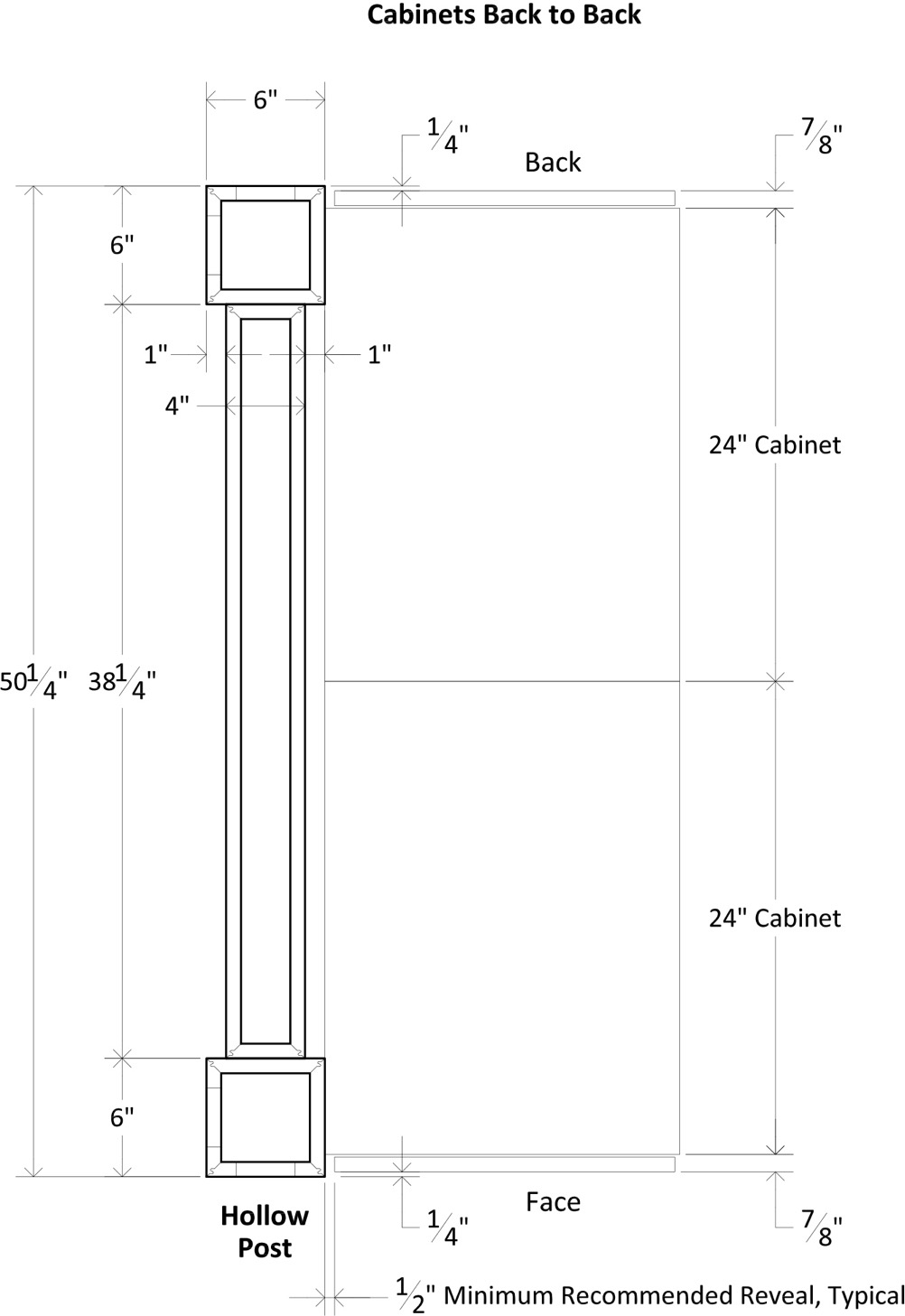

Specsheet Island End Cap App Box Wainscot 1

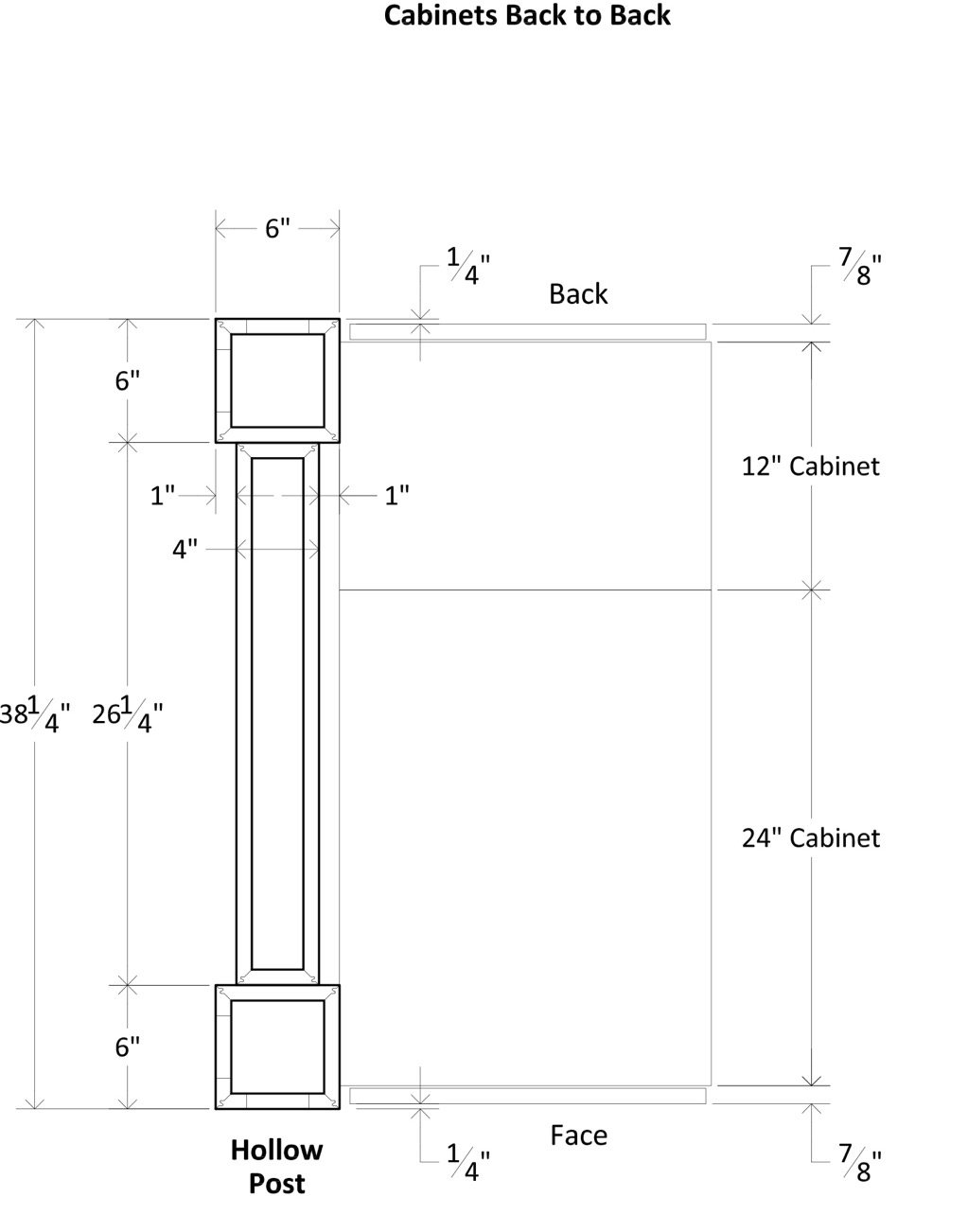

Specsheet Island End Cap App Box Wainscot 2

Box and Wainscot Post - Handed - Plan View 50 1/4" and 38 1/4" Deep

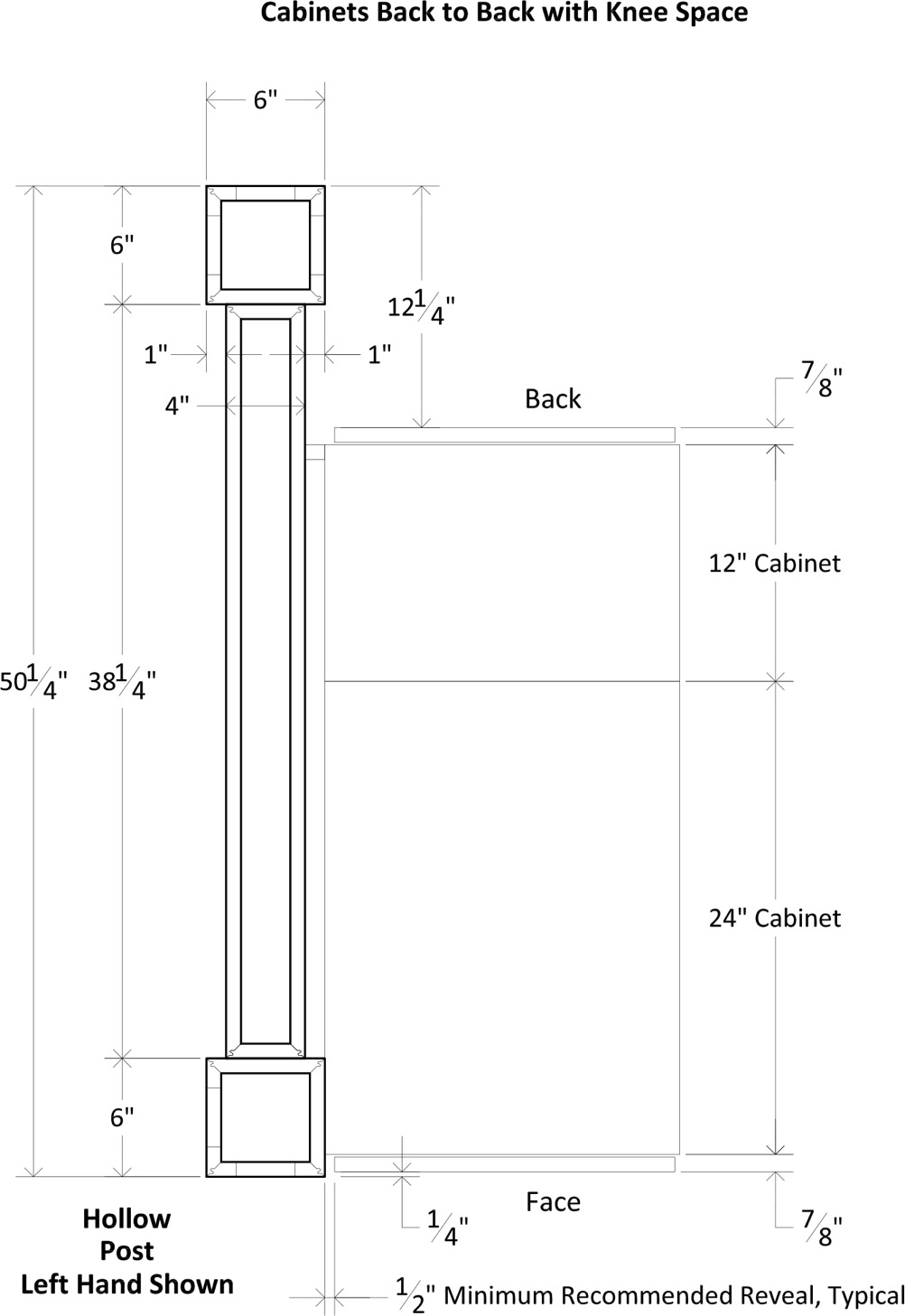

Specsheet Island End Cap App Box Wainscot Handed 1

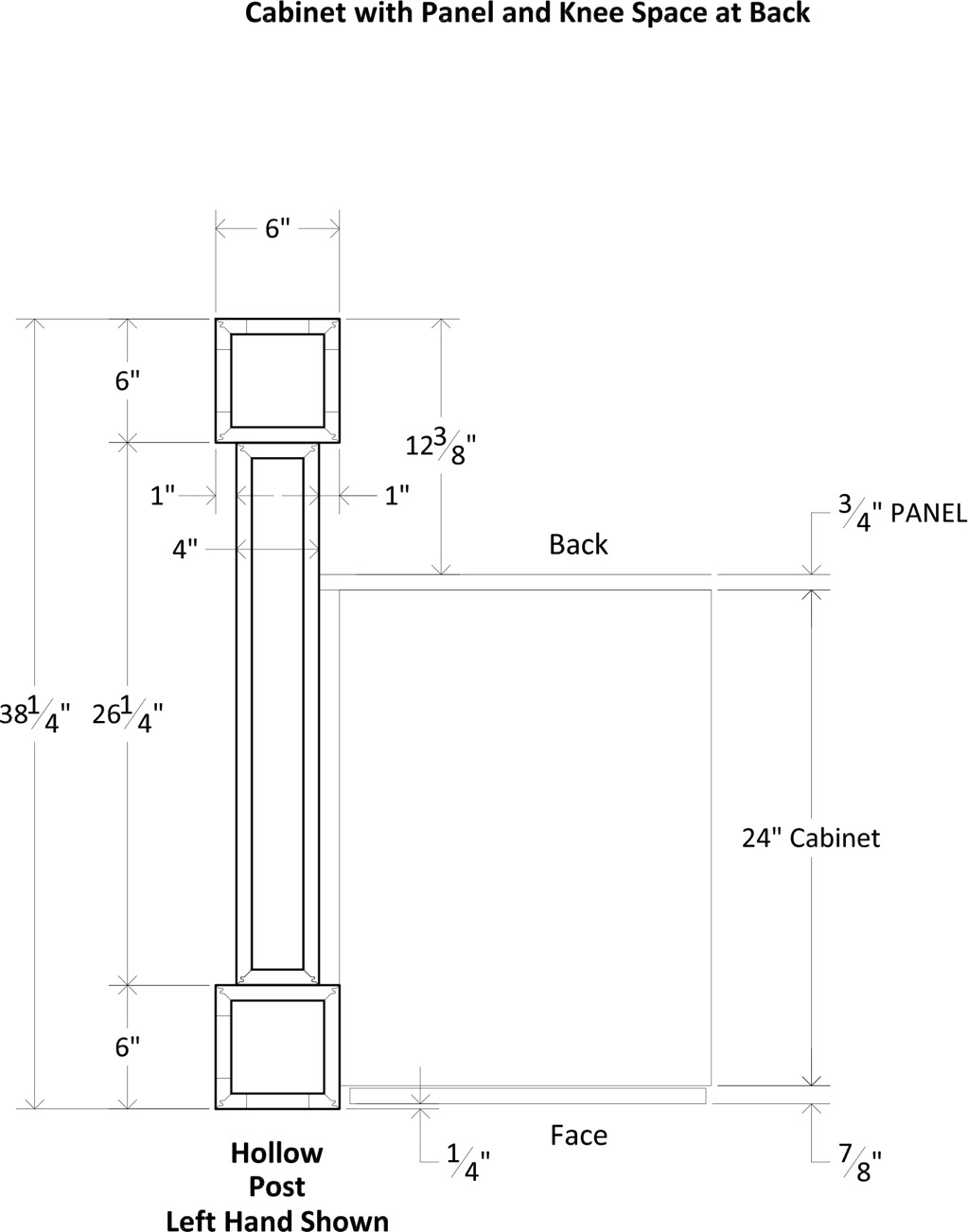

Specsheet Island End Cap App Box Wainscot Handed 2
