Panel Edge Banding Options
Panel - Veneer - Cut To Size | Panel - Veneer - Cross Grain - Cut To Size | Panel - UV Coated - Cut To Size
Elevation View of Panel - 1/2" and 3/4" Thick Examples Shown
Modifications
| No. | Modification Name | Mod Code |
|---|---|---|

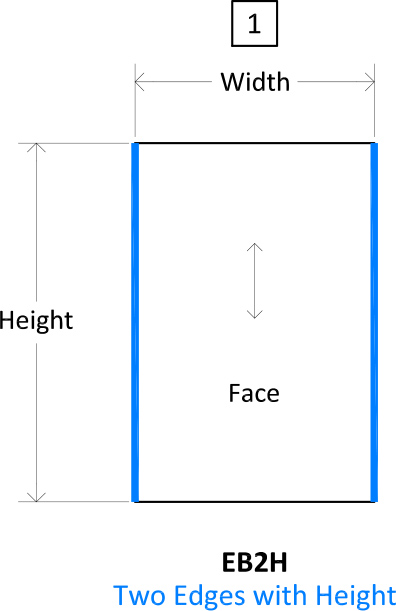

| 1 | Edge Band 2 Edges with Height Dimension | EB2H |

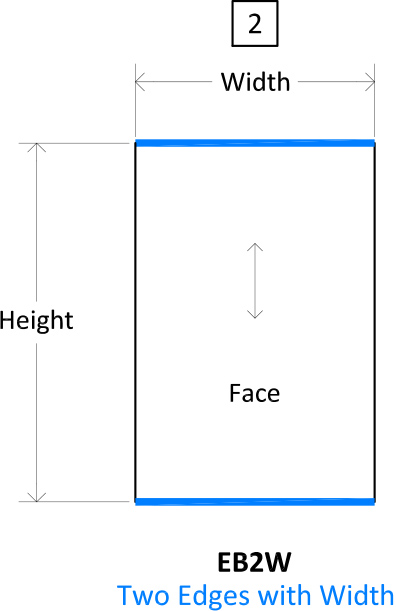

| 2 | Edge Band 2 Edges with Width Dimension | EB2W |

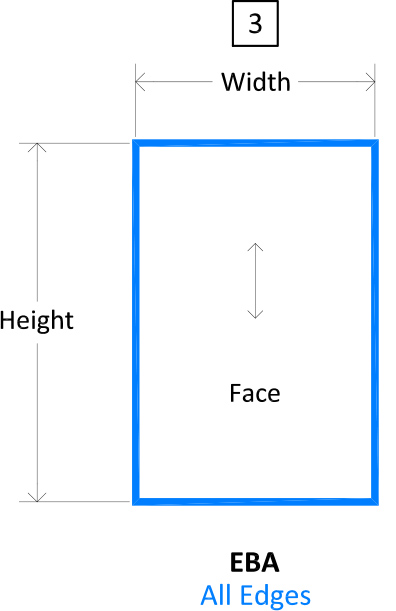

| 3 | Edge Band All Edges | EBA |
Design Notes
- Bold Blue Lines Indicate Edge Banding with Finish
- If Panel has Grain - Grain Runs with the Height of the Panel
- Edge Band Mods Available on 1/2" and 3/4" Thick Panels
- Finish 2 Sides (F2S) Modification Available Only on 3/4" Thick Panels
