Pipe Chase Drawer Spec (PCD)
Modifications
| Location | Description |
|---|---|
| T | Top |
| M | Middle |
| B | Bottom |
| TM | Top and Middle |
| TB | Top and Bottom |
| MB | Middle and Bottom |
| TMB | Top, Middle, and Bottom |
Design Notes

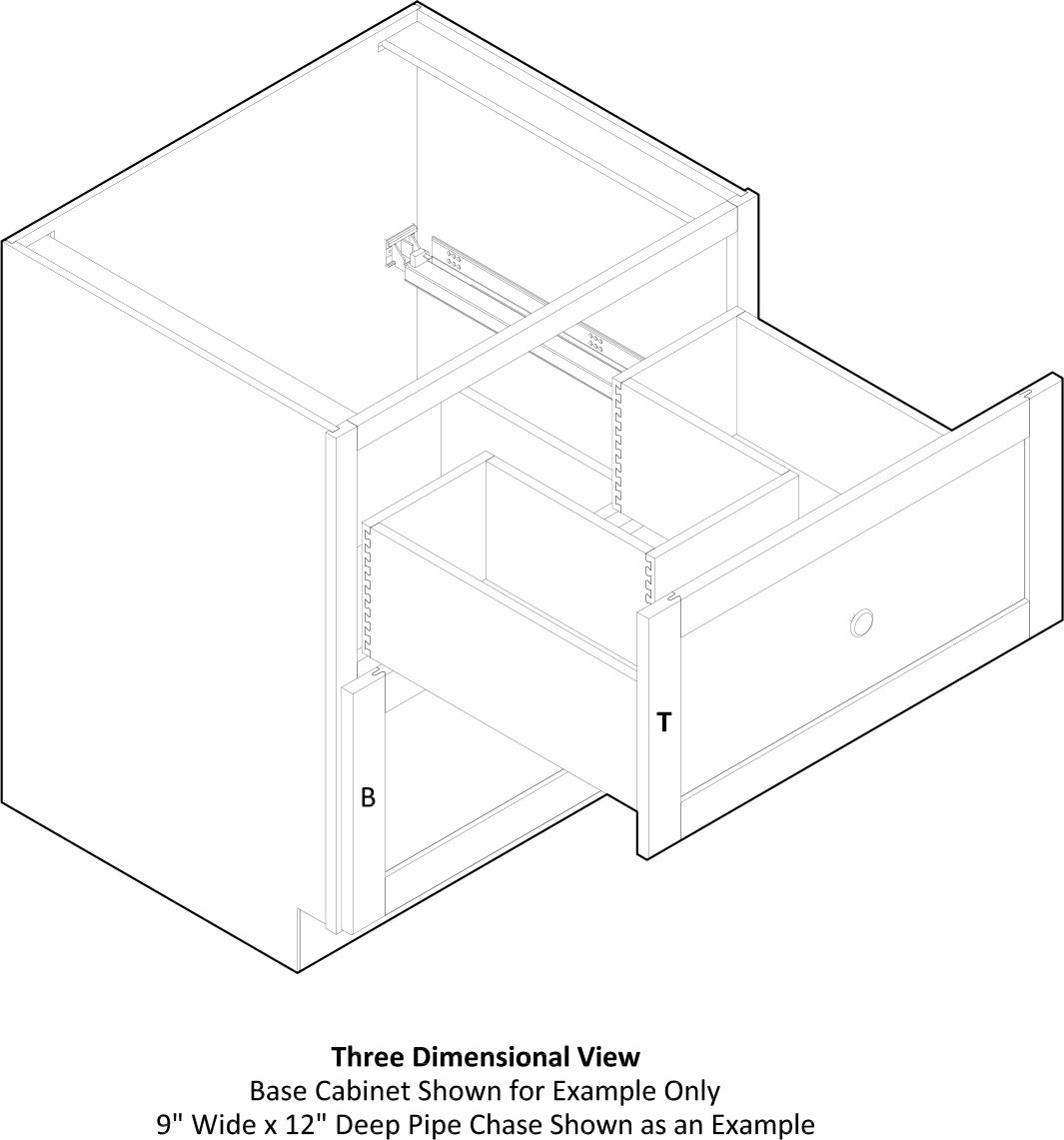

- Adds a Pipe Chase to a Drawer - Specify Drawer Location(s) - T | M | B | TM | TB | MB | TMB
- Specify Pipe Chase Width and Depth Cutout Dimensions
- Pipe Chase is Centered Side to Side in the Back of the Drawer Box
