Top Drawer - Cutlery Combo Inserts Spec
Overview
| Item Code | Description |
|---|---|
| CD | Cutlery Divider Insert |
| CST | Cutlery Silverware Tray Insert |
| CUT | Cutlery Utensil Tray Insert |
| KBI | Knife Block Insert |
| SDI | Spice Drawer Insert |
Design Notes
- Cutlery Combo Inserts Images are for Reference Only - Configuration of Inserts May Vary Based on Width of Cabinet Ordered

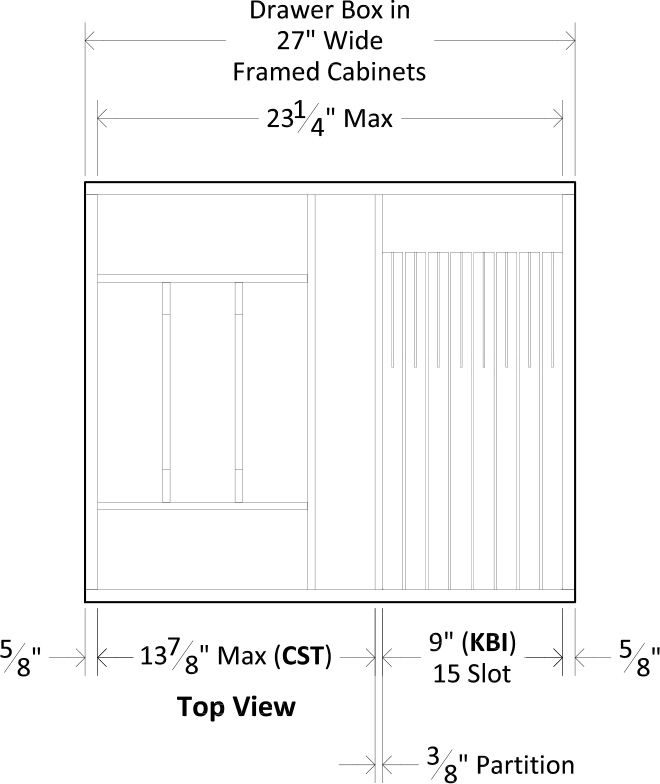

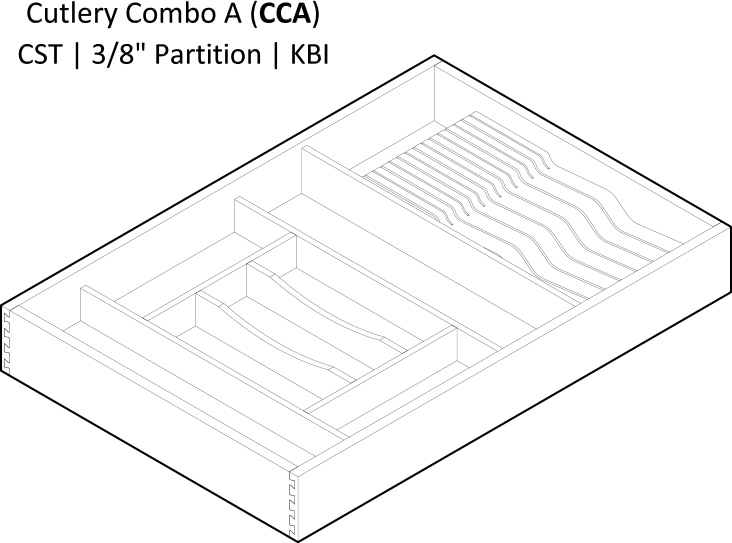

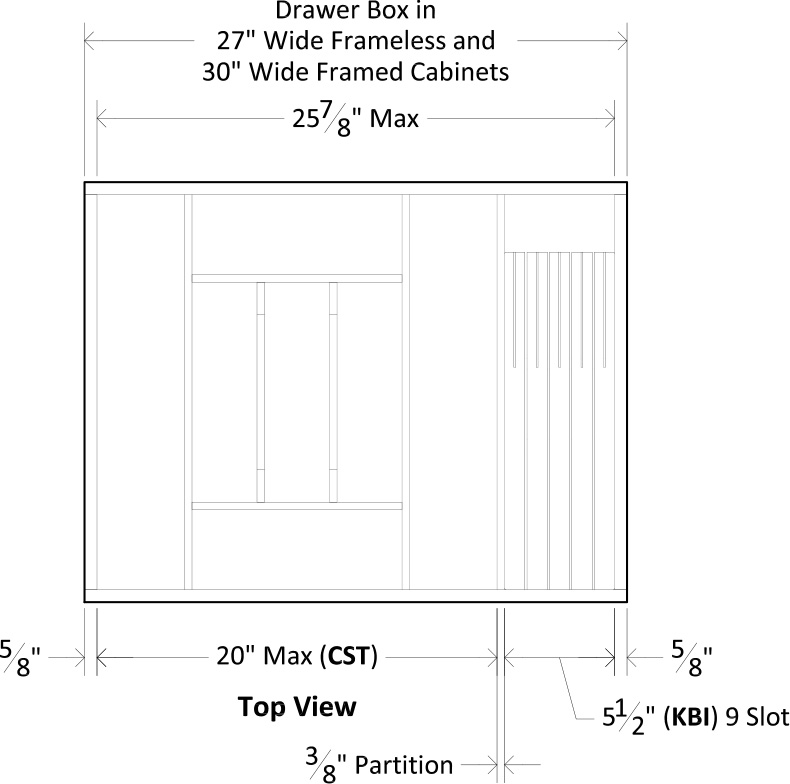

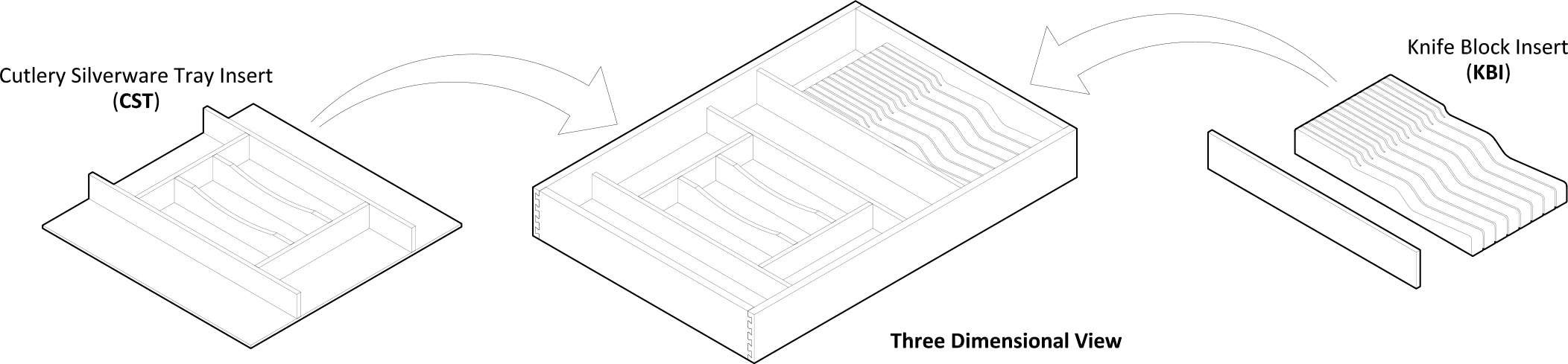

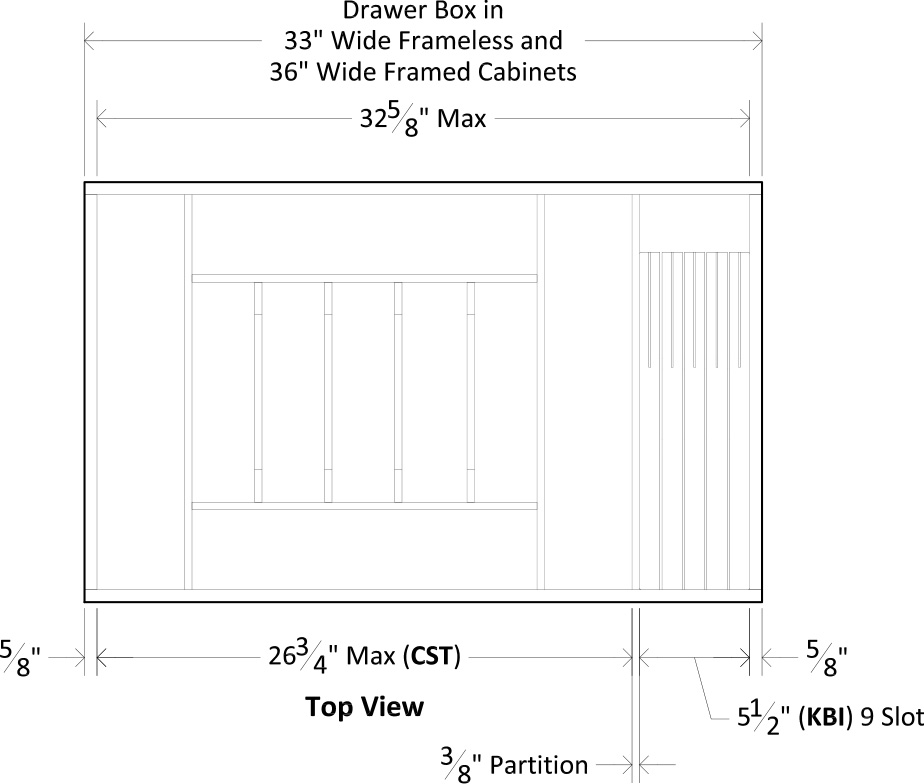

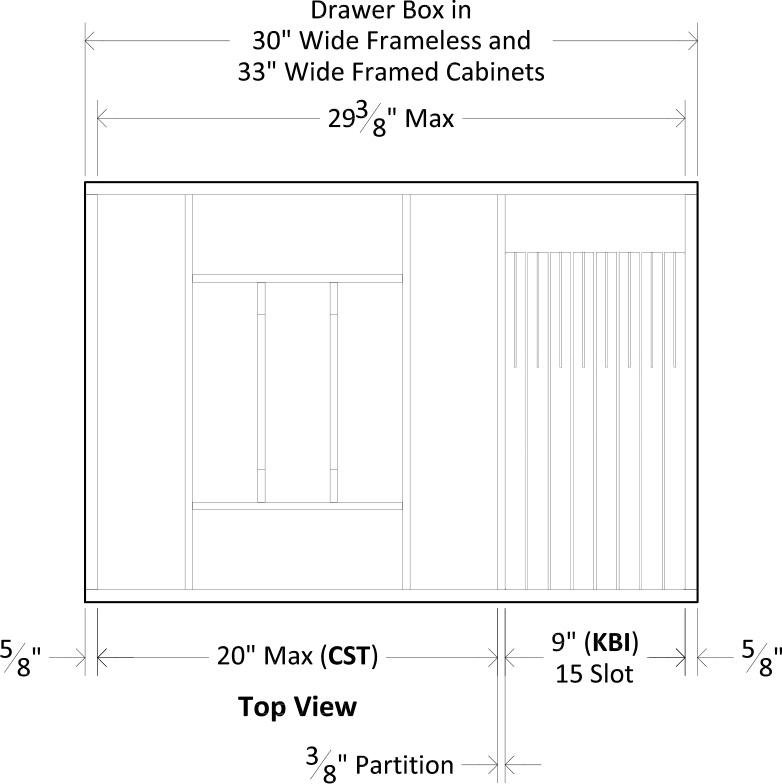

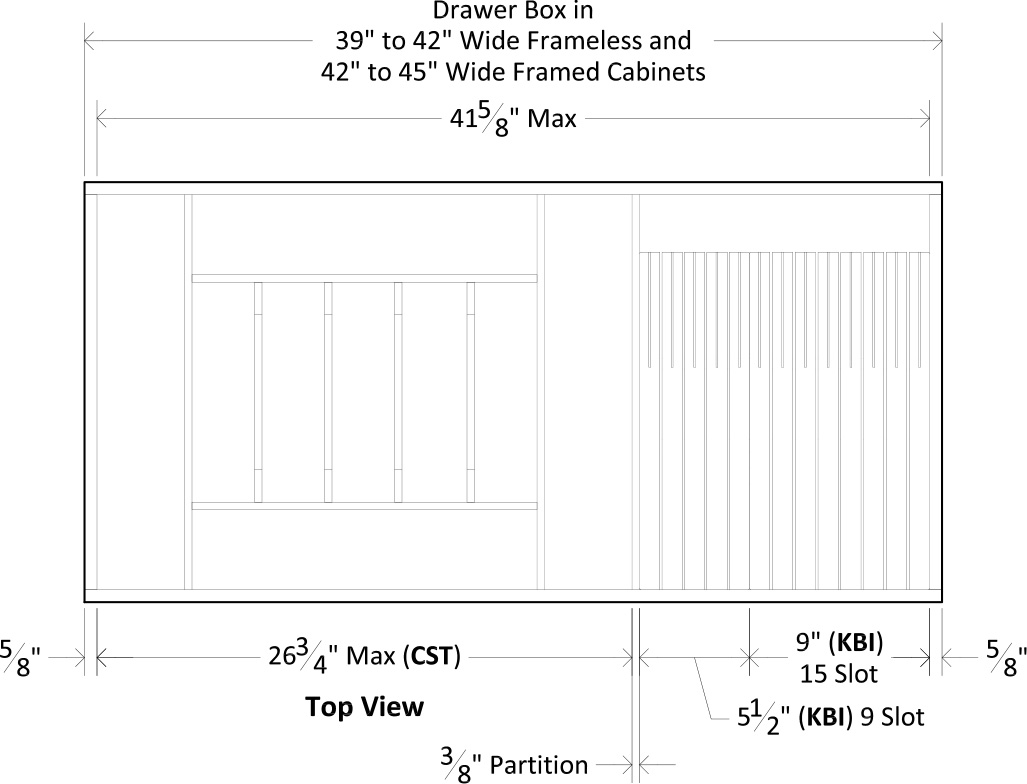

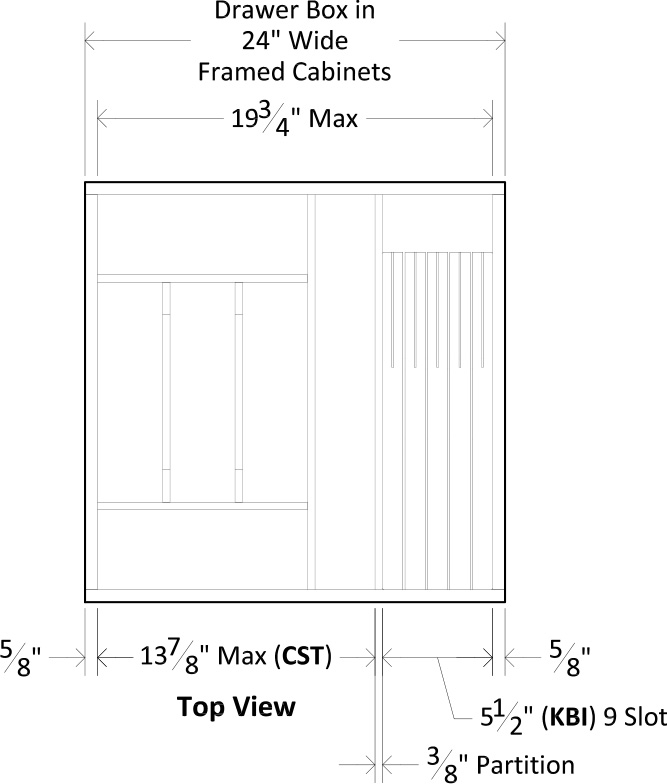

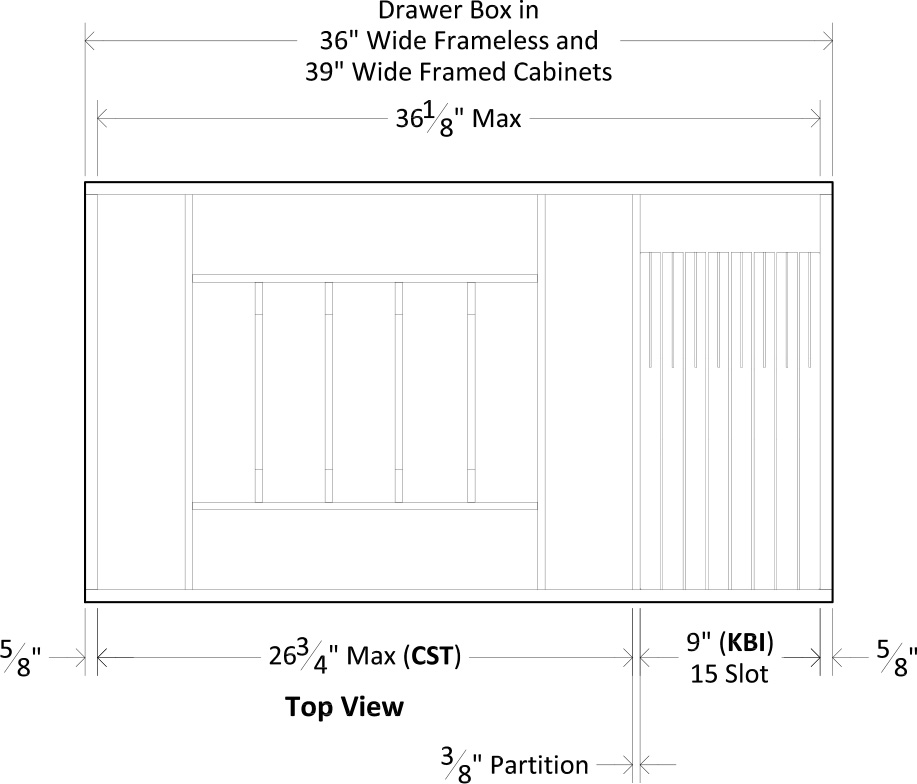

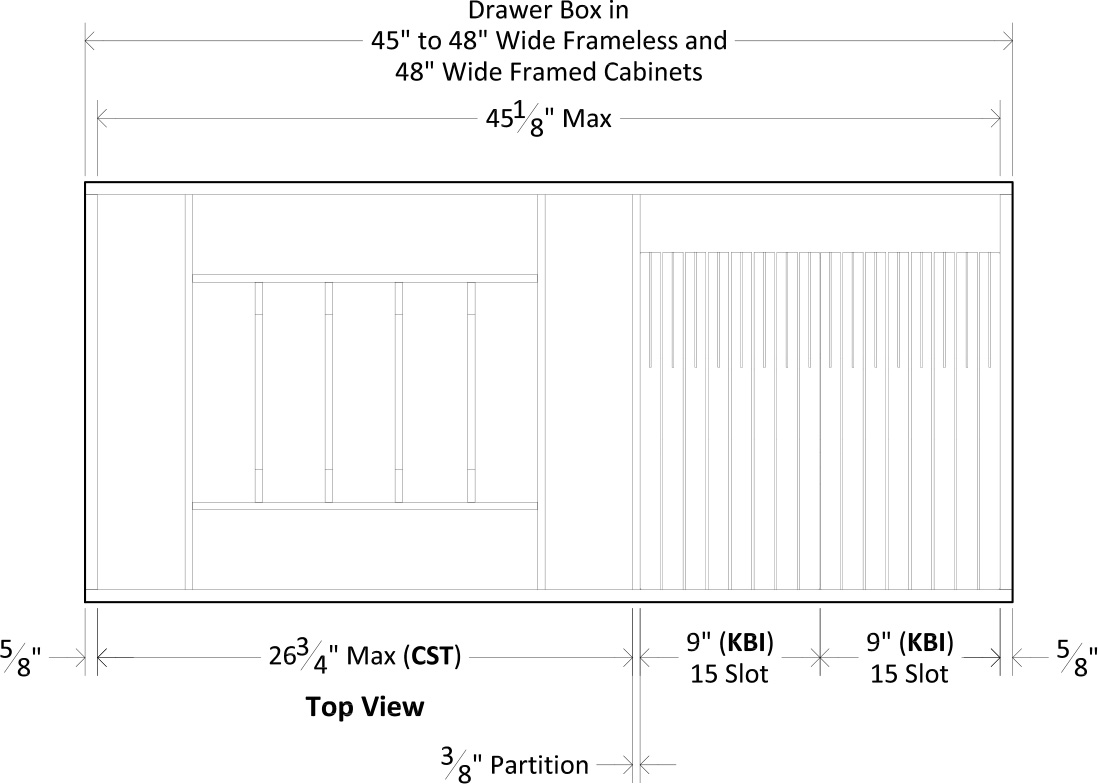

Cutlery Combo A - CST | KBI Inserts (CCA)
Design Notes
- Cutlery Combo A - CST | KBI Inserts (CCA) is Available in Base Cabinet Top Drawers
- Material: Natural Maple
- 3/8" Thick Partition Between the CST and KBI is Included with the KBI from the Supplier
- Cut Down Logic: Cutlery Silverware Tray Inserts (CST) are Ordered in Three Widths - 13.875" | 20" | 26.75" - Narrowest Possible is Used and Cut to Fit Drawer Box Interior (Left and Right Ends are to be Cut Down Equally - If Ends would be Less than 2" Wide, Cut One End Off and Trim the Other End to Fit)

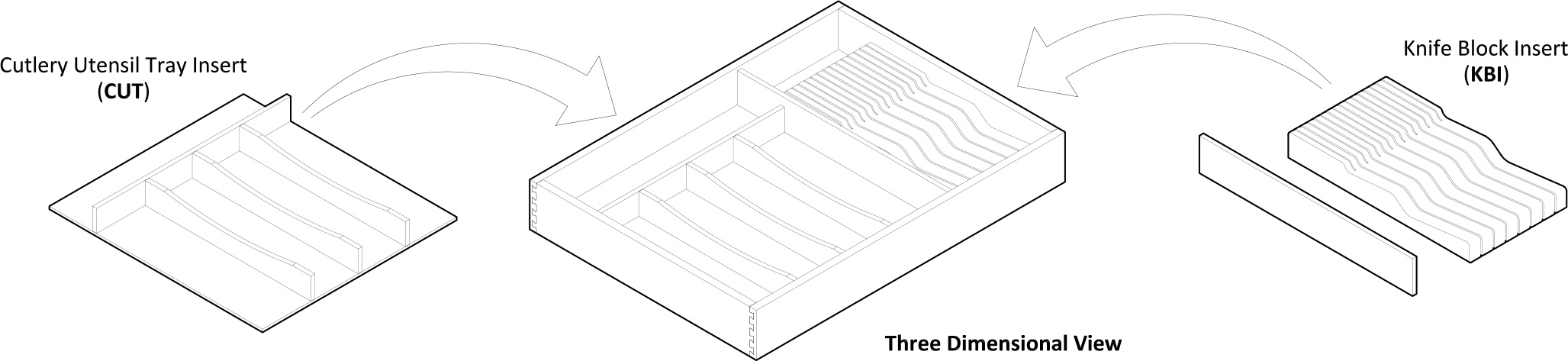

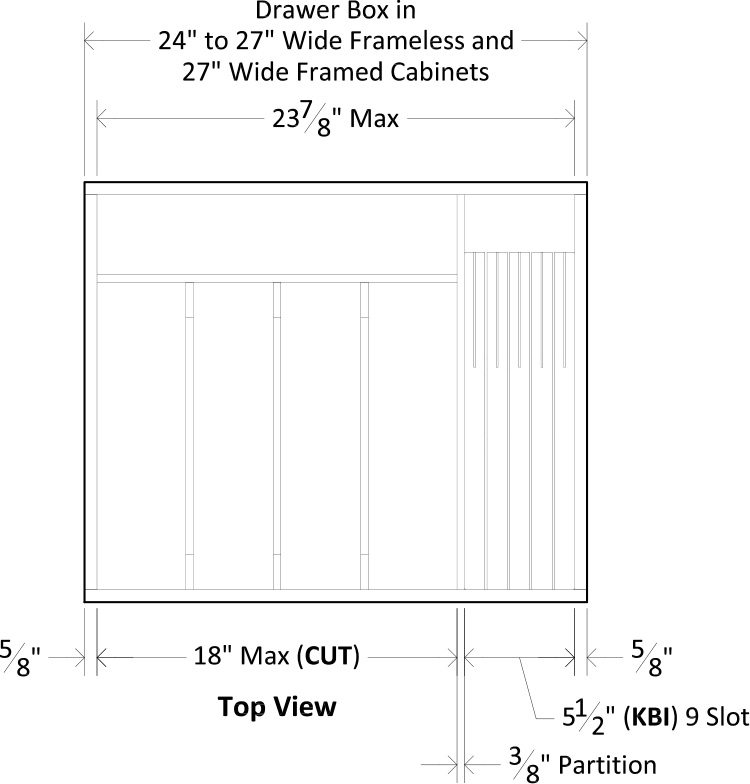

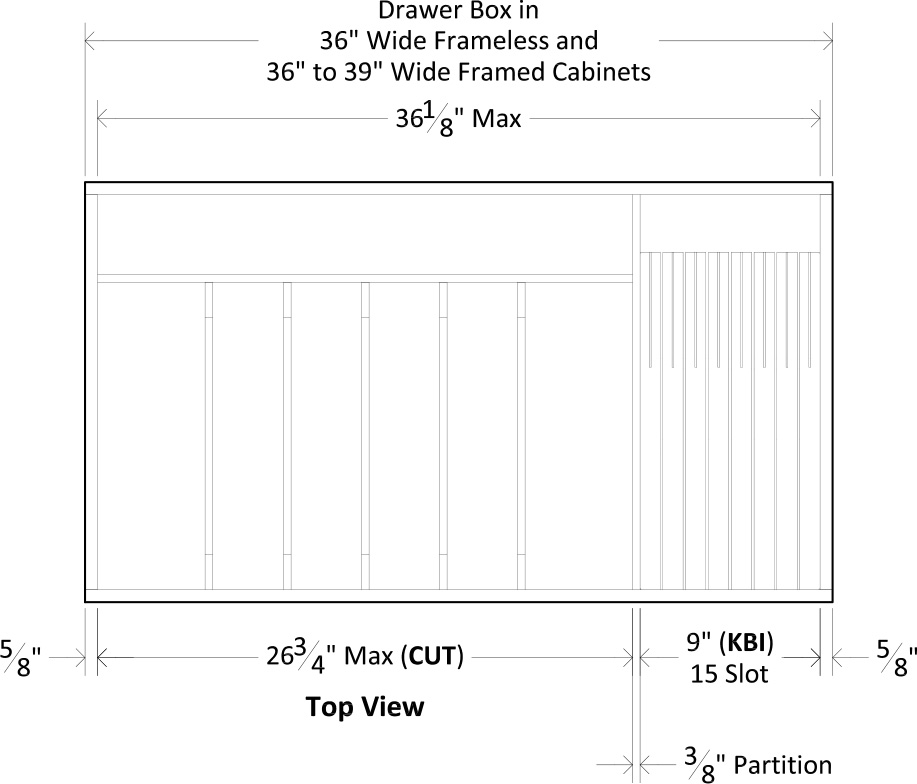

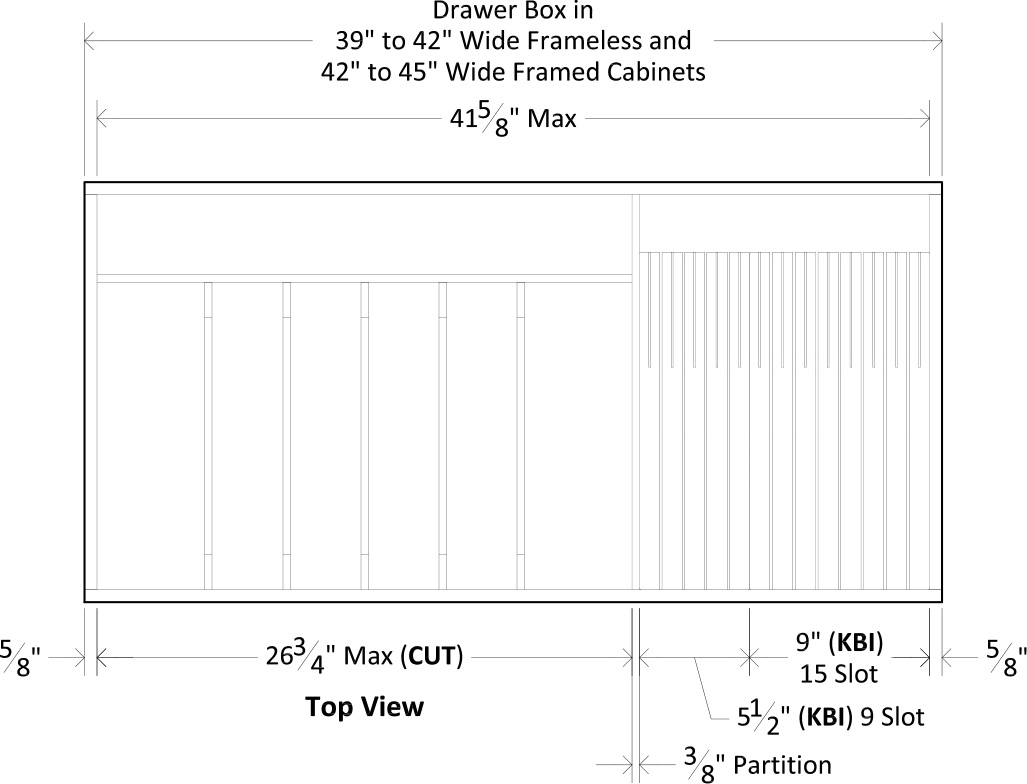

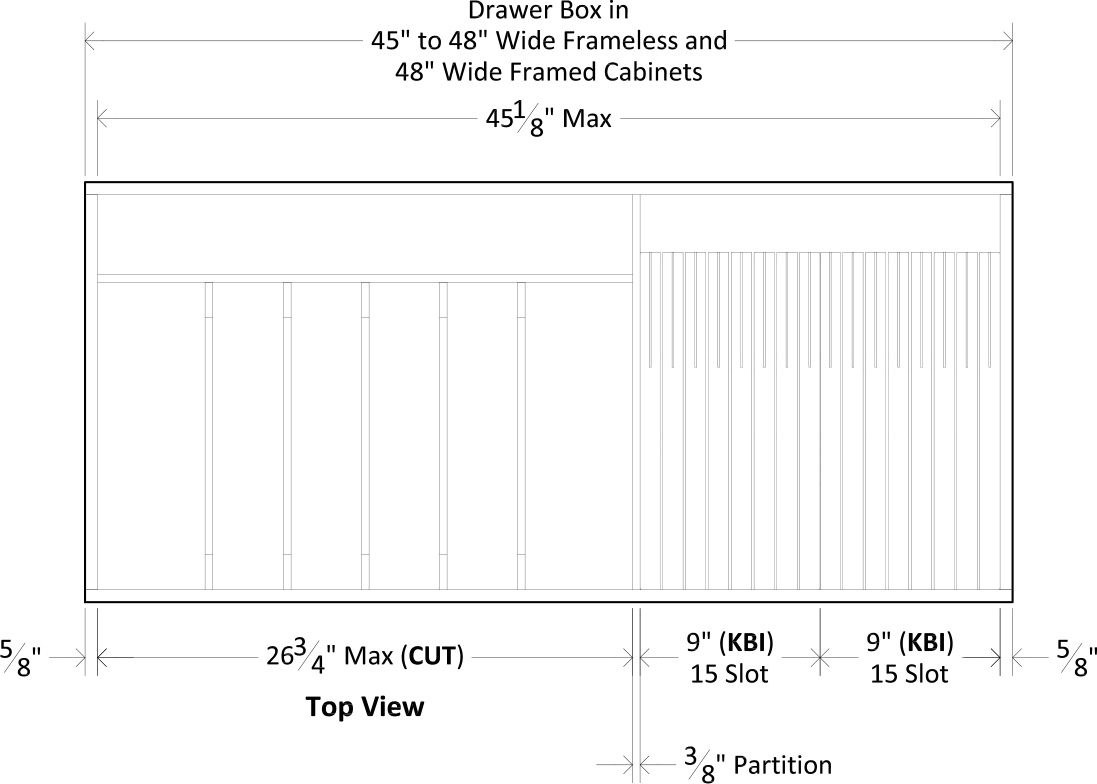

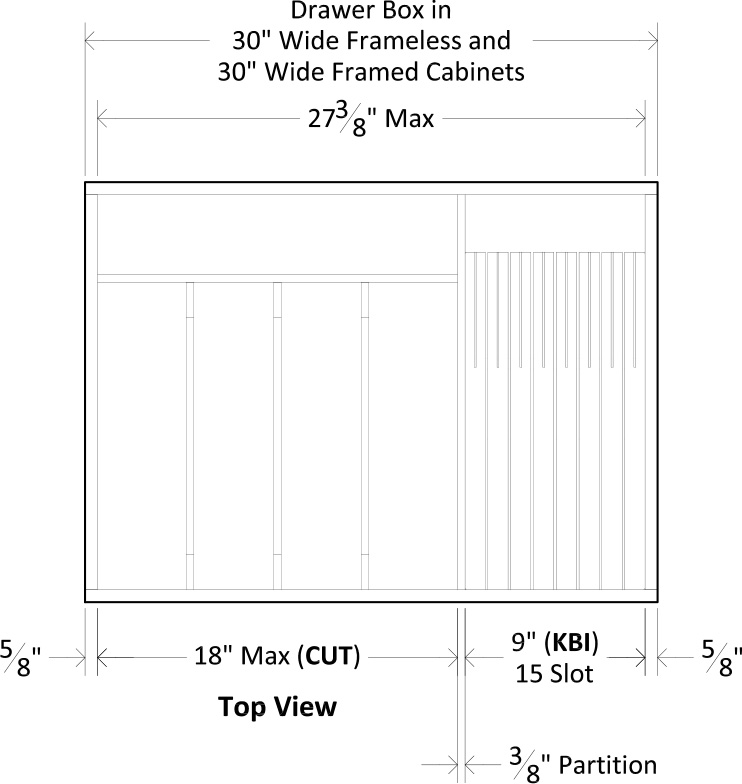

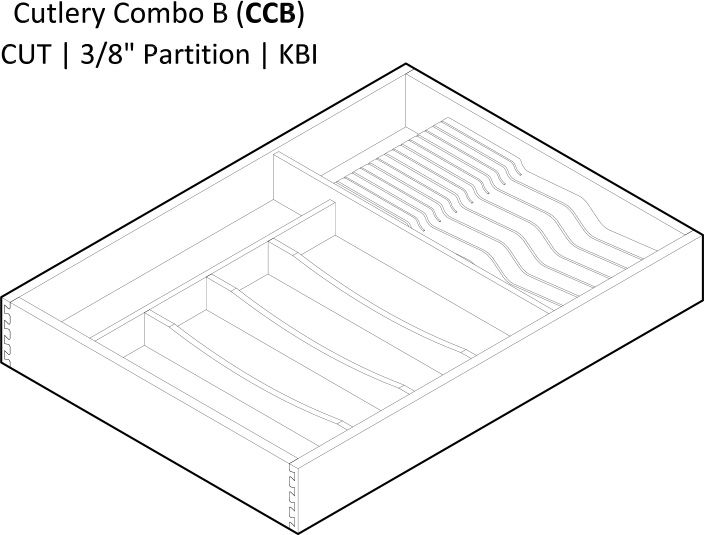

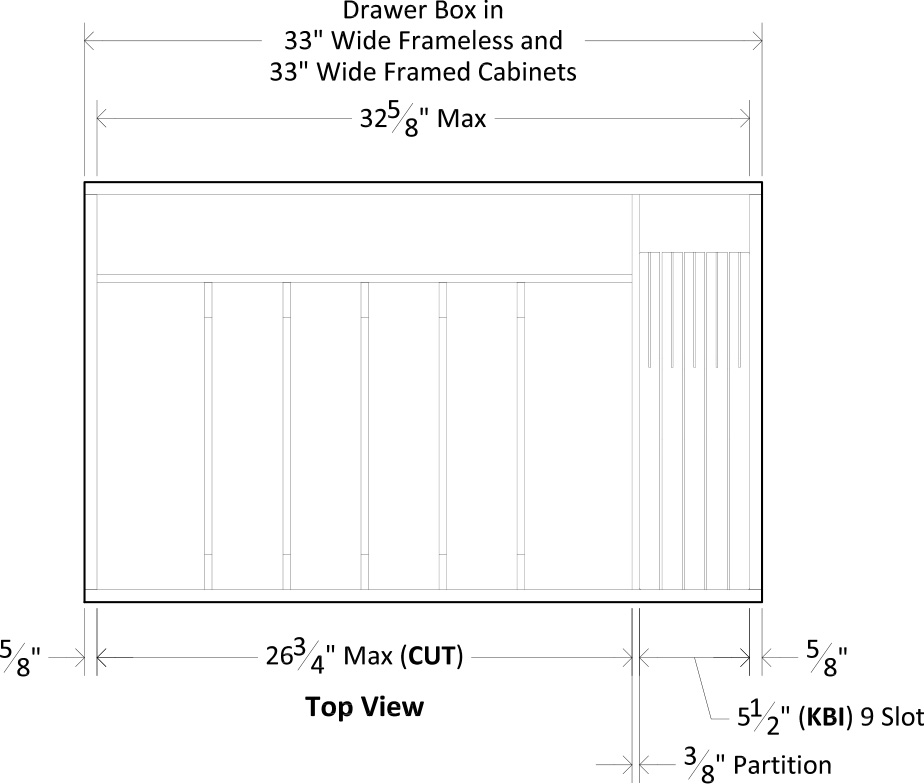

Cutlery Combo B - CUT | KBI Inserts (CCB)
Design Notes
- Cutlery Combo B - CUT | KBI Inserts (CCB) is Available in Base Cabinet Top Drawers
- Material: Natural Maple
- 3/8" Thick Partition Between the CUT and KBI is Included with the KBI from the Supplier
- Cut Down Logic: Cutlery Utensil Tray Inserts (CUT) are Ordered in Two Widths - 18" | 26.75" - Narrowest Possible is Used and Cut to Fit Drawer Box Interior (Left and Right Ends are to be Cut Down Equally - If Ends would be Less than 2" Wide, Cut One End Off and Trim the Other End to Fit)

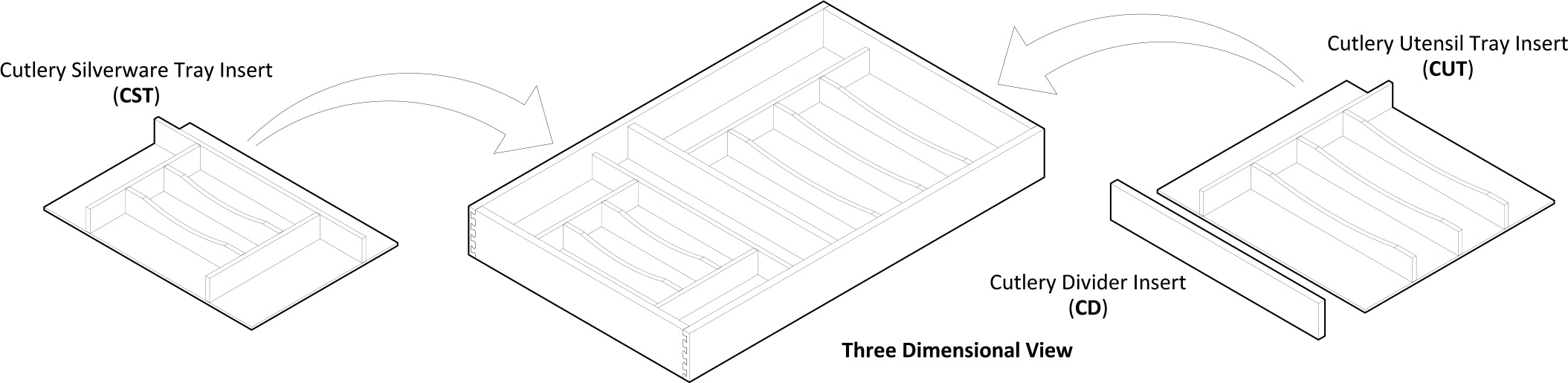

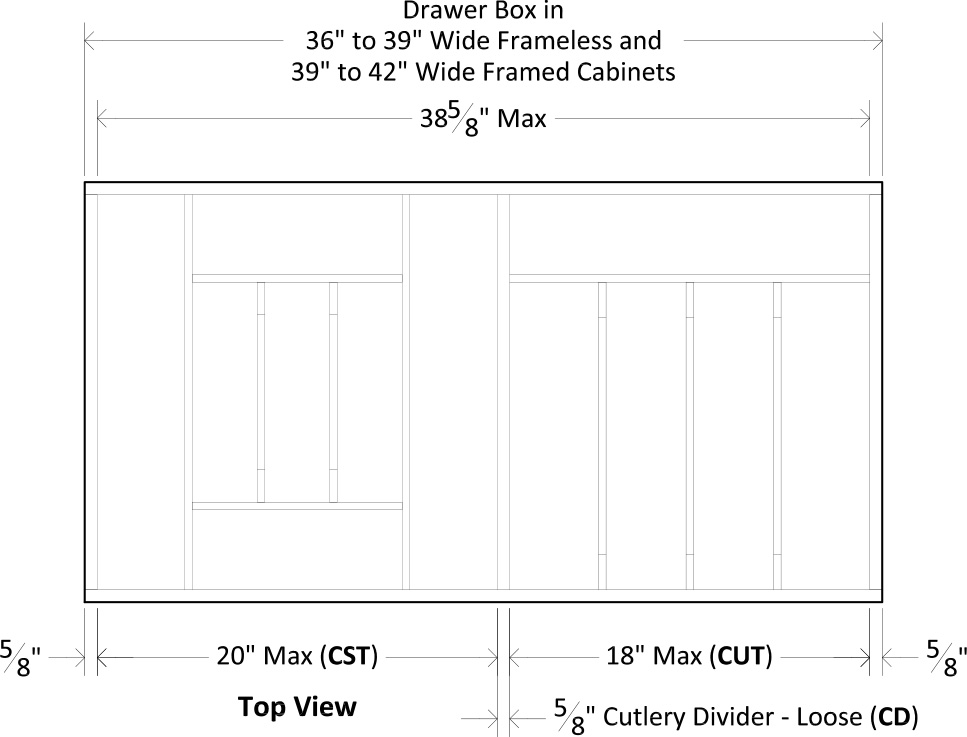

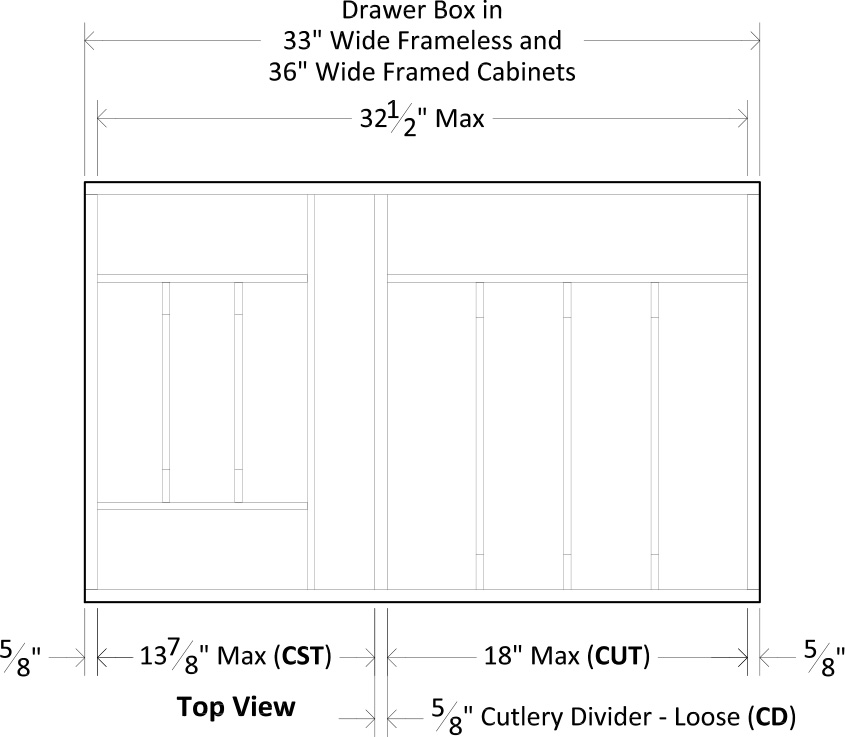

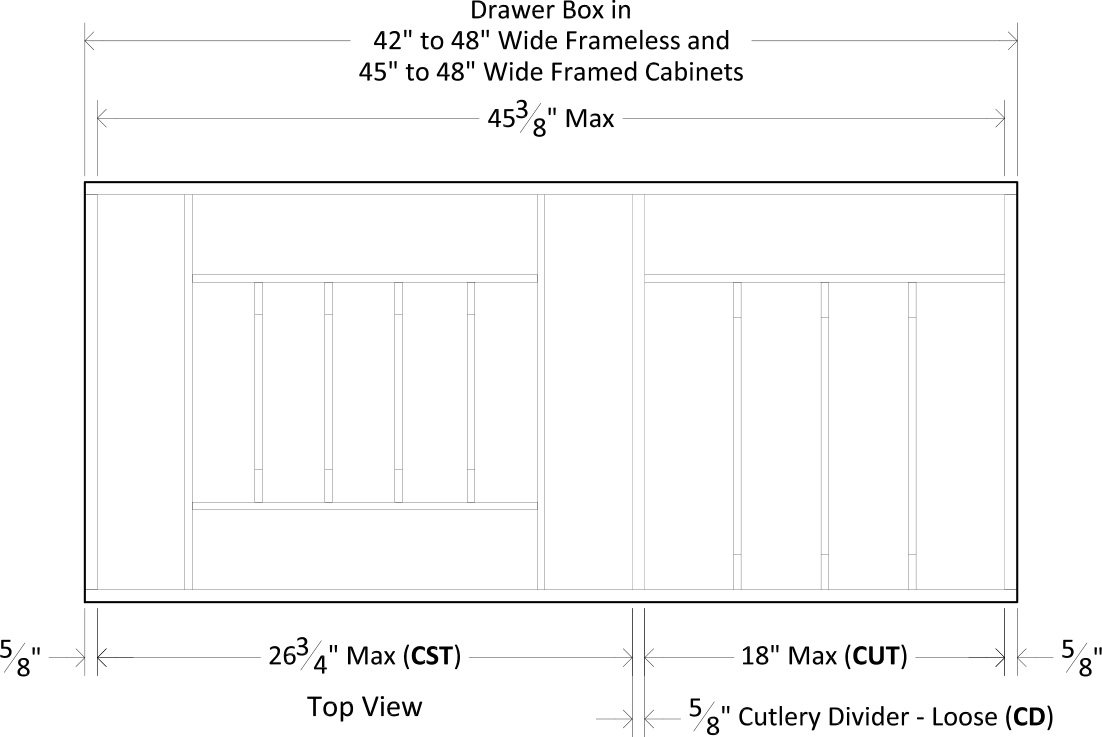

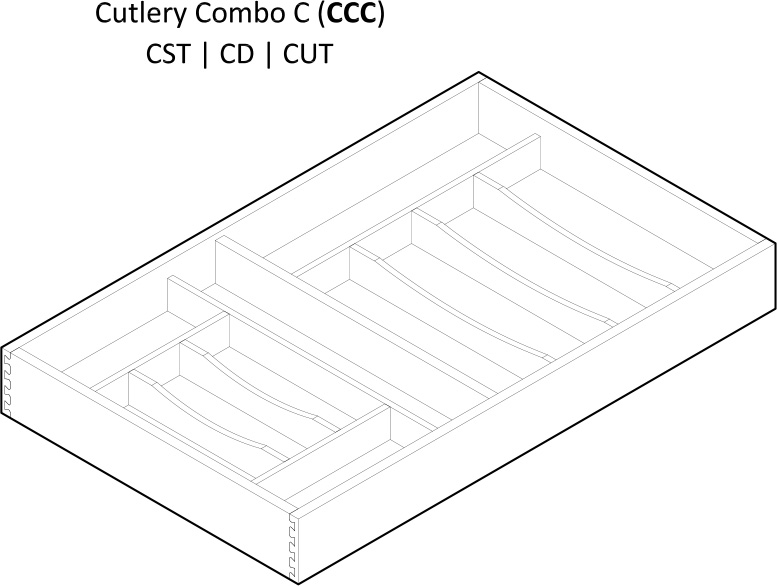

Cutlery Combo C - CST | CD | CUT Inserts (CCC)
Design Notes
- Cutlery Combo C - CST | CD | CUT Inserts (CCC) is Available in Base Cabinet Top Drawers
- Material: Natural Maple
- 5/8" Thick Cutlery Divider - Loose (CD) Between the CST and CUT is Included
- Cut Down Logic: Cutlery Silverware Tray Inserts (CST) are Ordered in Three Widths - 13.875" | 20" | 26.75" - Narrowest Possible is Used and Cut to Fit Drawer Box Interior (Left and Right Ends are to be Cut Down Equally - If Ends would be Less than 2" Wide, Cut One End Off and Trim the Other End to Fit)

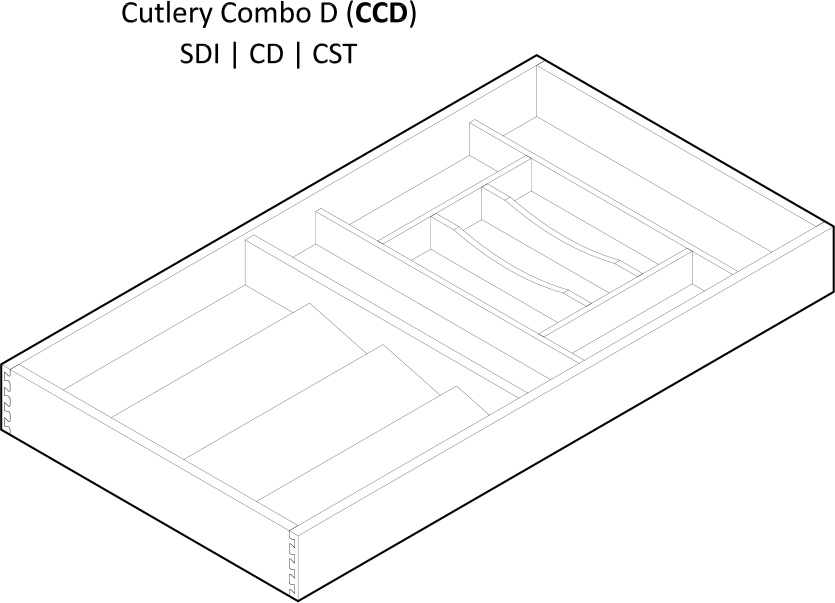

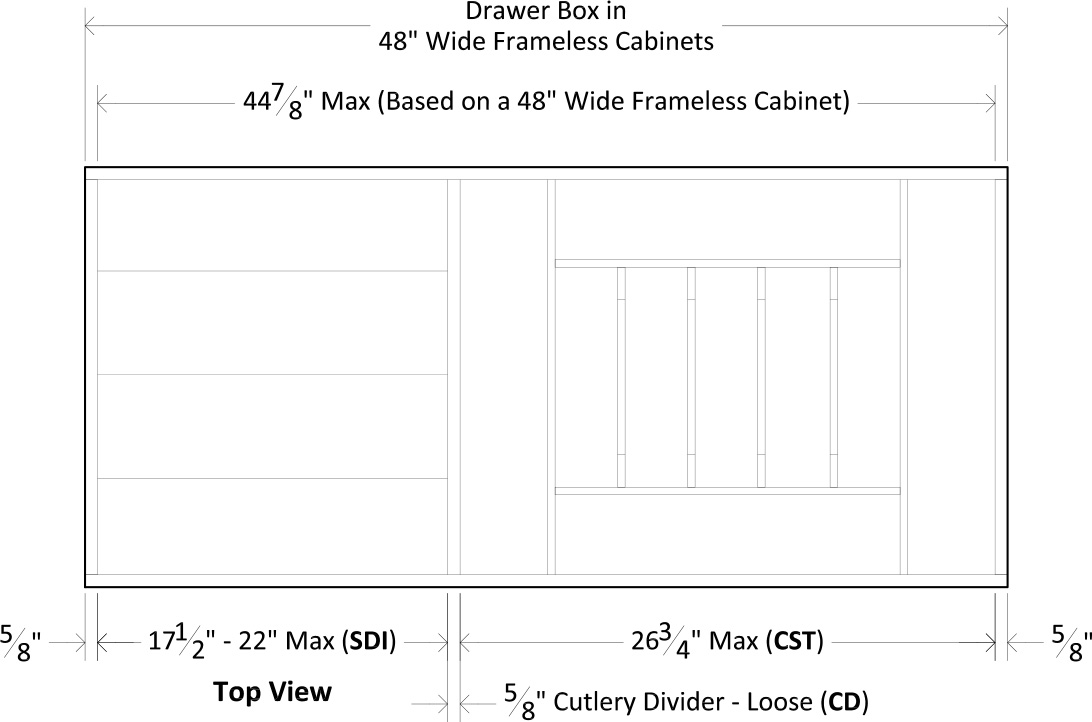

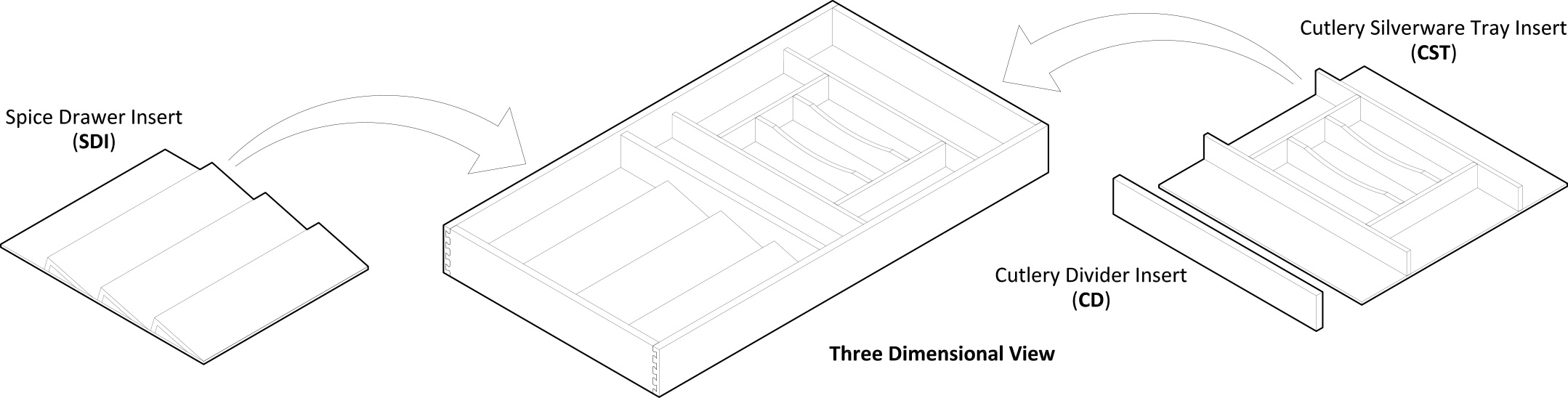

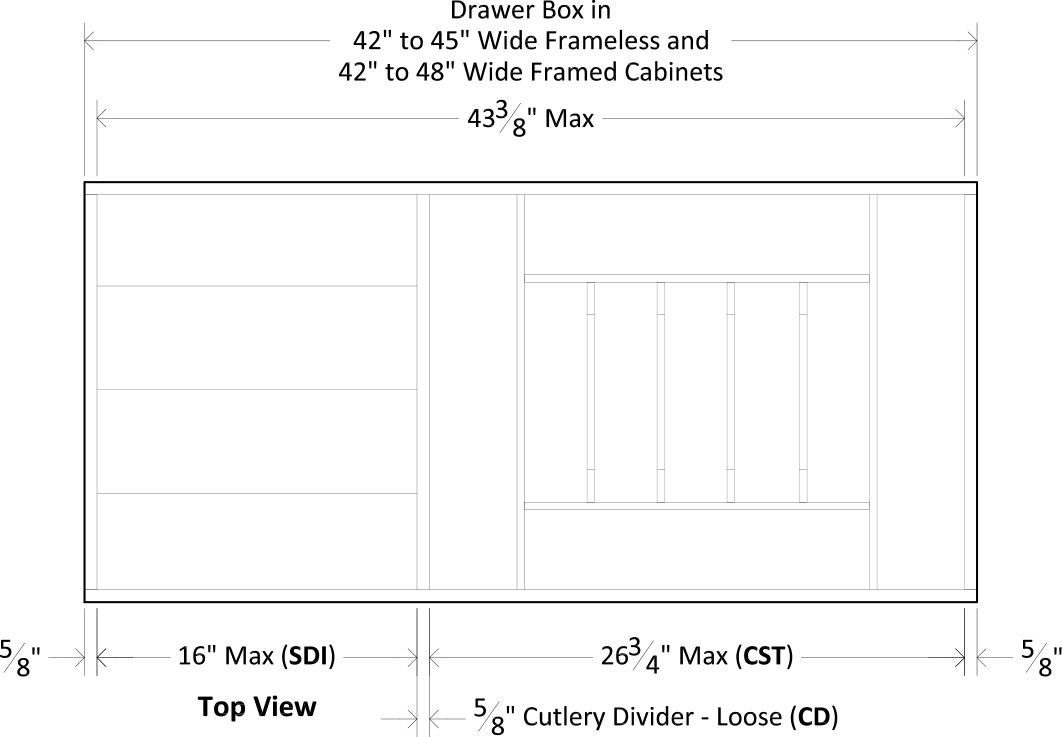

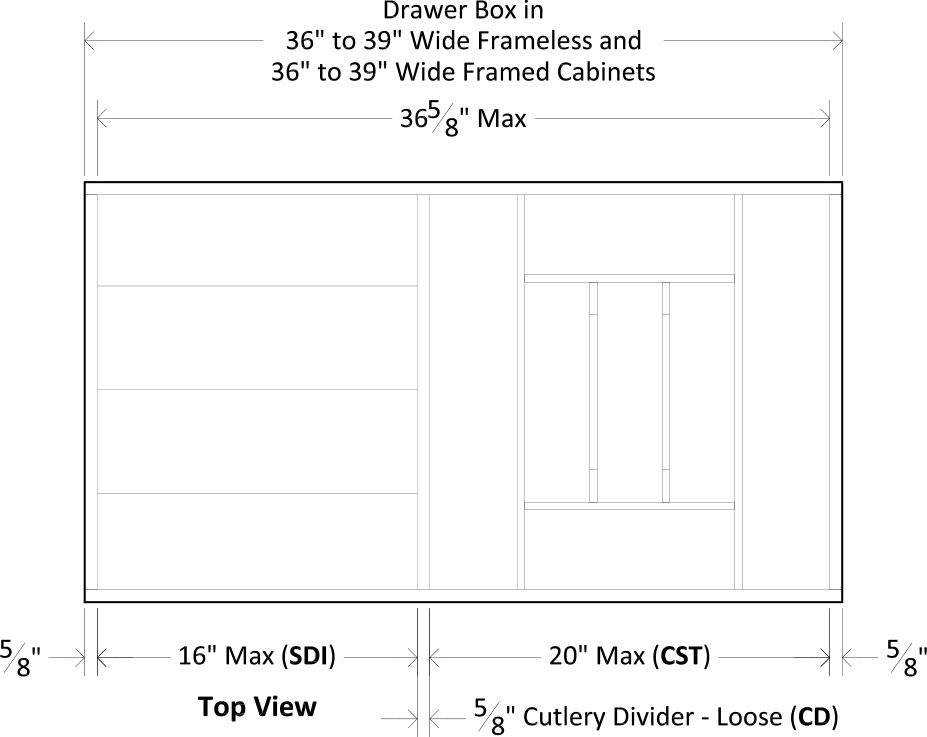

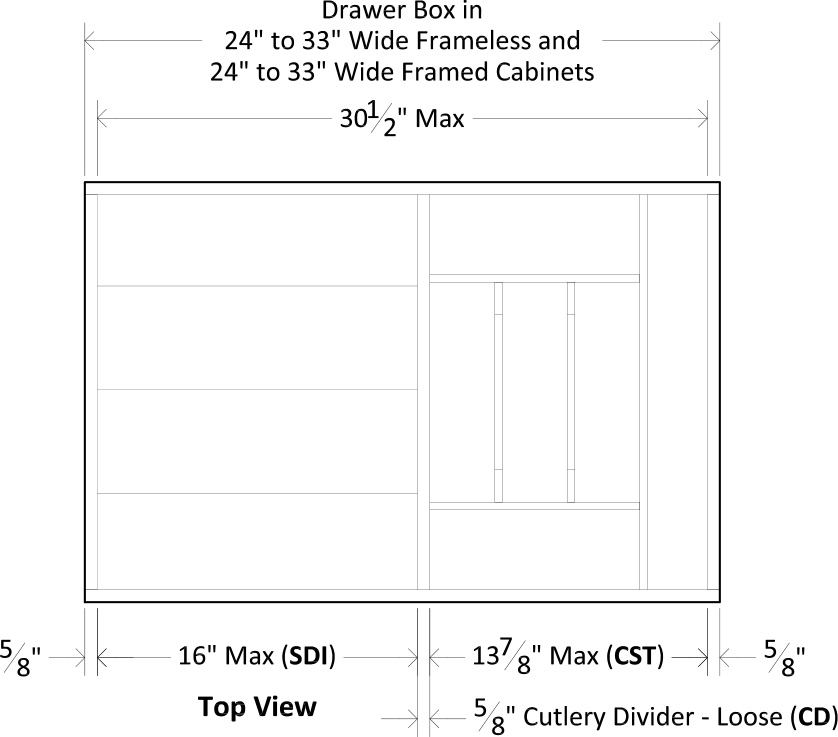

Cutlery Combo D - SDI | CD | CST Inserts (CCD)
Design Notes
- Cutlery Combo D - SDI | CD | CST Inserts (CCD) is Available in Base Cabinet Top Drawers
- Material: Natural Maple
- 5/8" Thick Cutlery Divider - Loose (CD) Between the SDI and CST is Included
- Cut Down Logic: Spice Drawer Inserts (SDI) are Ordered in Two Widths - 16" | 22" - Narrowest Possible is Used and Cut to Fit Drawer Box Interior

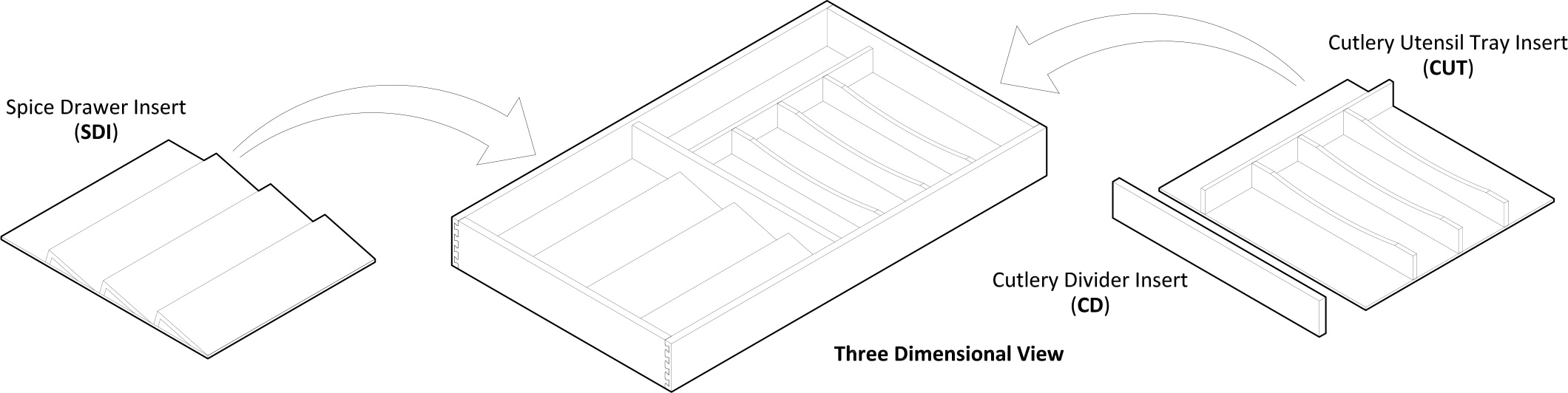

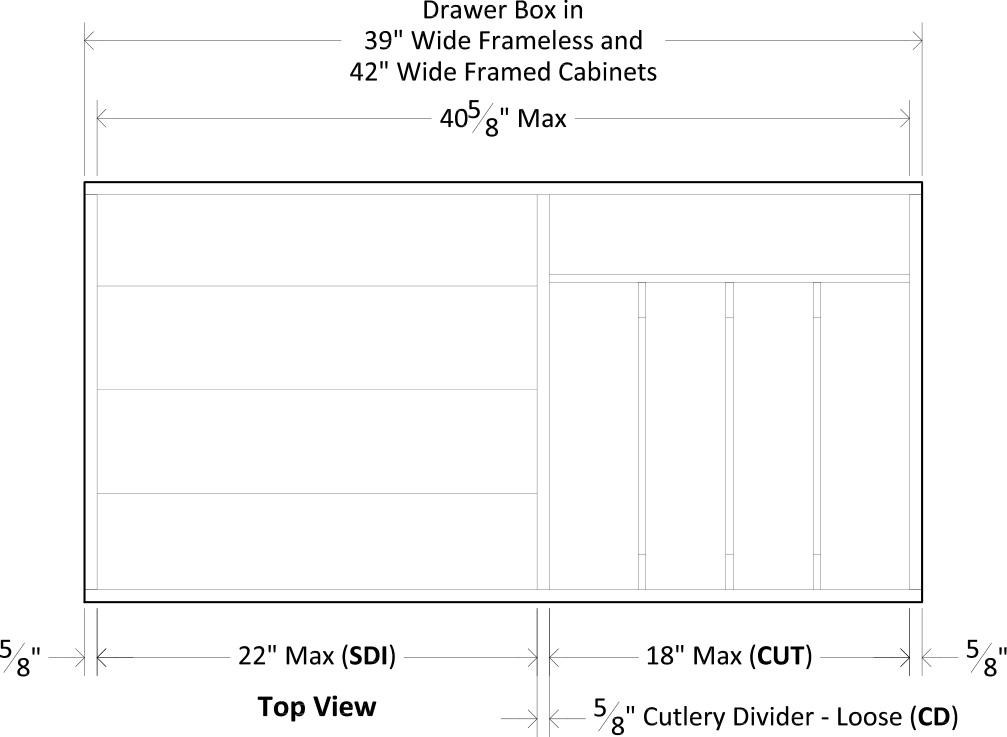

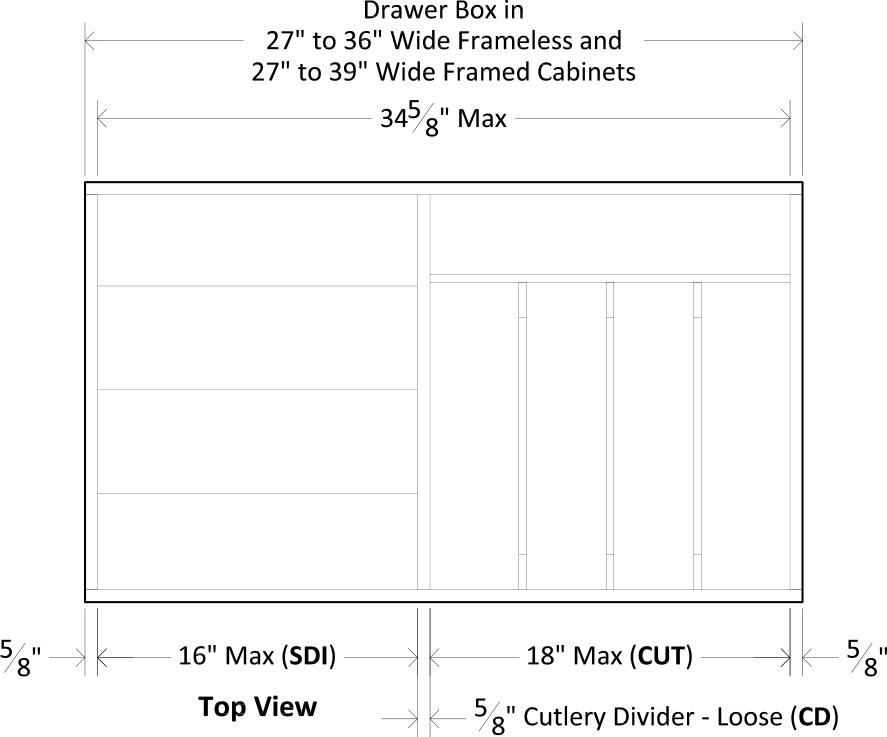

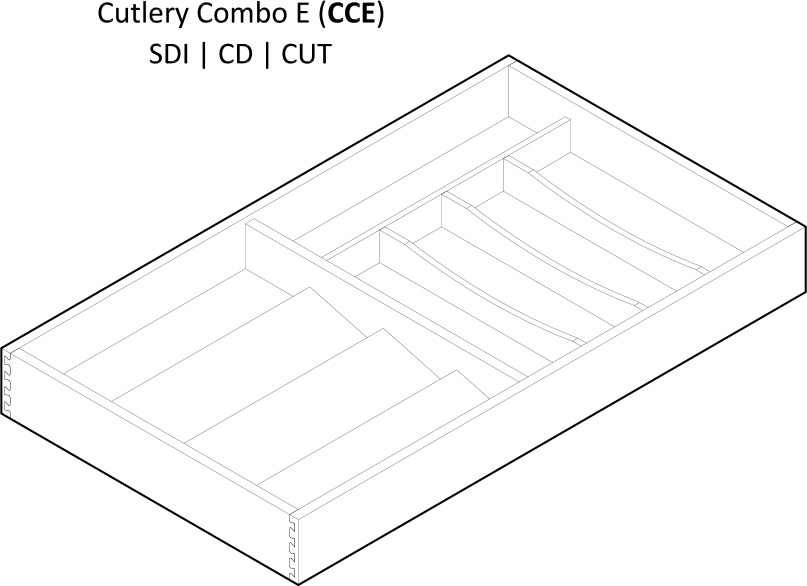

Cutlery Combo E - SDI | CD | CUT Inserts (CCE)
Design Notes
- Cutlery Combo E - SDI | CD | CUT Inserts (CCE) is Available in Base Cabinet Top Drawers
- Material: Natural Maple
- 5/8" Thick Cutlery Divider - Loose (CD) Between the SDI and CUT is Included
- Cut Down Logic: Spice Drawer Inserts (SDI) are Ordered in Two Widths - 16" | 22" - Narrowest Possible is Used and Cut to Fit Drawer Box Interior

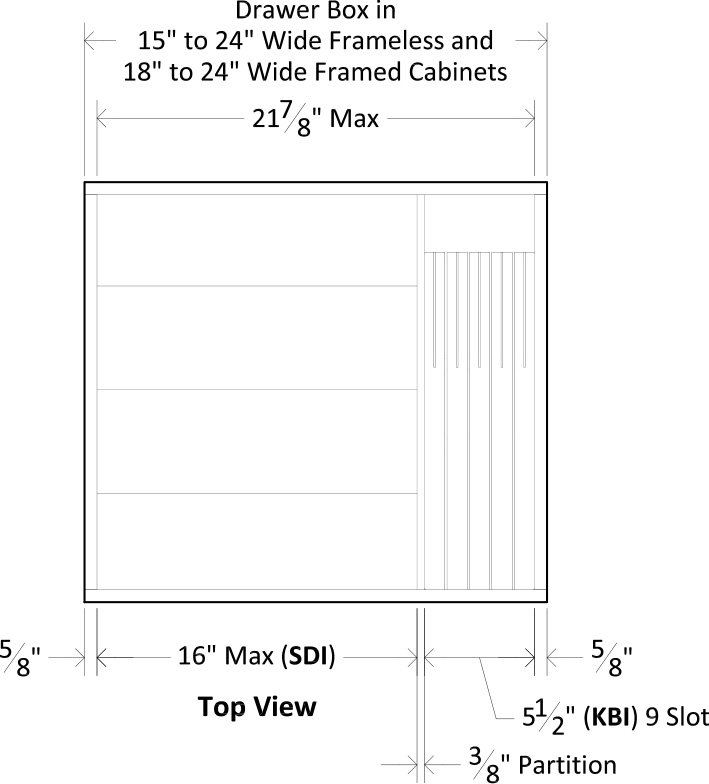

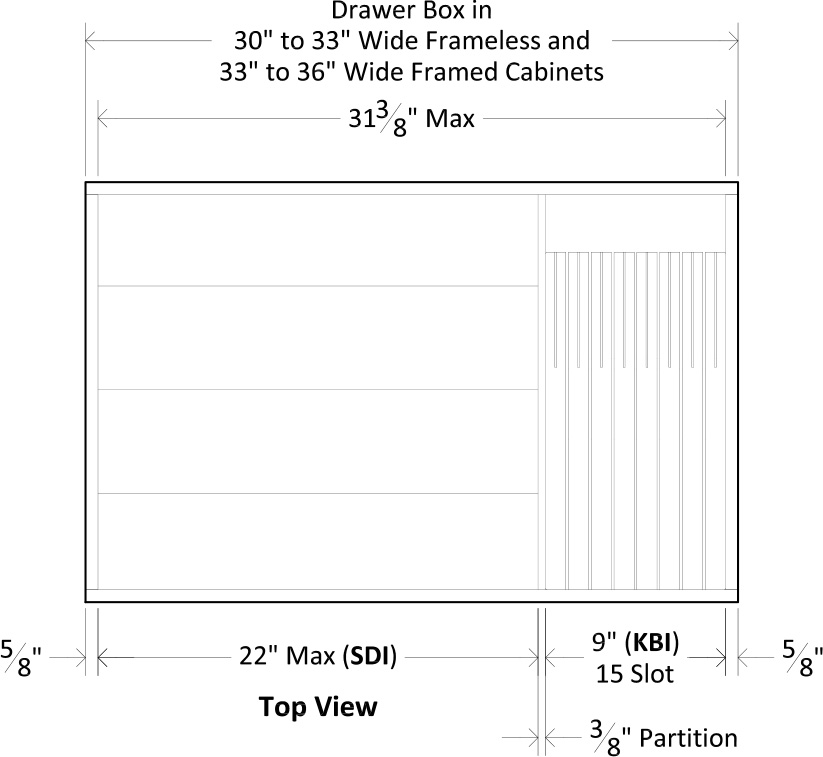

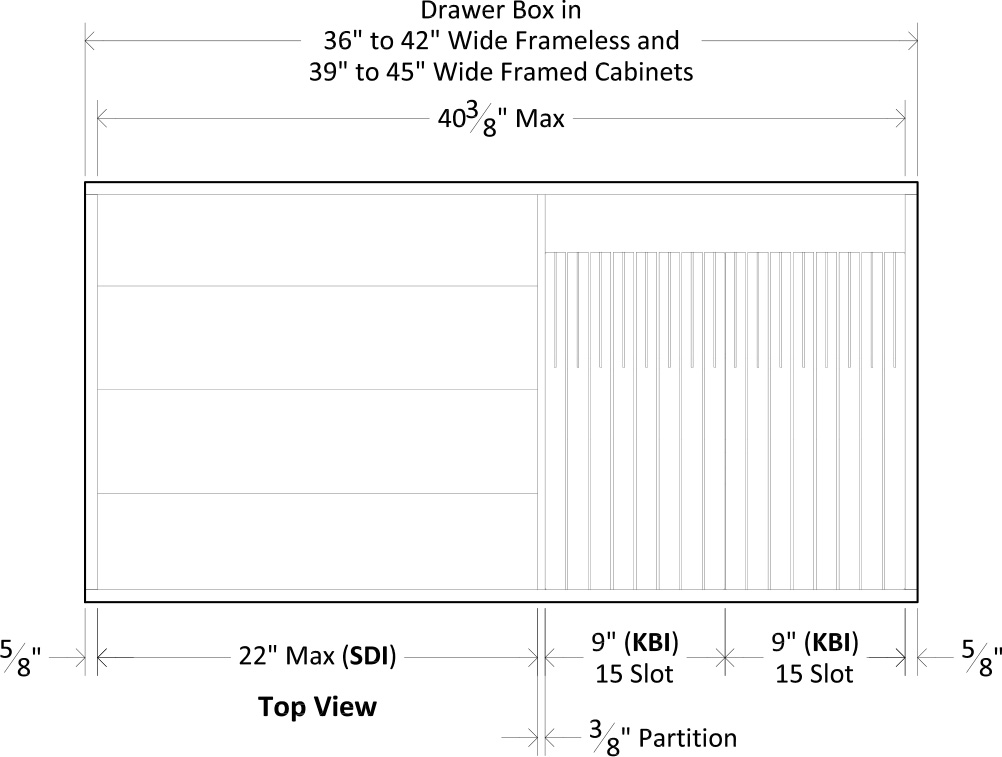

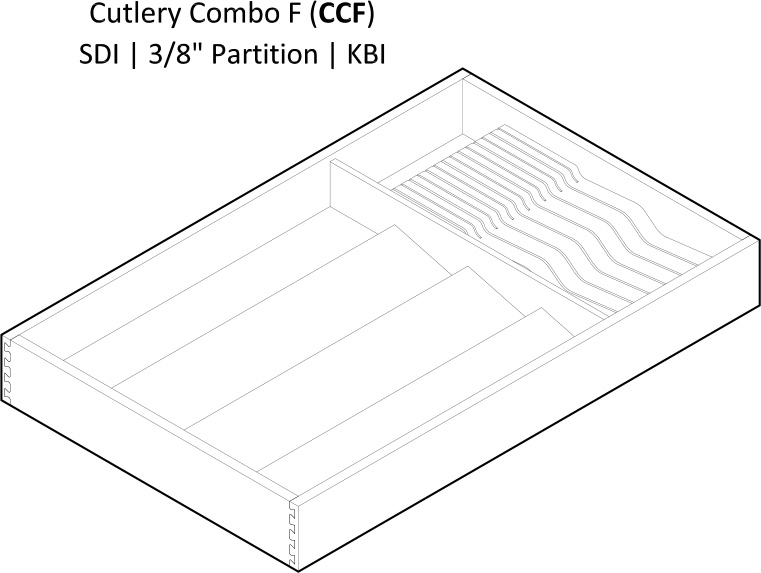

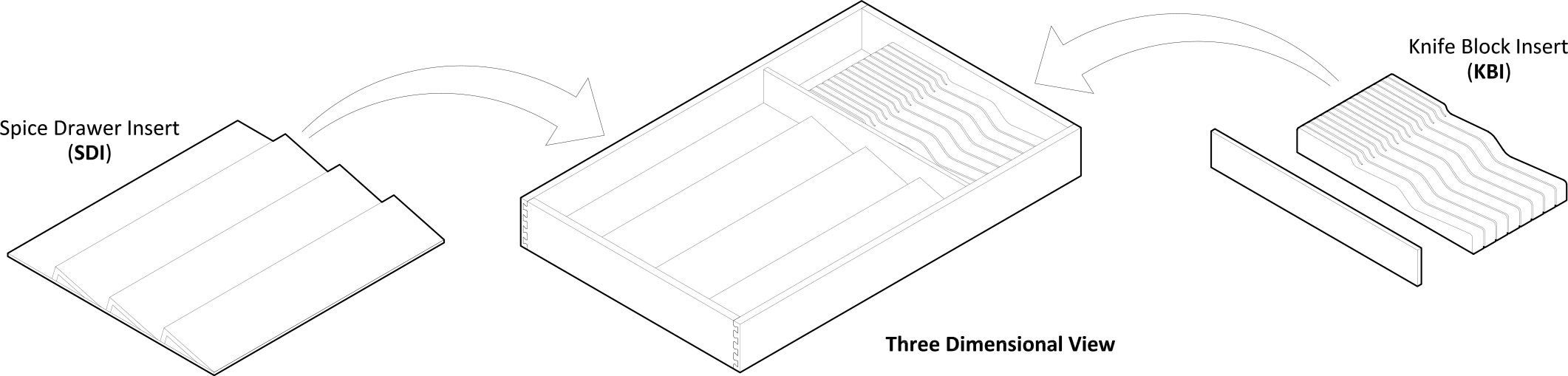

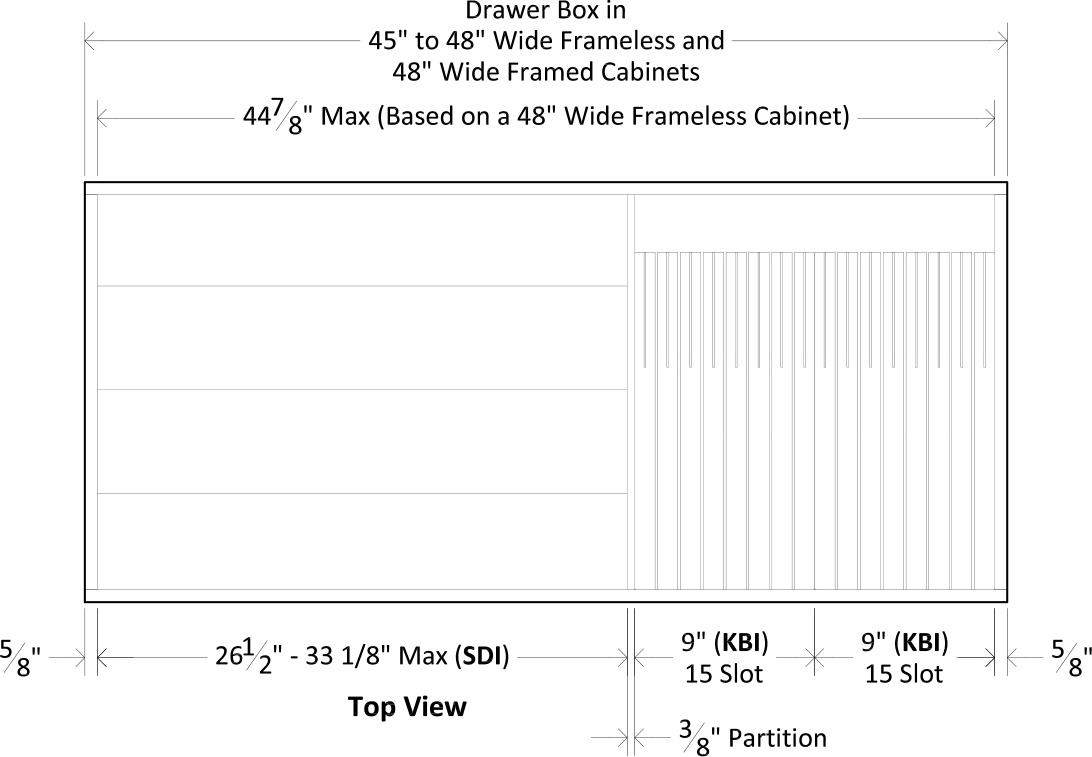

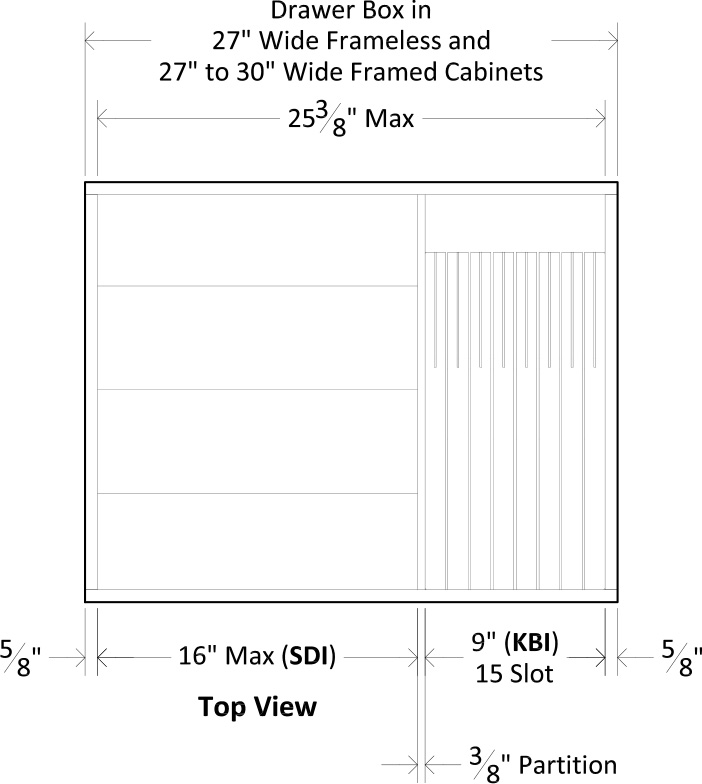

Cutlery Combo F - SDI | KBI Inserts (CCF)
Design Notes
- Cutlery Combo F - SDI | KBI Inserts (CCF) is Available in Base Cabinet Top Drawers
- Material: Natural Maple
- 3/8" Thick Partition Between the SDI and KBI is Included with the KBI from the Supplier
- Cut Down Logic: Spice Drawer Inserts (SDI) are Ordered in Three Widths - 16" | 22" | 33.125" - Narrowest Possible is Used and Cut to Fit Drawer Box Interior
