Wood Top Spec
Painted

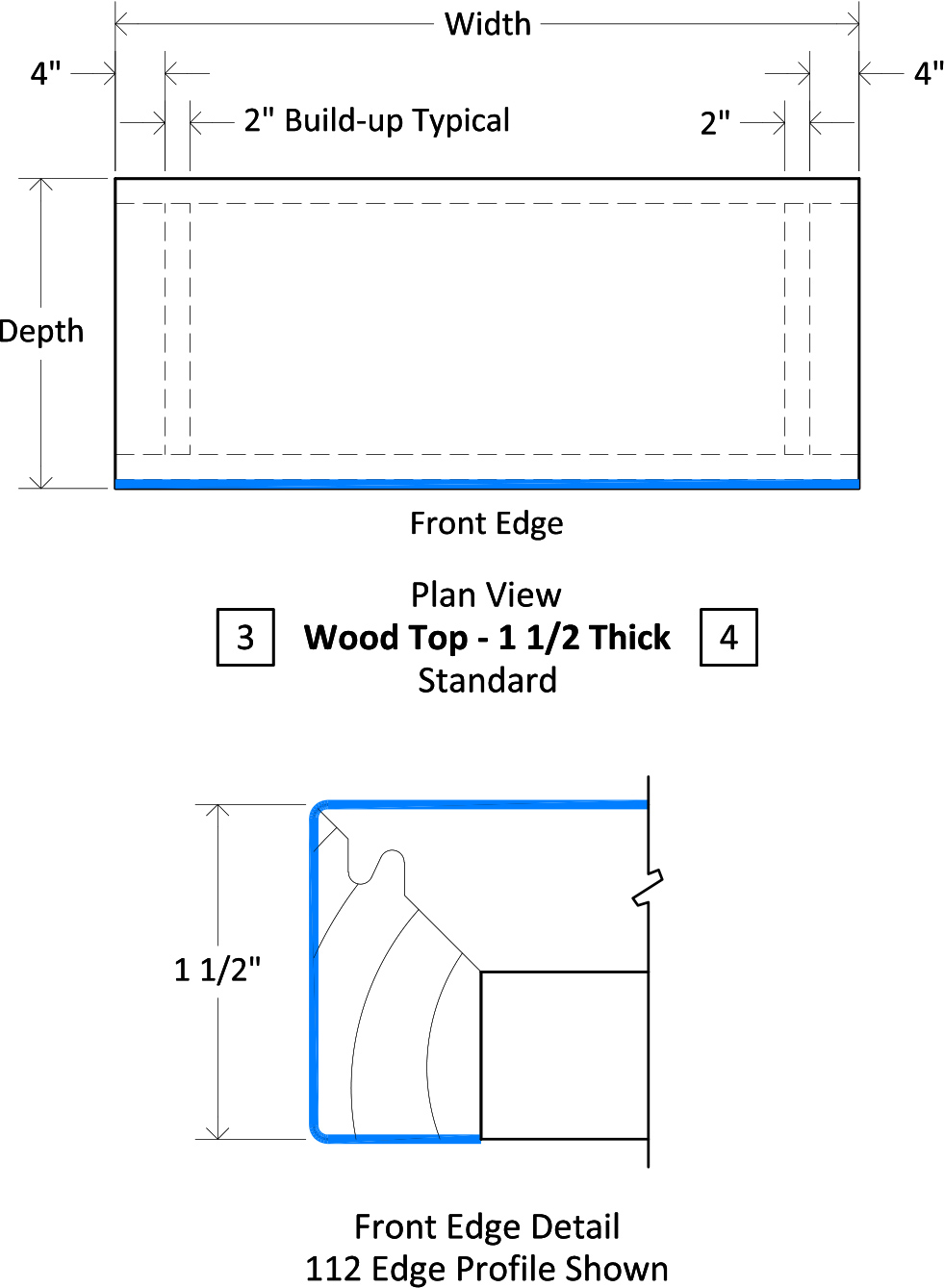

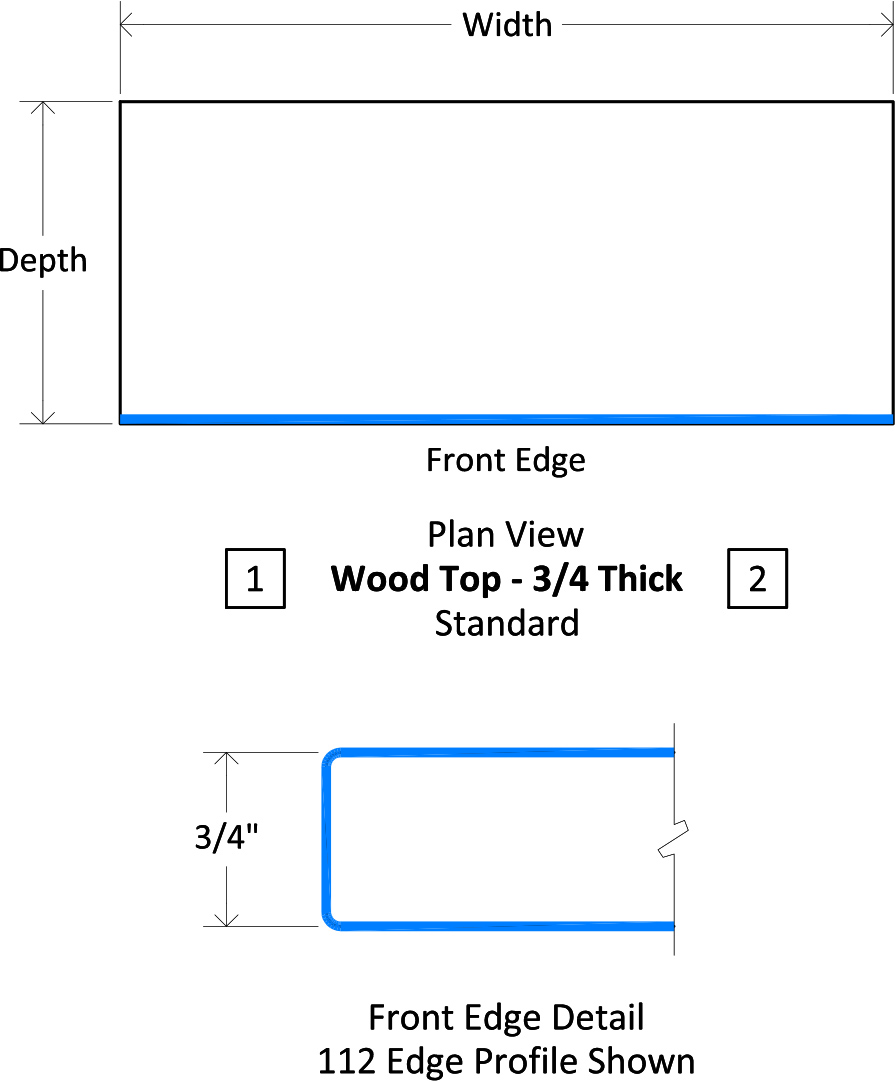

Standard Configurations
No.
Item Codes Shown
Height
Max Width
Max Depth
1
WT96
3/4"
96"
27"
2
WT120
3/4"
120"
27"
3
WT96-1.5
1 1/2"
96"
27"
4
WT120-1.5
1 1/2"
120"
27"
Design Notes
- Finished Top Surface and Front Edge - Bold Blue Lines Indicate Finished Surfaces (Bottom Surface is Finished Approximately 3" Back from Finished Edge(s) but is not Glazed)
- Glaze Runs with the Width of the Wood Top
- Minimum Width is 12"
- Minimum Depth is 10"
- Finish 2 Sides (F2S) Modification Available Only on Wood Top - 3/4 Thick
- See Wood Top Modification Specifications for Available Mods
- See Wood Top Edge Profile Options - 112 | 109 | 108 | 120 | 105

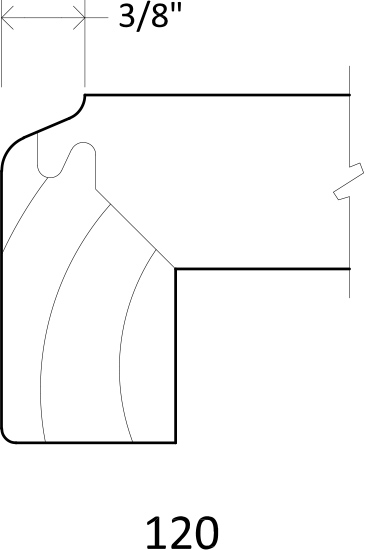

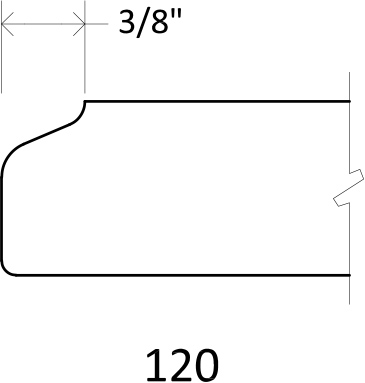

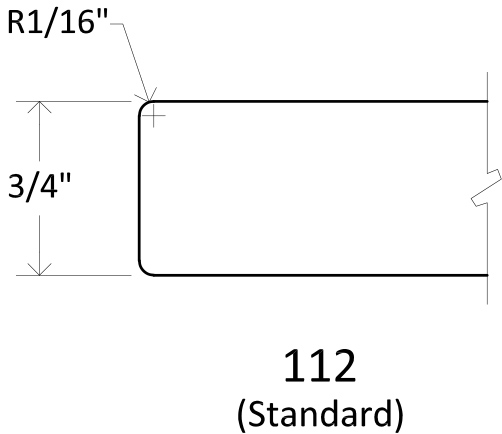

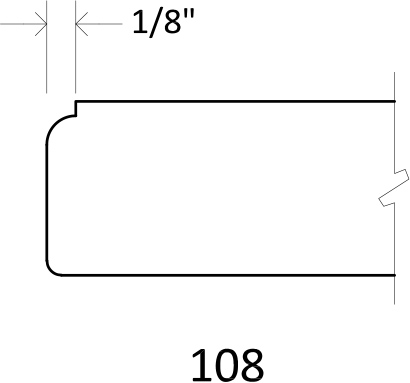

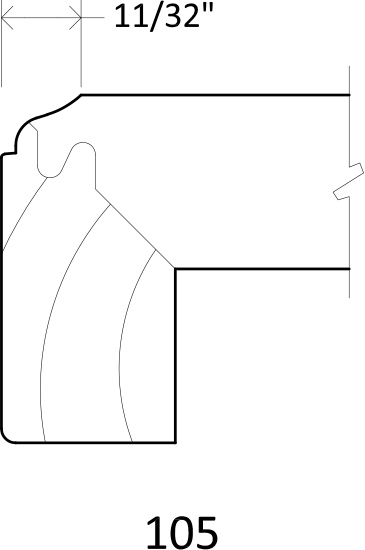

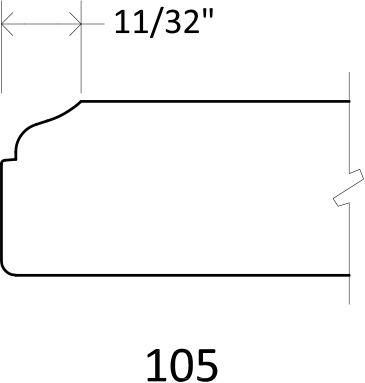

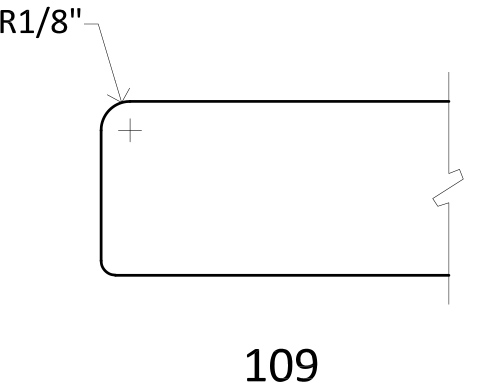

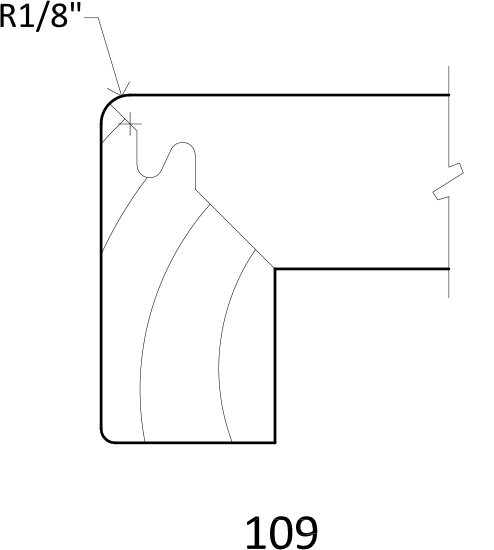

Wood Top Edge Profile Options
| No. | Item Codes Shown | Height | Max Width | Max Depth |
|---|---|---|---|---|
| 1 | WT96 | 3/4" | 96" | 27" |
| 2 | WT120 | 3/4" | 120" | 27" |
| 3 | WT96-1.5 | 1 1/2" | 96" | 27" |
| 4 | WT120-1.5 | 1 1/2" | 120" | 27" |
Design Notes
- Finished Top Surface and Front Edge - Bold Blue Lines Indicate Finished Surfaces (Bottom Surface is Finished Approximately 3" Back from Finished Edge(s) but is not Glazed)
- Glaze Runs with the Width of the Wood Top
- Minimum Width is 12"
- Minimum Depth is 10"
- Finish 2 Sides (F2S) Modification Available Only on Wood Top - 3/4 Thick
- See Wood Top Modification Specifications for Available Mods
- See Wood Top Edge Profile Options - 112 | 109 | 108 | 120 | 105

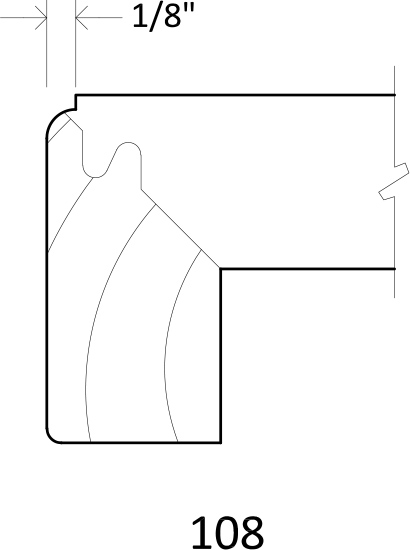

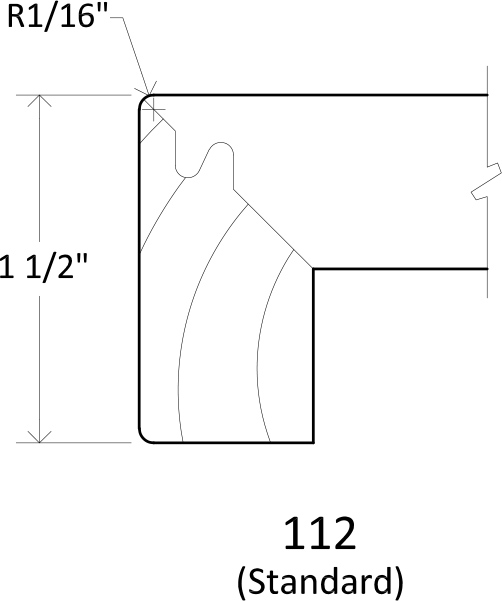

Edge Details of Wood Top - 3/4" and 1 1/2" Thick

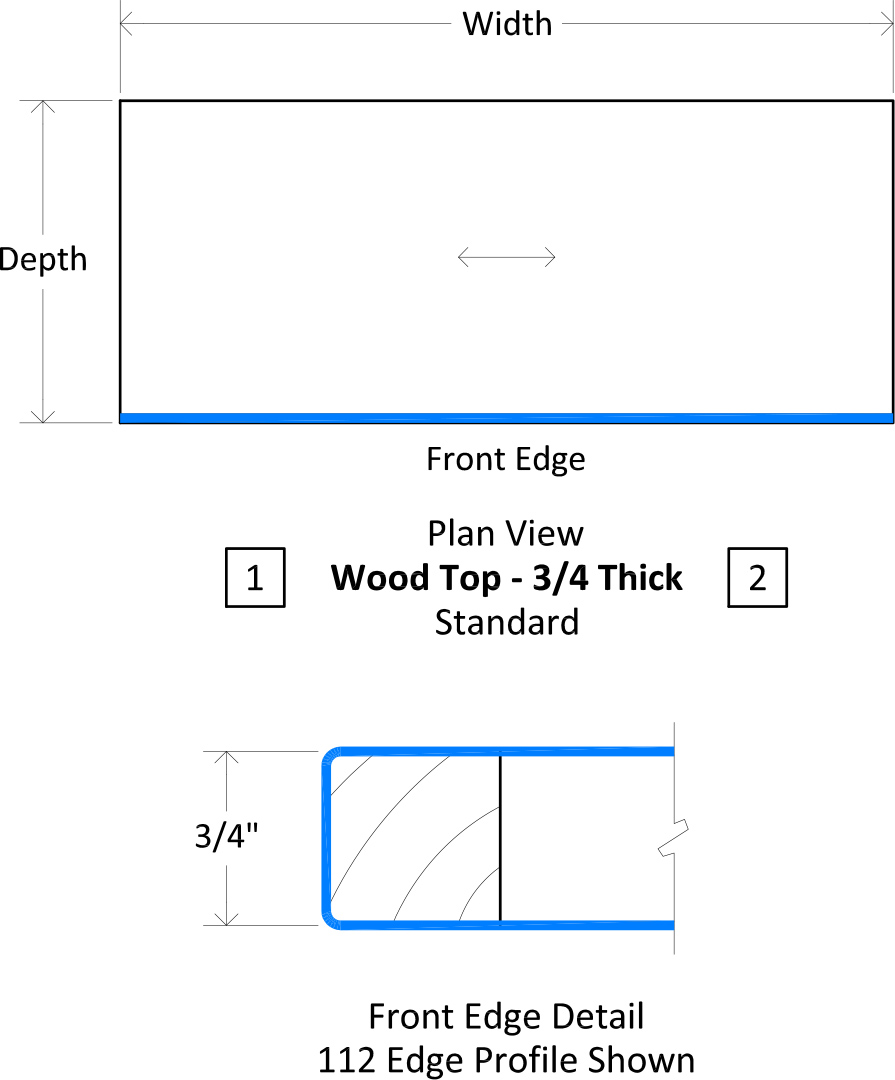

Veneered

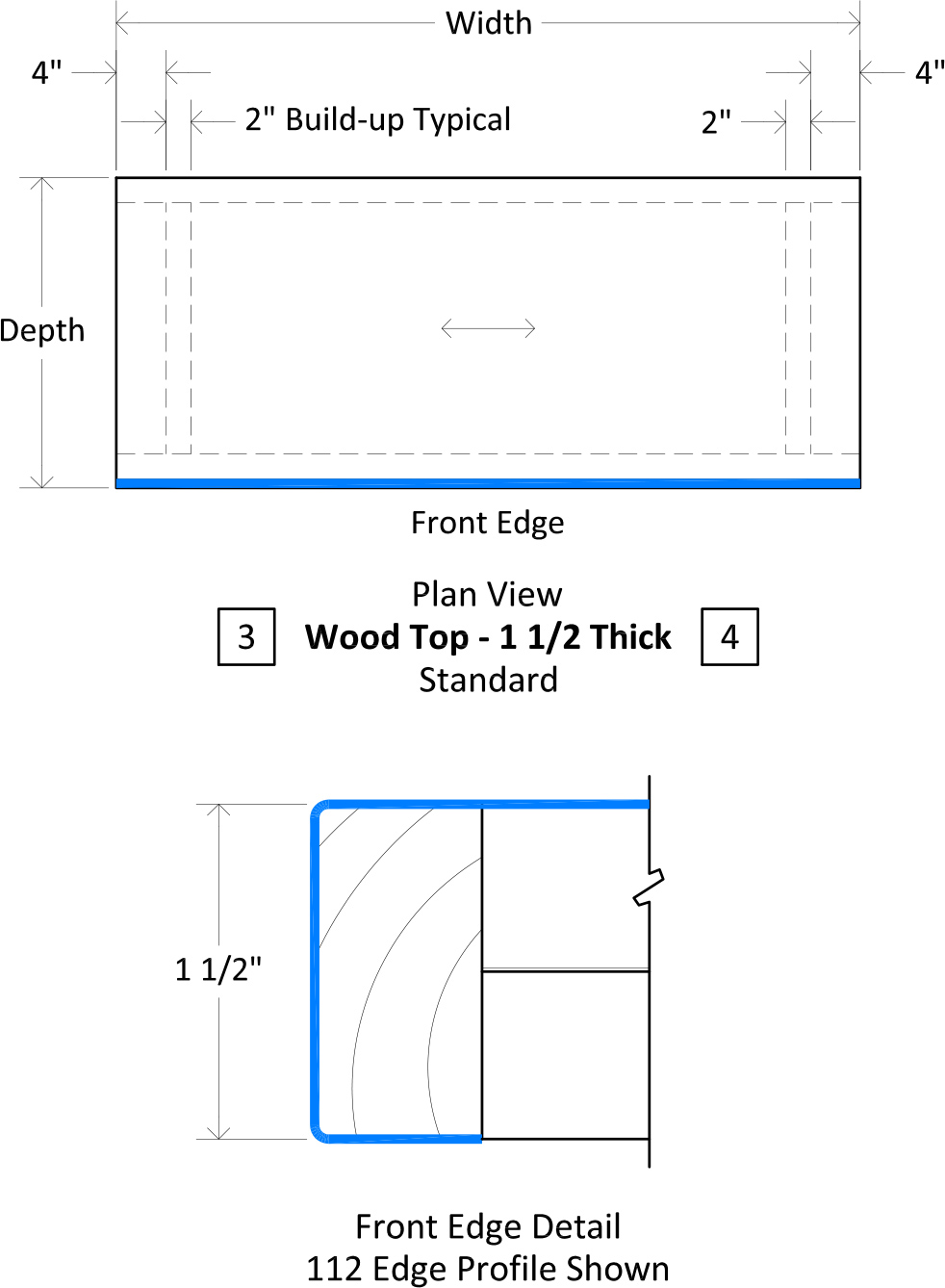

Standard Configurations
No.
Item Codes Shown
Height
Max Width
Max Depth
1
WT96
3/4"
96"
27"
2
WT120
3/4"
120"
27"
3
WT96-1.5
1 1/2"
96"
27"
4
WT120-1.5
1 1/2"
120"
27"
Design Notes
- Finished Top Surface and Front Edge - Bold Blue Lines Indicate Finished Surfaces (Bottom Surface is Finished Approximately 3" Back from Finished Edge(s) but is not Glazed)
- Grain Runs with the Width of the Wood Top
- Minimum Width is 12"
- Minimum Depth is 10"
- Finish 2 Sides (F2S) Modification Available Only on Wood Top - 3/4 Thick
- See Wood Top Modification Specifications for Available Mods
- See Wood Top Edge Profile Options - 112 | 109 | 108 | 120 | 105

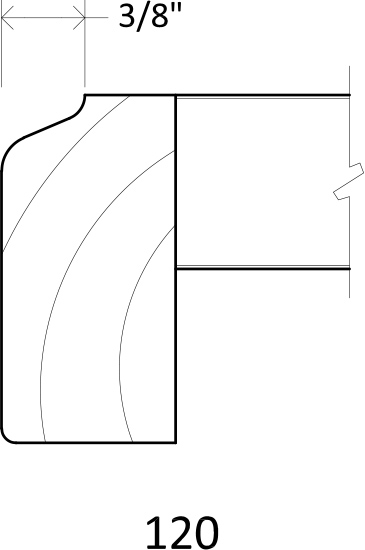

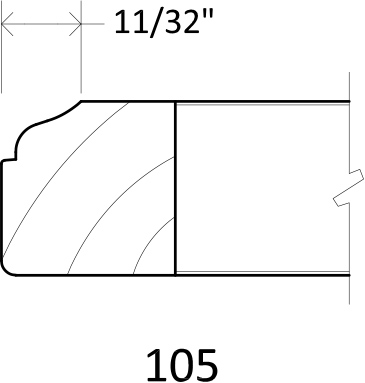

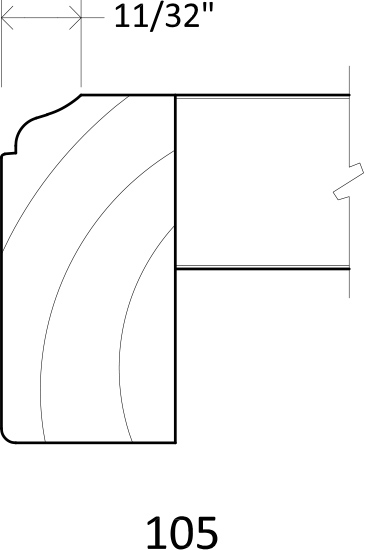

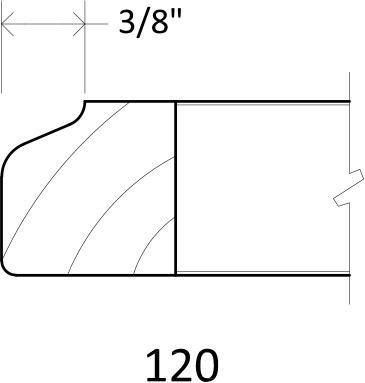

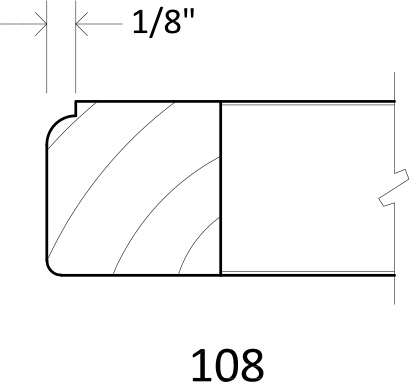

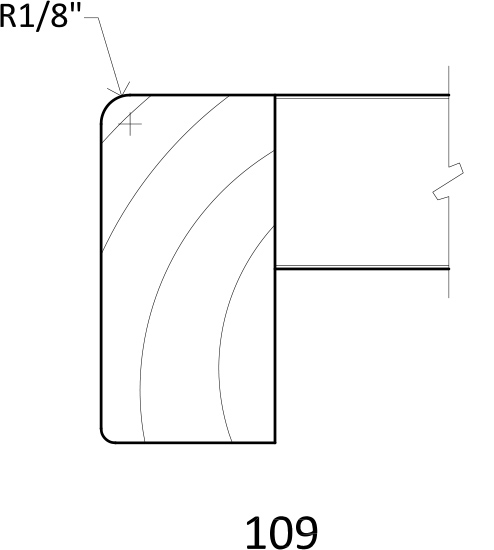

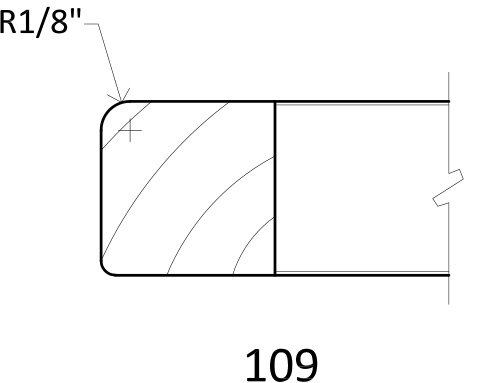

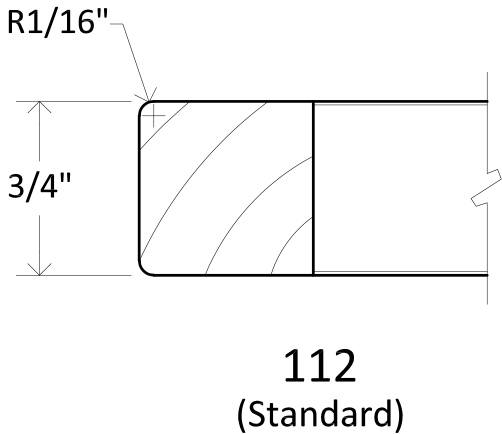

Wood Top Edge Profile Options
| No. | Item Codes Shown | Height | Max Width | Max Depth |
|---|---|---|---|---|
| 1 | WT96 | 3/4" | 96" | 27" |
| 2 | WT120 | 3/4" | 120" | 27" |
| 3 | WT96-1.5 | 1 1/2" | 96" | 27" |
| 4 | WT120-1.5 | 1 1/2" | 120" | 27" |
Design Notes
- Finished Top Surface and Front Edge - Bold Blue Lines Indicate Finished Surfaces (Bottom Surface is Finished Approximately 3" Back from Finished Edge(s) but is not Glazed)
- Grain Runs with the Width of the Wood Top
- Minimum Width is 12"
- Minimum Depth is 10"
- Finish 2 Sides (F2S) Modification Available Only on Wood Top - 3/4 Thick
- See Wood Top Modification Specifications for Available Mods
- See Wood Top Edge Profile Options - 112 | 109 | 108 | 120 | 105

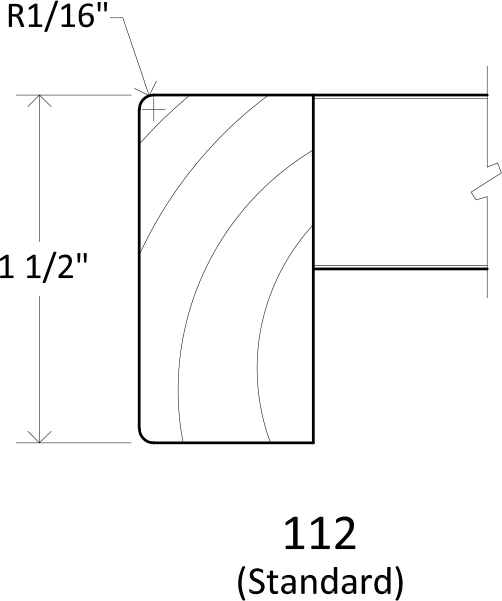

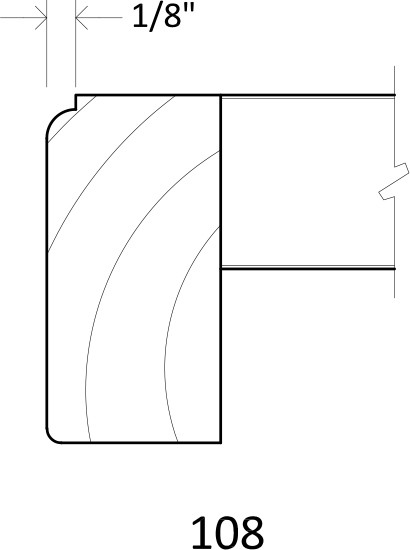

Edge Details of Wood Top - 3/4" and 1 1/2" Thick
